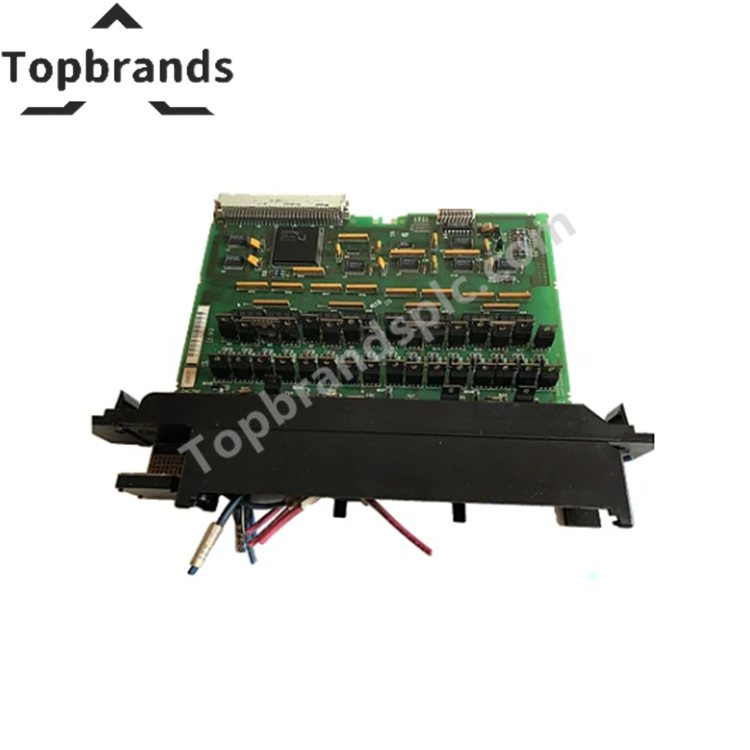

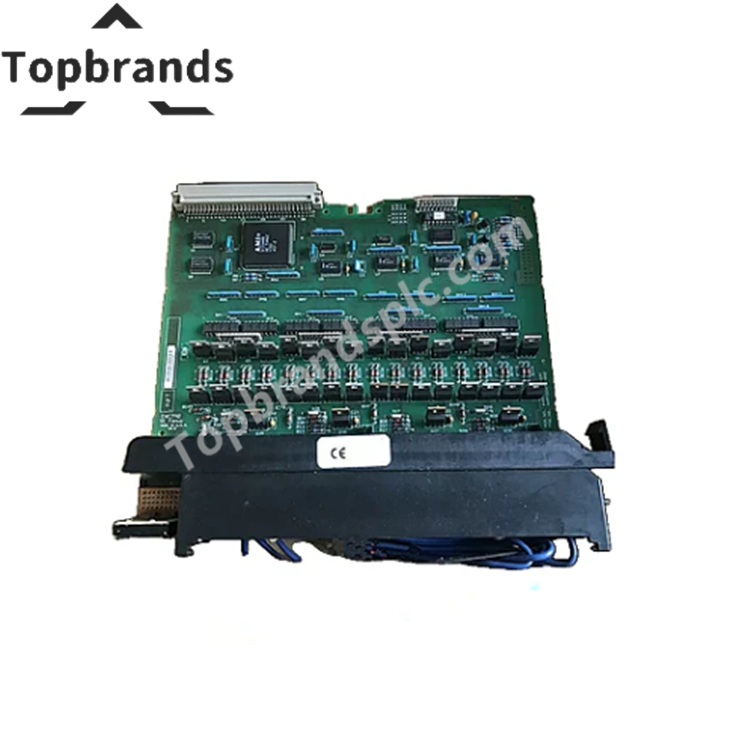

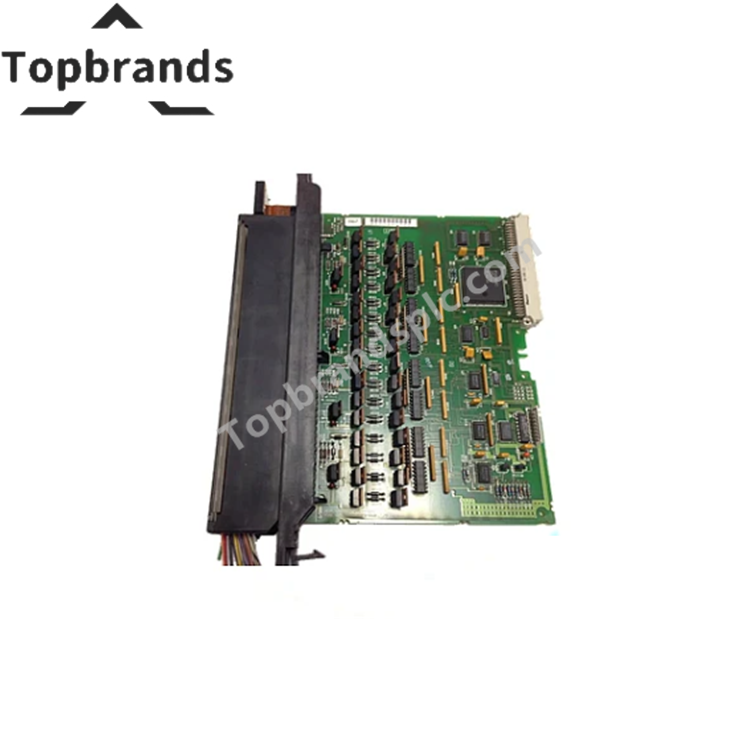

GE IC697MDL740 Discrete Output Module

Description

The GE IC697MDL740 is a high-density discrete output module designed for the Series 90-70 PLC system. It provides reliable control of output signals and is suitable for a wide range of industrial automation applications. This module is engineered for robust performance, making it ideal for demanding environments.

Specifications

• Output Channels: 16 points, organized into four isolated groups of 4 points each.

• Voltage Range: 24 to 48 VDC.

• Current Rating: 2 Amps per point, 4 Amps per group.

• Inrush Current: 20 Amps (maximum) for 20 milliseconds.

• Response Time: 2 milliseconds (maximum) for both ON and OFF states.

• Isolation Voltage: 1500 Volts.

• Power Requirements: 0.15 Amps.

• LED Indicators: Status LEDs for each output point and fuse status.

Features

• High Inrush Capacity: Handles transient currents up to 10 times the rated value, suitable for loads with high inrush characteristics.

• Isolated Groups: Each group of four outputs is individually fused for enhanced safety and reliability.

• Ease of Configuration: Supports software-based configuration without physical jumpers or switches.

• Durable Design: Built to withstand harsh industrial conditions.

• Compatibility: Seamlessly integrates with the Series 90-70 PLC system.
