Phoenix Contact

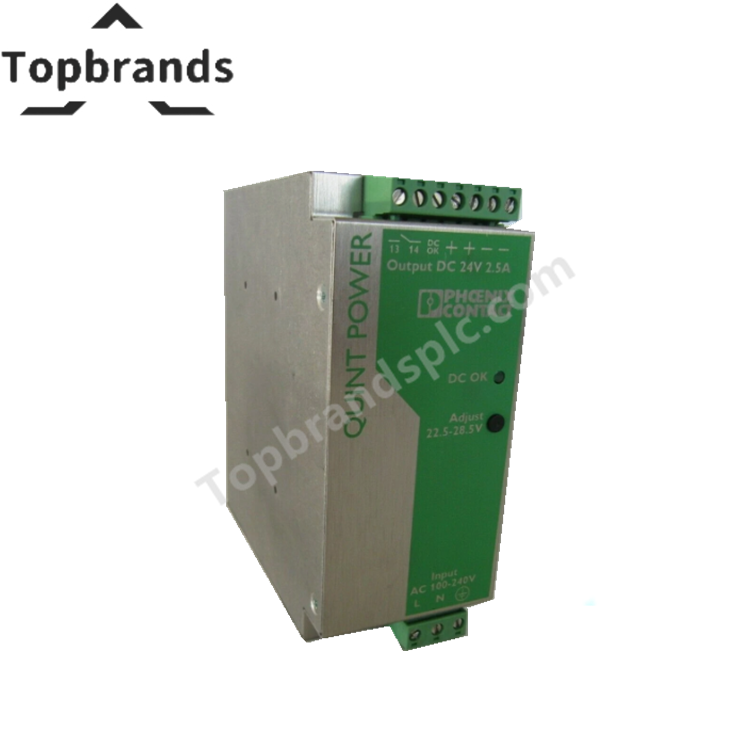

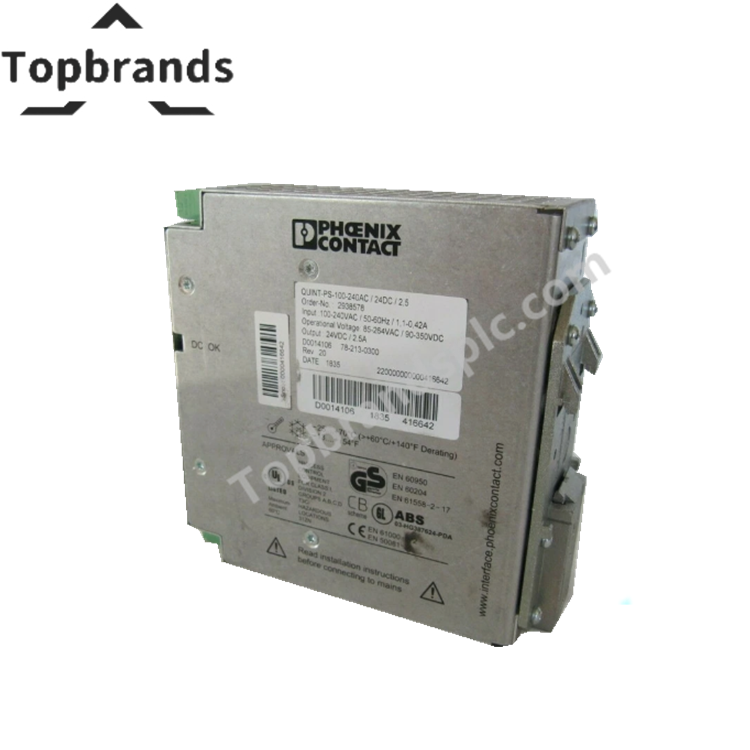

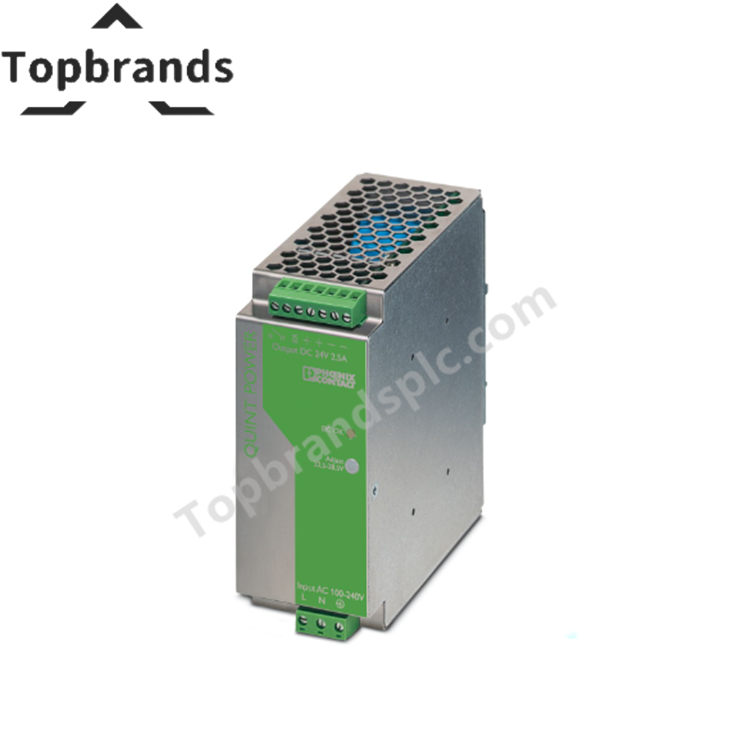

Phoenix Contact QUINT-PS-100-240AC/24DC/2.5 Unit Catu Daya

SKU QUINT-PS-100-240AC/24DC/2.5

  • Part Number:

    QUINT-PS-100-240AC/24DC/2.5

  • Manufacturer:

    Phoenix Contact

  • Condition:

    Brand New & in Stock

  • Product Type:

    Unit Catu Daya

  • Origin:

    Germany

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Sering-seringlah bertanya Bersama

100% Genuine Stock, 24/7 Service

Inquiry

Deskripsi

Phoenix Contact QUINT-PS-100-240AC/24DC/2.5 adalah catu daya rel DIN yang kompak dan efisien tinggi yang dirancang untuk lingkungan industri yang menuntut. Ini memberikan output 24 V DC yang stabil dan mendukung diagnostik lanjutan serta penanganan beban dinamis.

Spesifikasi

  • Rentang Tegangan Masukan: 85–264 V AC / 90–350 V DC

  • Tegangan Masukan Nominal: 100–240 V AC

  • Rentang Frekuensi: 45–65 Hz (AC), 0 Hz (DC)

  • Tegangan Keluaran: 24 V DC ±1%

  • Arus Keluaran: 2,5 A nominal, 3,75 A dengan POWER BOOST

  • Efisiensi: Lebih dari 86%

  • Ripple (Residual): Kurang dari 10 mVPP

  • Kelas Proteksi: IP20, Kelas I dengan koneksi PE

  • Metode Pemasangan: Rel DIN (NS35, EN60715)

  • Dimensi: 55 mm × 130 mm × 125 mm

  • Berat: Sekitar 0,83 kg

  • MTBF: Lebih dari 500.000 jam (IEC 61709)

Fitur

  • Fungsi POWER BOOST: Menyediakan 150% dari arus nominal untuk memulai beban inrush tinggi

  • Kompabilitas Masukan Luas: Menerima masukan AC dan DC untuk instalasi yang fleksibel

  • Monitoring Jarak Jauh: Termasuk output transistor dan kontak relay untuk sinyal DC OK

  • Perlindungan Lonjakan: Varistor terintegrasi untuk penekanan tegangan transient

  • Dukungan Beban Kapasitif: Menangani beban kapasitif tanpa batas tanpa pengurangan daya

  • Keandalan Kuat: Dibuat untuk operasi terus-menerus dalam kondisi industri yang keras

  • Faktor Bentuk Kompak: Menghemat ruang di kabinet kontrol

  • Indikator Status: LED hijau untuk DC OK, plus output sinyal untuk diagnostik

  • Siap Pakai Global: Bersertifikat untuk aplikasi industri internasional
