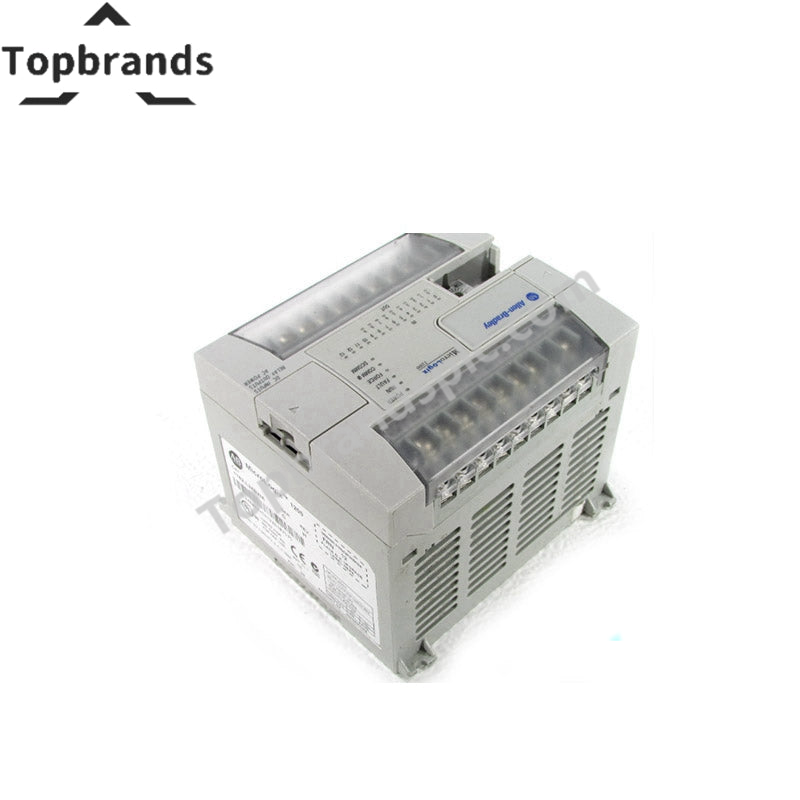

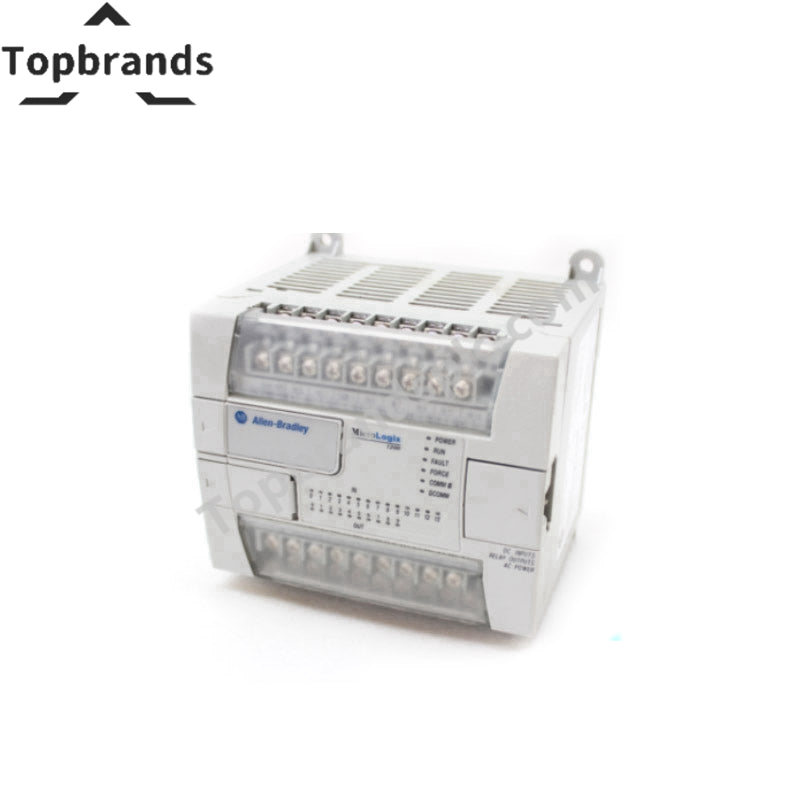

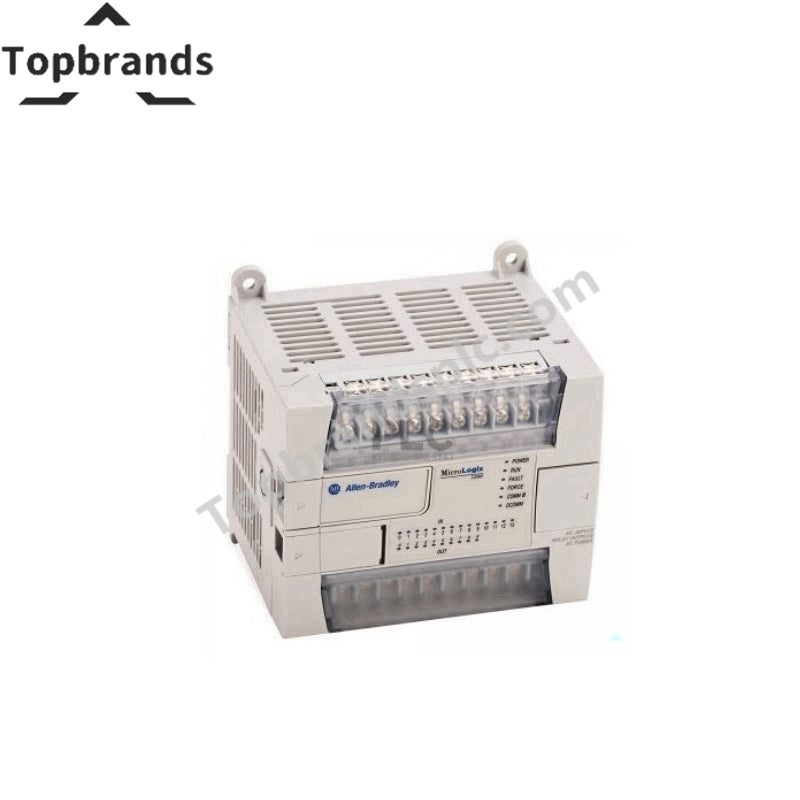

Allen Bradley 1762-L24BXB MicroLogix 1200 Programmable Controller

Description

The 1762-L24BXB is a 24-point controller with 10 standard 24V DC inputs, 4 fast 24V DC inputs, 5 relay outputs, 4 standard 24V DC FET outputs, and 1 fast 24V DC FET output. It operates on 24V DC power and features built-in EEPROM memory for program retention. The module supports multiple communication protocols, ensuring seamless integration into industrial networks.

Specifications

• Model: 1762-L24BXB

• Series: MicroLogix 1200

• Input Type: 24V DC (standard and fast)

• Output Type: Relay & FET (standard and fast)

• Power Supply: 24V DC

• I/O Count: 24 (10 standard inputs, 4 fast inputs, 5 relay outputs, 4 standard FET outputs, 1 fast FET output)

• Memory: Built-in EEPROM for program retention

• Operating Temperature: 0°C to 55°C

Features

• Compact Design: Ideal for space-constrained industrial applications.

• Flexible I/O Configuration: Supports multiple input and output types.

• Built-in EEPROM Memory: Ensures program retention without battery backup.

• High-Speed Processing: Optimized for fast execution of control logic.

• Multiple Communication Protocols: Enables seamless integration with industrial networks.
