Bently Nevada | 3500/93 | 135799-01 | Displey interfeysi moduli

SKU 135799-01

  • Part Number:

    135799-01

  • Manufacturer:

    Bently Nevada

  • Condition:

    Brand New & in Stock

  • Product Type:

    Displey interfeysi moduli

  • Origin:

    USA

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Birgalikda tez-tez so'rang

100% Genuine Stock, 24/7 Service

Inquiry

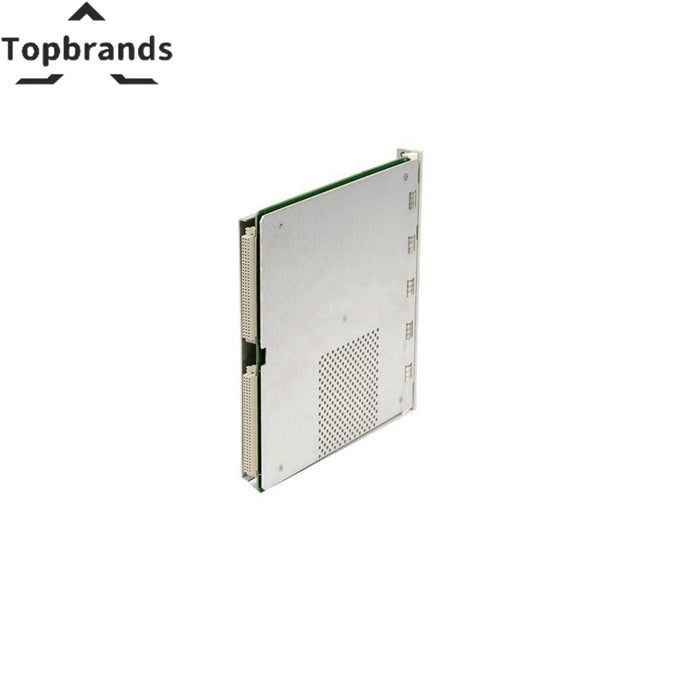

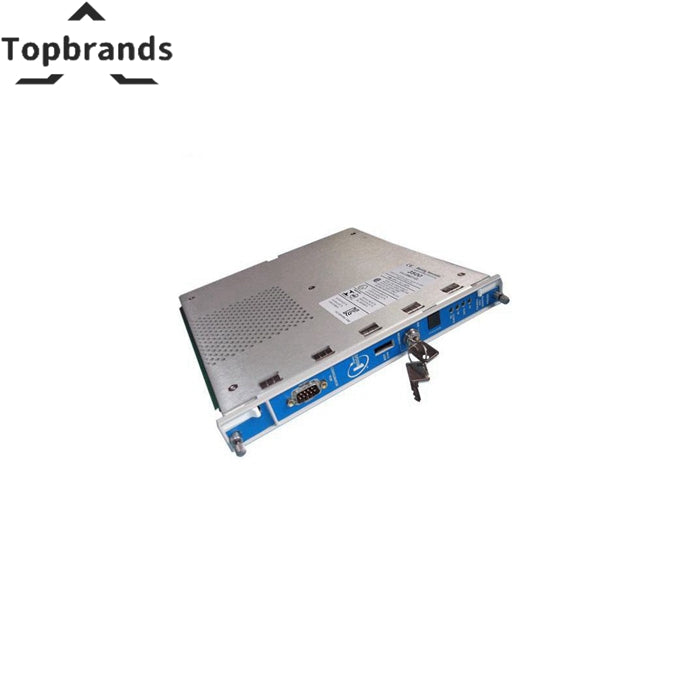

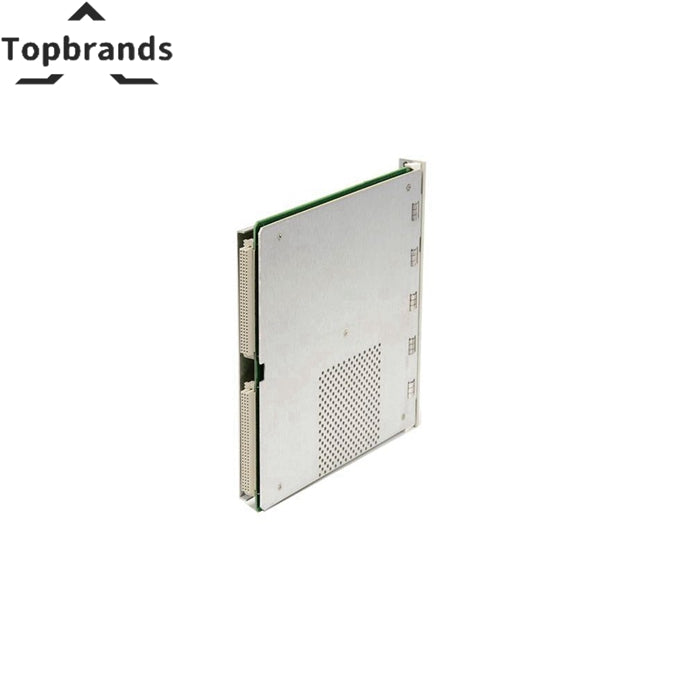

Bently Nevada 3500/93 135799-01 displey interfeysi moduli

Bently Nevada 135799-01 qurilmasi, shuningdek 3500/93 nomi bilan kataloglashtirilgan Displey interfeysi moduli bo‘lib, Bently Nevada 3500 mashinalarni himoyalash tizimida displey bilan aloqa va tizim ma’lumotlarini taqdim etish uchun mo‘ljallangan maxsus apparat komponenti sifatida ishlaydi. Modul RS-422 aloqa interfeysi orqali stend holati, signalizatsiya ma’lumotlari va mashinalarni monitoring qilish ma’lumotlarini 3500 stendi bilan tizim displeyi o‘rtasida uzatadi.

Apparat texnik xususiyatlari

Parametr Texnik xususiyat
Model 135799-01
Brend Bently Nevada
Mahsulot turi Displey interfeysi moduli
Seriya 3500/93 tizim displeyi
O‘lchamlari 241.3 mm x 24.4 mm x 241.8 mm
Og‘irligi 0.82 kg
Stenddagi slot bandligi 1 slot
Old panelga o‘rnatish talabi 15-slot (eng chetdagi o‘ng slot)
Quvvat sarfi Maksimal 15.5 W (displey bloki va DIM birgalikda)
Quvvat manbai 3500 stendi orqa paneli
Ma’lumotlarni yangilash tezligi Odatda 1 soniya
Aloqa interfeysi RS-422
Qo‘llab-quvvatlanadigan protokollar Bently Nevada xususiy protokoli, Modbus RTU
To‘g‘ridan-to‘g‘ri kabel masofasi 100 futgacha
Kengaytirilgan kabel masofasi Tashqi quvvat manbai va kabel adapteri bilan 4000 futgacha
Ishlash namligi Maksimal 95%, kondensatsiyasiz
Standartlarga muvofiqligi API 670

Tirqishni tekshirish va mashina ma’lumotlarini uzatish

3500/93 Displey interfeysi moduli 3500 monitoring stendi va displey quyi tizimi o‘rtasidagi aloqa shlyuzi sifatida ishlaydi. O‘lchov qiymatlari, signalizatsiya holatlari, stend diagnostikasi va kanallar holati haqidagi ma’lumotlar modul orqali uzatiladi hamda odatda 1 soniyalik intervalda yangilanadi.

Mashinalarni himoyalash tizimlarida displeyda ko‘rsatiladigan qiymatlar tebranish, tirak holati, radial holat va o‘rnatilgan monitoring modullari hosil qiladigan boshqa parametrlarni o‘z ichiga olishi mumkin. Modbus RTU bilan integratsiya Bently Nevada’ning mahalliy aloqa arxitekturasi bilan moslikni saqlagan holda tashqi nazorat tizimlari bilan aloqani qo‘llab-quvvatlaydi.

Ko‘p beriladigan savollar

S: 135799-01 uchun nechta stend sloti kerak?
J: Displey interfeysi moduli to‘liq o‘lchamli 3500 stendida bitta bo‘sh slotni talab qiladi.

S: Old panelga o‘rnatiladigan displeylar uchun maxsus o‘rnatish joyi kerakmi?
J: Ha. Displey stend ustiga old paneldan o‘rnatilganda, modul 15-slotga o‘rnatilishi kerak.

S: Qaysi aloqa protokollari qo‘llab-quvvatlanadi?
J: Modul RS-422 interfeysi orqali Bently Nevada’ning xususiy aloqa protokoli va Modbus RTU’ni qo‘llab-quvvatlaydi.

Joyida o‘rnatish bo‘yicha ko‘rsatmalar

  • O‘rnatishdan oldin 135799-01 ehtiyot qism raqamini tekshiring.
  • Stendning 3500/93 tizimiga mosligini tasdiqlang.
  • Modulni stenddagi bo‘sh slotga o‘rnating.
  • Old panelga o‘rnatiladigan displey konfiguratsiyalari uchun 15-slotdan foydalaning.
  • Modulni orqa panel konnektoriga to‘liq joylashtiring.
  • RS-422 kabellarini quvvat simlaridan alohida yo‘naltiring.
  • Barcha aloqa kabeli ulanishlarini mahkamlang.
  • Ishga tushirishdan oldin stend yerga ulanishini tekshiring.
  • Ishga tushirish vaqtida displey aloqasini tasdiqlang.
