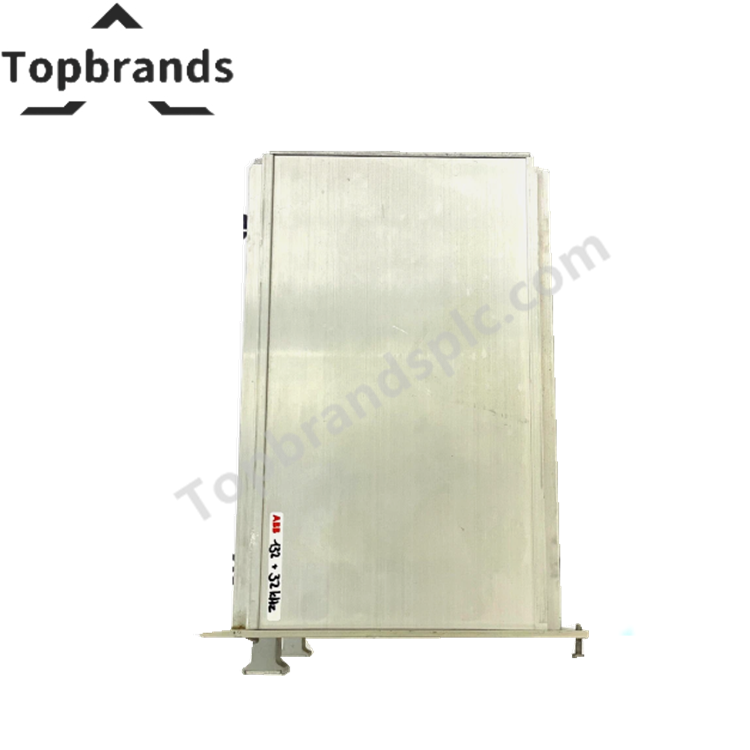

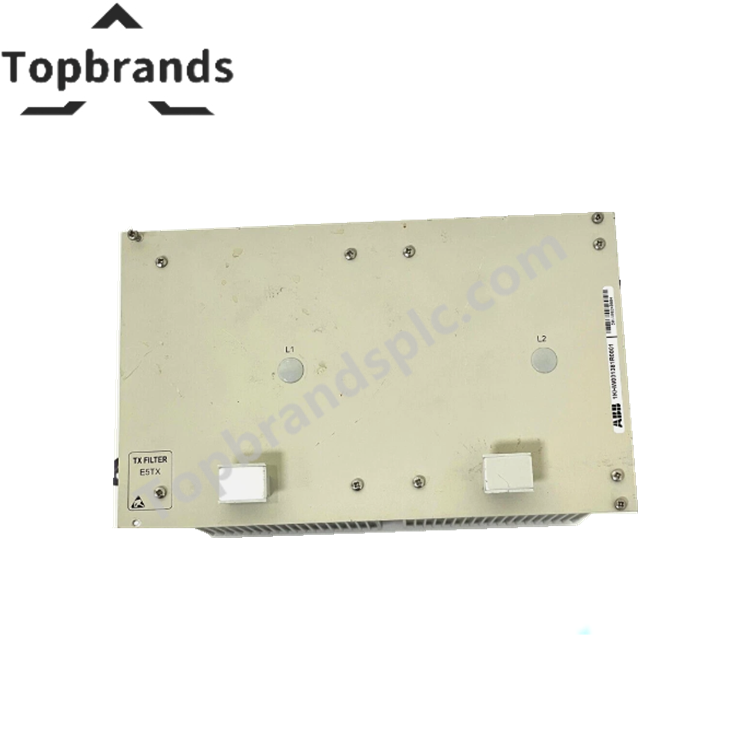

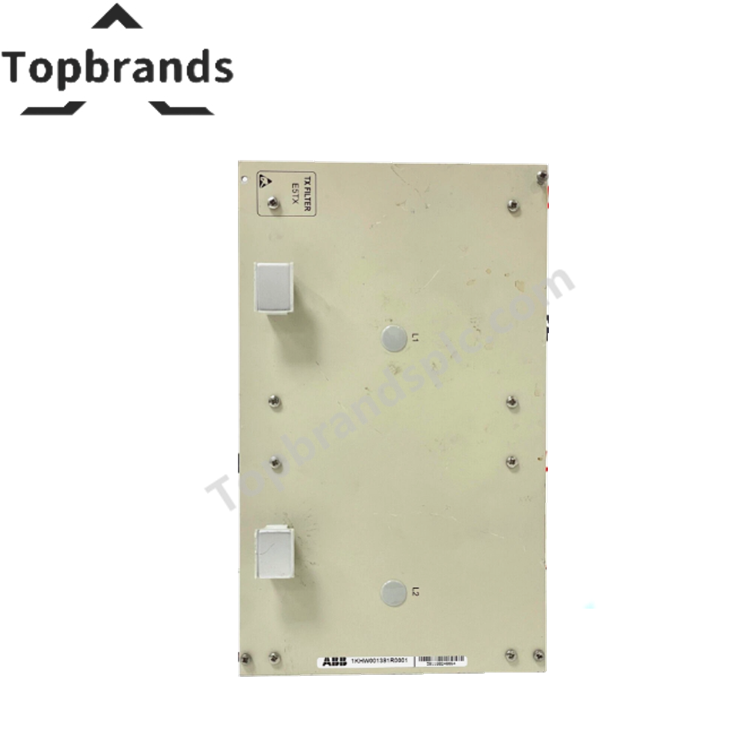

ABB 1KHW001381R0001 E5TX Servo Controller Unit

Description

The ABB 1KHW001381R0001 E5TX is a high-performance servo controller unit designed for precise and dynamic control of servo motors in industrial automation. It ensures smooth, accurate motion control and system reliability in demanding environments.

Specifications

• Model: 1KHW001381R0001 E5TX

• Manufacturer: ABB

• Voltage: 3-phase 200–480 V AC

• Frequency: 50/60 Hz (±5%)

• Power Range: 0.5–5 kW

• Continuous Current: 5 A RMS

• Peak Current: 15 A

• Analog Input: ±10 V

• Encoder Interface: 1 MHz differential

• Control Bandwidth: 1.2 kHz velocity loop

• Positioning Accuracy: ±1 encoder count

• Operating Temperature: 0°C to +55°C

• Storage Temperature: –40°C to +85°C

• Humidity: 5–95% (non-condensing)

• Dimensions: Approx. 2 × 15.5 × 26.2 cm

• Weight: Approx. 1.2 kg

Features

• Precision Control: Advanced algorithms ensure smooth and accurate servo motor operation

• High-Speed Feedback: Supports 1 MHz encoder interface for real-time positioning

• Robust Design: Engineered for durability in industrial environments

• Wide Power Range: Supports applications from 0.5 to 5 kW

• Dynamic Performance: Delivers responsive motion control with minimal delay

• Environmental Resilience: Operates reliably across wide temperature and humidity ranges

• Compact Form Factor: Space-efficient for control cabinets and automation setups

• System Optimization: Enhances overall performance and reduces downtime
