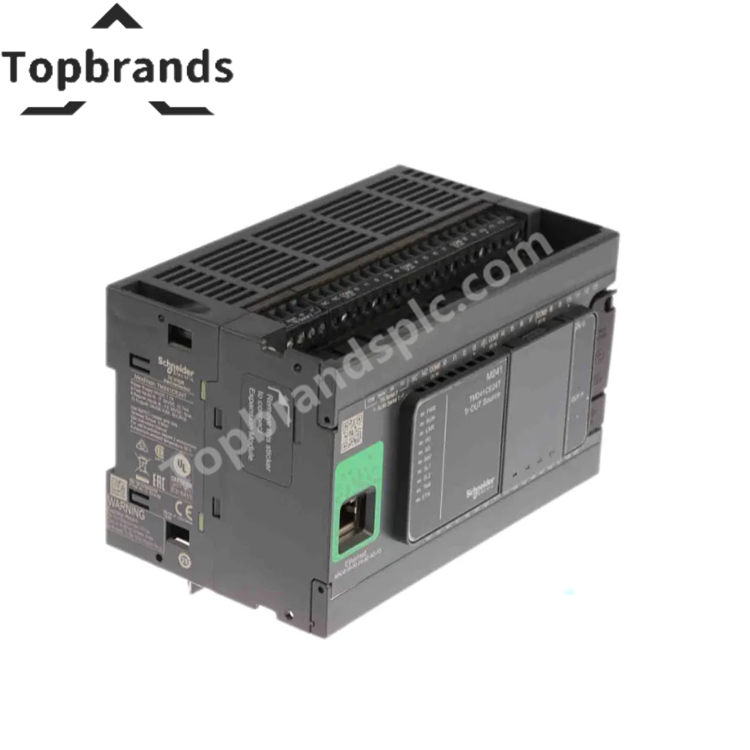

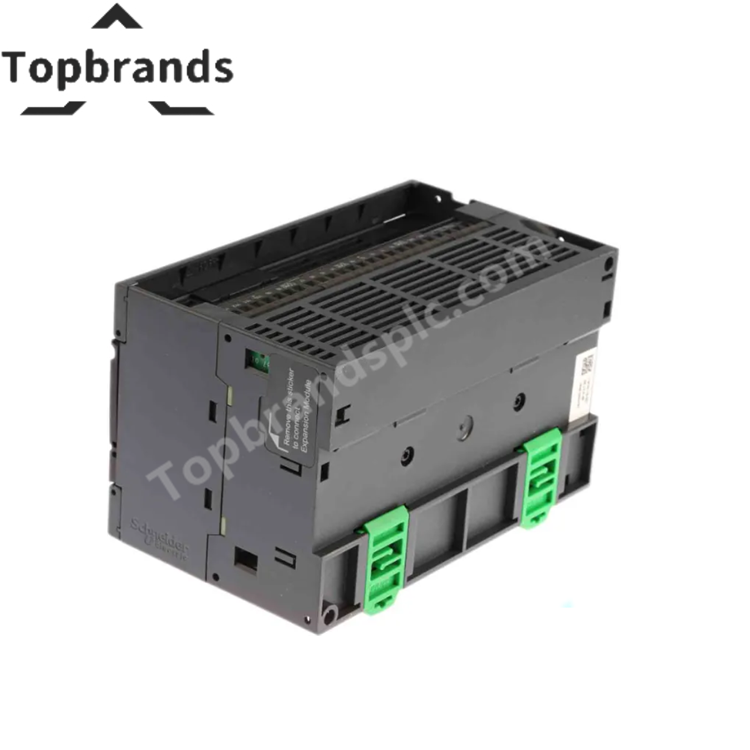

Schneider TM241CEC24T Logic Controller

Description

The TM241CEC24T is a compact and powerful logic controller from Schneider Electric’s Modicon M241 series. It features 24 integrated digital I/O points, Ethernet and CANopen communication, and high-speed processing for demanding automation tasks.

Specifications

• Product Type: Programmable logic controller (PLC)

• Digital I/O: 14 inputs (including 8 fast inputs), 10 outputs (including 4 fast outputs)

• Output Type: Transistor (PNP sourcing logic)

• Rated Voltage: 24V DC

• Power Supply Range: 20.4 to 28.8V DC

• Current Output: 0.5 A per transistor output; 0.1 A for fast outputs

• Response Time: ≤2 µs for fast inputs and outputs

• Memory: 64 MB RAM, 128 MB flash, optional SD card up to 16 GB

• Communication Ports: Ethernet, USB mini-B, 2 serial ports (RS232/RS485), CANopen

• Mounting: DIN rail or panel

• Dimensions: Approx. 90 mm (H) × 81.3 mm (D) × 70 mm (W)

• Certifications: CE, RoHS, REACh

• Protection: Short-circuit and overload protection with auto-reset

Features

• Integrated High-Speed I/O: Supports fast counting and positioning with PTO up to 100 kHz

• Multi-Protocol Communication: Ethernet, CANopen, RS232/RS485 for flexible integration

• Compact Design: Space-saving form factor ideal for control panels

• Real-Time Clock: Built-in RTC for time-based operations

• Advanced Programming: Compatible with EcoStruxure Machine Expert software

• Expandable Architecture: Supports up to 7 local and 14 remote TM3 I/O modules

• Robust Performance: Fast execution cycle (0.3 ms per 1K instructions)

• Eco-Friendly Packaging: Delivered in recyclable cardboard with minimal plastic
