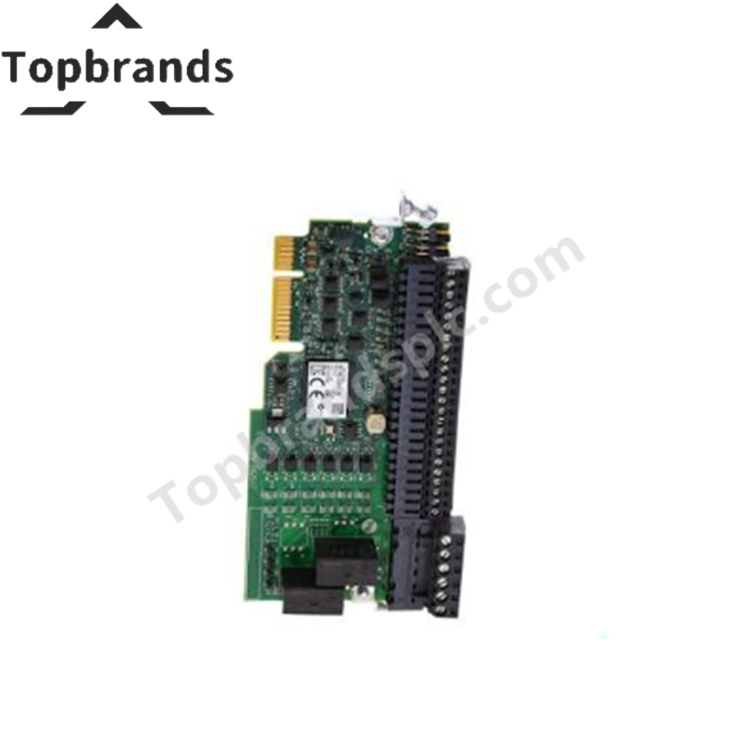

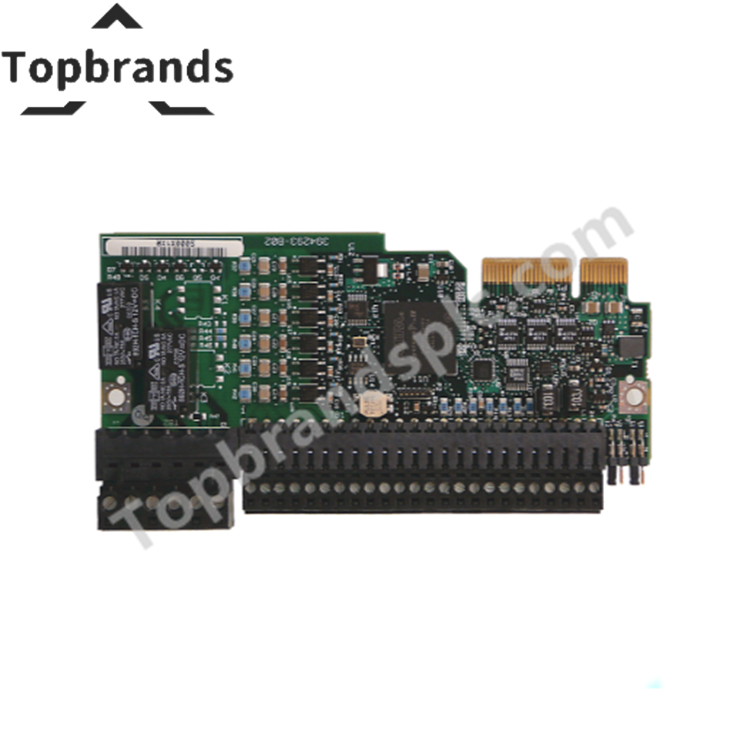

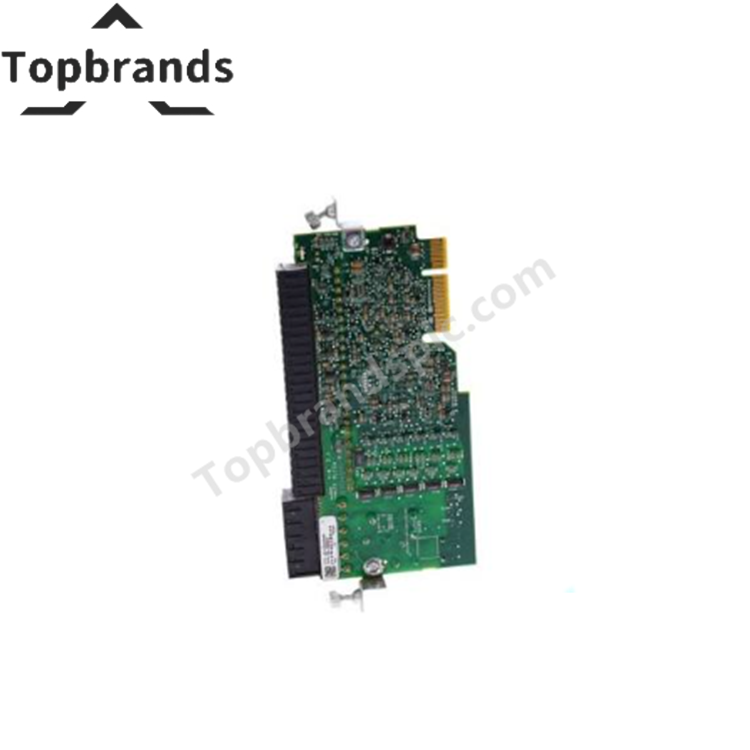

Allen-Bradley 20-750-2262C-2R PowerFlex 750 24 VDC I/O Option Module

The Allen-Bradley 20-750-2262C-2R I/O Option Module expands the I/O capability of PowerFlex 750-series drives. It provides digital inputs, analog inputs, analog outputs, and relay outputs on a single module, allowing drive integration with external sensors, control circuits, and supervisory systems.

I/O Functions

The module combines multiple signal types for drive control and monitoring:

• 6 digital inputs, 24 VDC sink or source

• 2 differential analog inputs

• 2 analog outputs

• 2 Form C (SPDT) relay outputs

Digital inputs are optically isolated from the drive control circuitry to improve noise immunity and electrical separation.

Analog Signal Interface

The analog inputs support both voltage and current signals, allowing connection to transmitters, potentiometers, and process control devices.

Analog outputs can be configured for voltage or current operation, providing feedback signals to external controllers, indicators, or monitoring systems.

Installation

The module is designed for PowerFlex 750-series drives and installs in any available I/O slot from Slot 4 through Slot 8. Its open-style IP20 construction is intended for installation within a suitable drive enclosure.

Technical Specifications

Frequently Asked Questions

Q: What I/O types are available on the 20-750-2262C-2R?

A: The module provides 6 digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs within a single option card.

Q: Can the analog inputs accept both voltage and current signals?

A: Yes. The analog inputs support ±10 VDC voltage signals and 0-20 mA current signals.

Q: Which PowerFlex 750 slots support this module?

A: The module can be installed in any available I/O slot from Slot 4 through Slot 8 on compatible PowerFlex 750-series drives.
