  • Reverse Conducting Integrated Gate-Commutated Thyristor
  • High snubberless turn-off rating
  • Optimized for medium frequency (<1 kHz) and low turn-off losses
  • High reliability and electromagnetic immunity
  • Simple control interface with status feedback
  • AC or DC supply voltage
  • Contact factory for series connection


Manufacturer: ABB Switzerland Ltd. Semiconductors
Product Type:

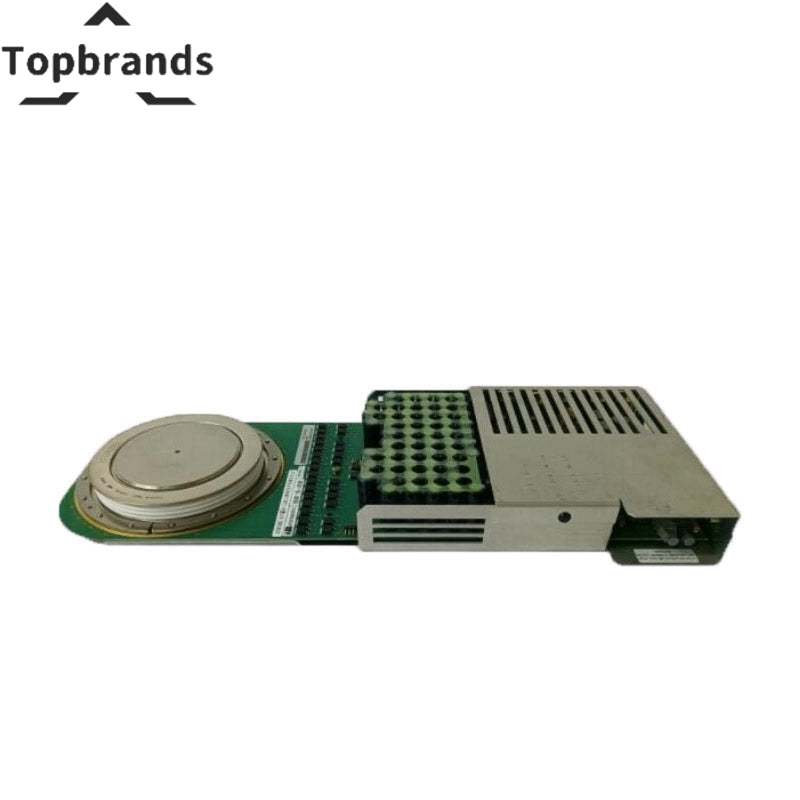

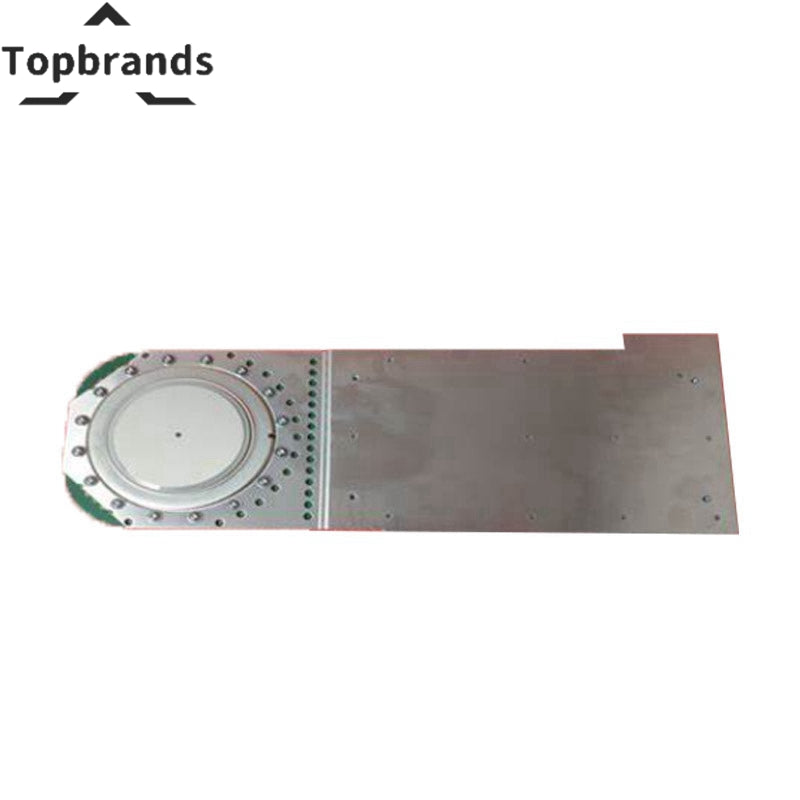

Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT)
Product Code:
5SHX 26L4510


  • Repetitive peak off-state voltage (VDRM): 4500 V
  • Permanent DC voltage for 100 FIT failure rate of RC-GCT (VDC-link): 2800 V

GCT Data:

  • Max. average on-state current (IT(AV)M): 1010 A
  • Max. RMS on-state current (IT(RMS)): 1590 A
  • Max. peak non-repetitive surge on-state current (ITSM): 17×10^3 A
  • Turn-on switching: Critical rate of rise of on-state current (diT/dtcr): 100 A/µs
  • On-state voltage (VT): 2.3 V to 2.95 V
  • Turn-on delay time (tdon): 3.5 µs
  • Turn-on energy per pulse (Eon): 0.85 J

Diode Data:

  • Max. average on-state current (IF(AV)M): 390 A
  • Max. RMS on-state current (IF(RMS)): 620 A
  • Max. peak non-repetitive surge current (IFSM): 10.6×10^3 A
  • On-state voltage (VF): 3.54 V to 5.4 V
  • Reverse recovery current (IRM): 900 A
  • Reverse recovery charge (Qrr): 2800 µC

Gate Unit Data:

  • Gate Unit voltage (VGIN,RMS): 28 V to 40 V
  • Min. current needed to power up the Gate Unit (IGIN): 2.1 A
  • Gate Unit power consumption (PGIN): Max 100 W


  • Junction operating temperature (Tvj): 0 °C to 125 °C
  • Storage temperature range (Tstg): -40 °C to 60 °C
  • Thermal resistance junction-to-case of GCT (Rth(jc)): 12.6 K/kW
  • Thermal resistance junction-to-case of Diode (Rth(jc)): 26 K/kW

Visual Feedback:

  • Gate OFF LED: Green
  • Gate ON LED: Yellow
  • Fault LED: Red
  • Power supply voltage OK LED: Green


  • Gate Unit power connector: AMP: MTA-156, Part Number 641210-5
  • LWL receiver for command signal: Avago, Type HFBR-2528
  • LWL transmitter for status feedback: Avago, Type HFBR-1528
