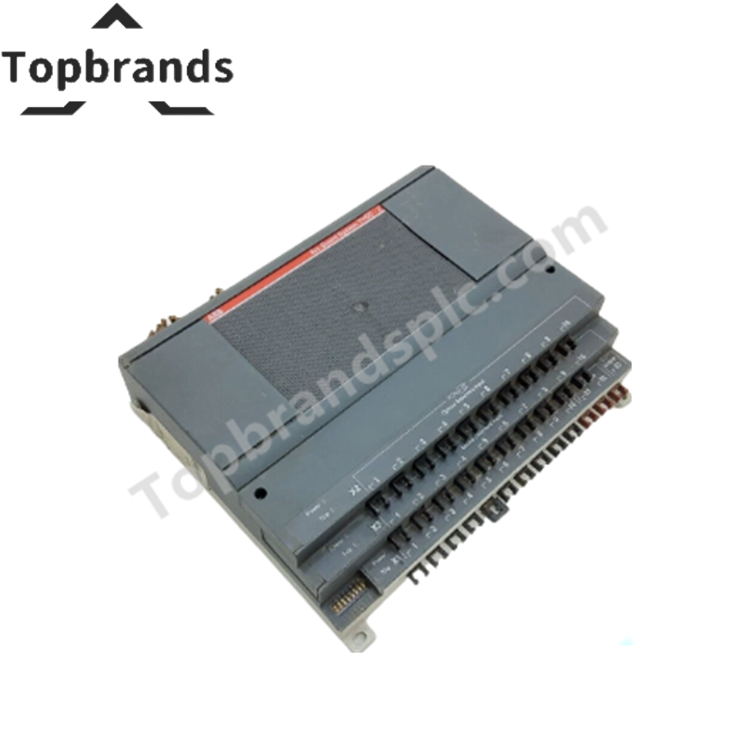

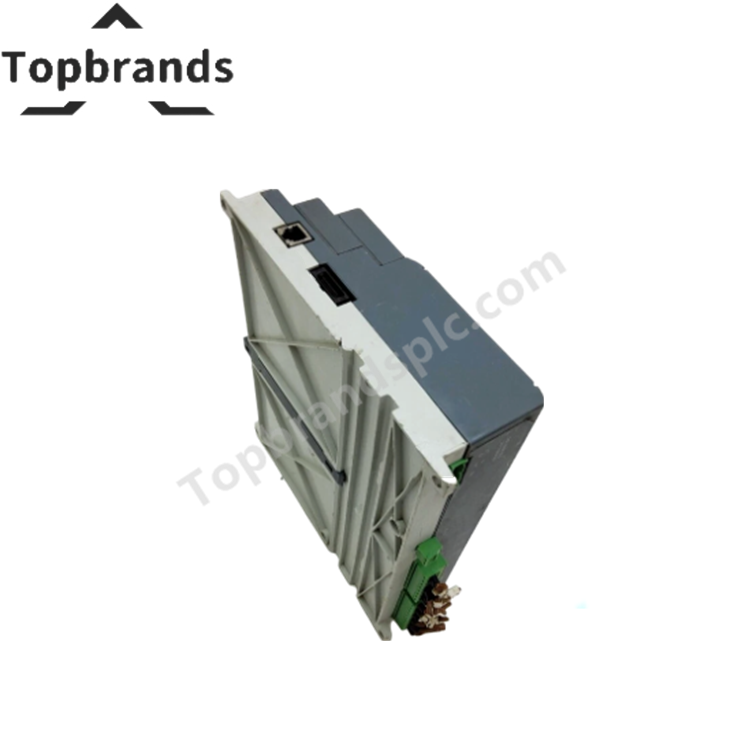

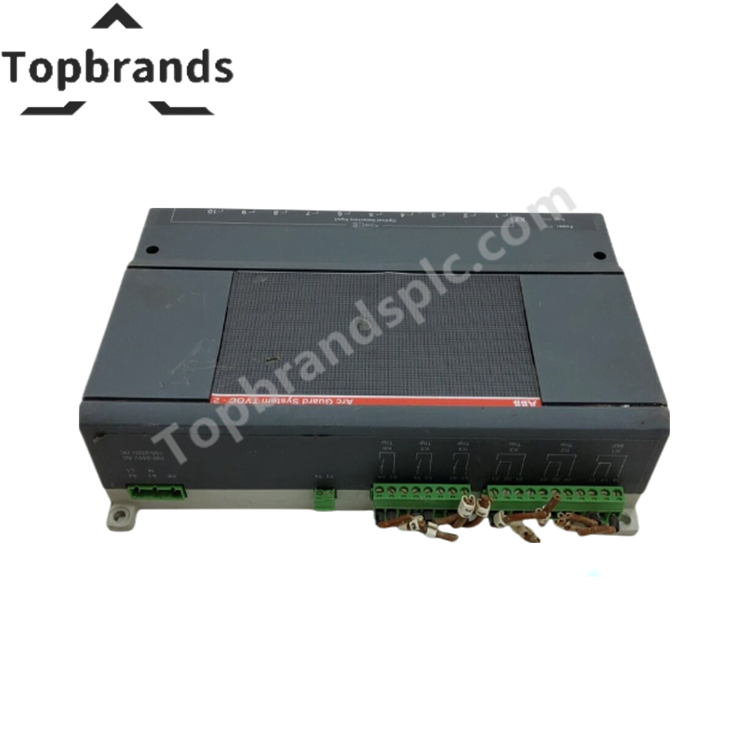

ABB TVOC-2-240 1SFA664001R1001 Arc Monitor

General Information

• Extended Product Type: TVOC-2-240

• Product ID: 1SFA664001R1001

• EAN: 7320500382172

• Catalog Description: TVOC-2-240 Arc Monitor

• Long Description: The TVOC-2 Arc Guard System is an arc protection relay that mitigates arc faults and helps protect people and equipment. The Arc Monitor is the main unit of the Arc Guard System, detecting arc light and sending a trip signal within 1 ms.

Material Compliance

• REACH Declaration: Reach Declaration ABB Arc Guard System

• RoHS Declaration: 2AGS2022-006277-RoHS (EU Directive 2011/65/EU & 2015/863)

• Conflict Minerals Reporting Template (CMRT): CMRT - Conflict Minerals Reporting Template

• TSCA: 2CMT001035D0902a

Environmental

• Ambient Air Temperature: Operation -25…+55 °C; Storage -25…+55 °C

• Environmental Information: Arc Guard System TVOC-2

Dimensions

• Product Net Width: 210 mm

• Product Net Height: 230 mm

• Product Net Depth / Length: 80 mm

• Product Net Weight: 1.2 kg

Additional Information

• Additional Information: ARC MONITOR TVOC-2

• Product Main Type: TVOC-2

• Product Name: Arc Monitor

• Suitable For: TVOC-2

Technical

• Mounting Type: Wall mounted or DIN

• Auxiliary Contacts (CO/SPDT): 3

• Auxiliary Contacts NC: 0

• Auxiliary Contacts NO: 3

• Power Loss: 1.5 W

• Rated Operational Voltage: 100…240 V AC/DC

• Terminal Type: Screw Terminals

Certificates and Declarations

• BV Certificate: TVOC-2

• CSA / cULus Certificate: Arc Guard System TVOC-2 incl. accessories

• DNV Certificate: TVOC-2 CSU-2

• EAC Certificate: ArcGuard TVOC-2

• Declaration of Conformity - CE: Arc Guard System TVOC-2

• Instructions & Manuals: Installation and maintenance guide TVOC-2

External Classifications and Standards

• ETIM 9 / 10: EC002911 - Arc detection and mitigation system

• IGCC: 3594 >> Interface module

• Object Classification Code: B

• UNSPSC: 32151802

• WEEE Category: 5. Small Equipment (No External Dimension >50 cm)
