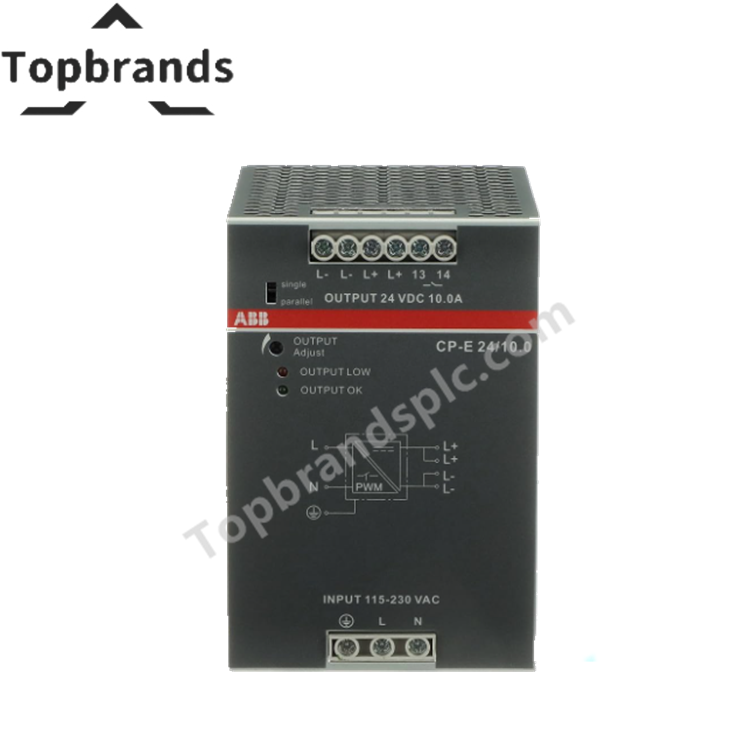

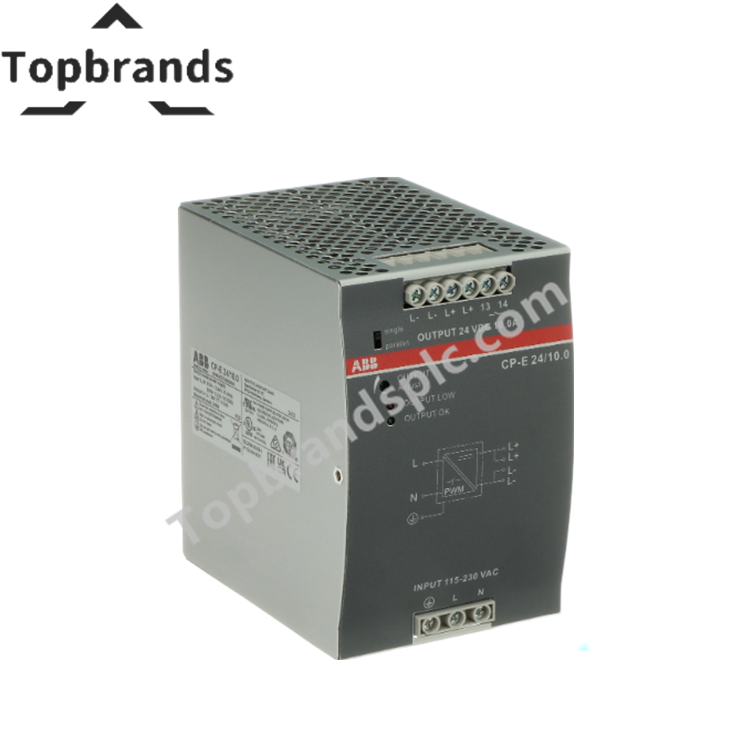

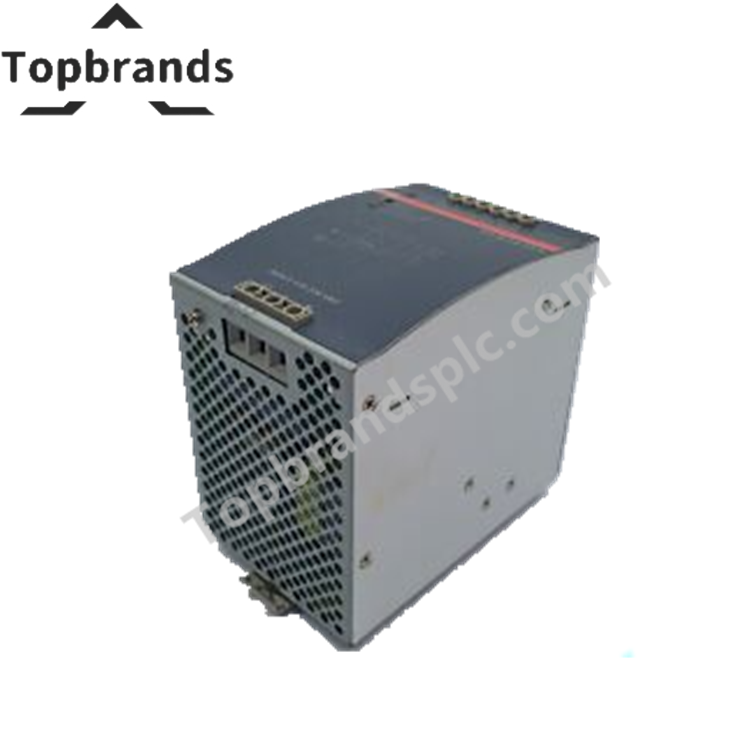

CP-E 24/10.0 1SVR427035R0000 | ABB | Power Supply

Specifications

• Extended Product Type: CP-E 24/10.0

• Product ID: 1SVR427035R0000

• EAN: 4016779669696

• Catalog Description: CP-E 24/10.0 Power Supply, In: 115/230 V AC, Out: 24 V DC / 10 A

• Function: Switch Mode Power Supply

• Number of Phases: 1

Electrical

• Rated Input Voltage: 115 / 230 V AC

• Input Voltage Range: 90…132 V AC, 180…264 V AC, 210…375 V DC

• Rated Frequency: 50 Hz (47…63 Hz)

• Rated Output Power: 240 W

• Output Voltage: 24 V DC

• Rated Output Current: 10 A

• U/I Characteristic Curve: Yes

Protection & Insulation

• Impulse Withstand Voltage (Uimp):

• Input/Output: 4 kV

• Input/PE: 2.5 kV

• Input/Relay Contact: 4 kV

• Output/PE: 0.5 kV

• Rated Insulation Voltage (Ui):

• Input/Output: 300 V

• Input/PE: 300 V

• Output/PE: 50 V

• Degree of Protection: Housing IP20, Terminals IP20

• Pollution Degree: 2

Connections

• Input Circuit: Flexible 0.2–4 mm², Rigid 0.2–6 mm²

• Output Circuit: Flexible 0.2–4 mm², Rigid 0.2–6 mm²

• Tightening Torque: Input 1 N·m, Output 0.62 N·m

• Wire Stripping Length: 8 mm

• Recommended Screwdriver: PH2

Mechanical

• Dimensions (W×H×D): 83 × 123.6 × 123.6 mm

• Weight: 1.334 kg

• Mounting: DIN Rail TH35-15 / TH35-7.5, Minimum Distances 25 mm

• Mounting Position: Any

Standards & Certifications

• ANSI/ISA-12.12, CAN/CSA C22.2 No.107.1, No.213, No.60950

• IEC/EN 63000, 60950-1, 61000-6-2, 61000-6-3

• UL 508, UL 60950

EMC & Immunity

• ESD (IEC 61000-4-2): Level 4, Air 15 kV / Contact 8 kV

• Radiated EM Field (IEC 61000-4-3): Level 3, 10 V/m

• Fast Transients (IEC 61000-4-4): Level 4, 4 kV

• Surge (IEC 61000-4-5): Line-to-Line 2 kV, Line-to-Ground 4 kV

• Conducted Disturbances (IEC 61000-4-6): Level 3, 10 V

• EMC Class: Immunity Class B, Emission Class B

Environmental

• Operating Temperature: −40…+70 °C

• Storage Temperature: −40…+85 °C

• Maximum Operating Altitude: 5000 m
