Emerson 1C31223G01 Relay Output Base Assembly

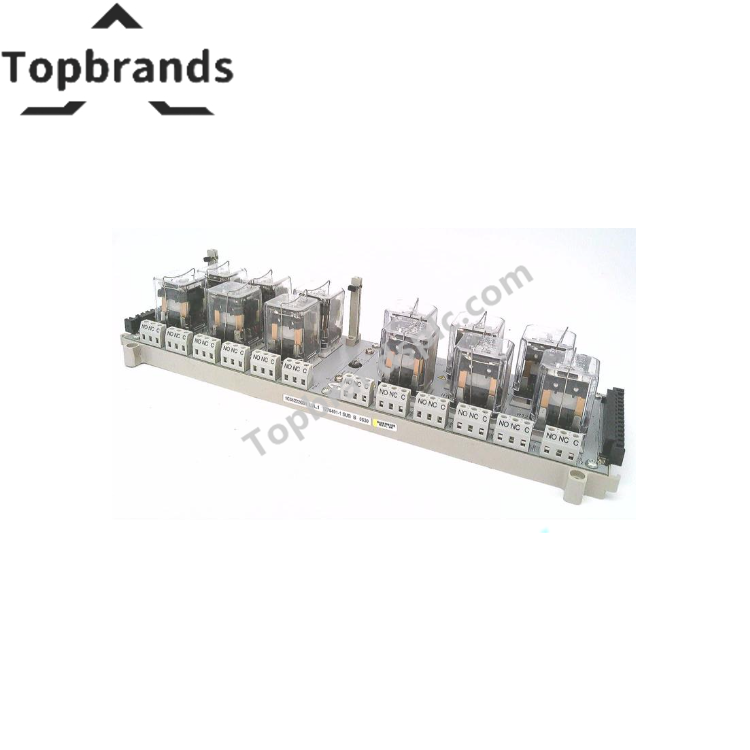

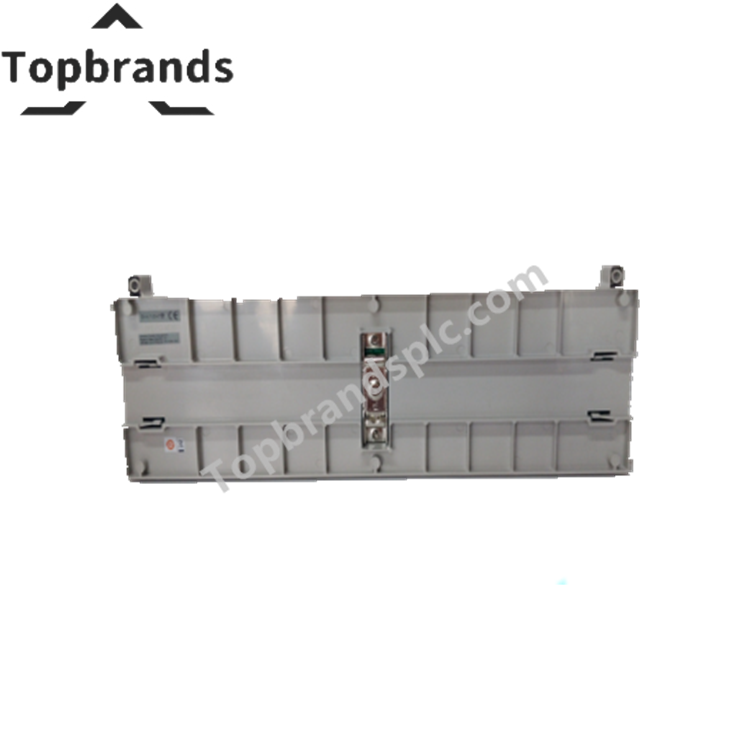

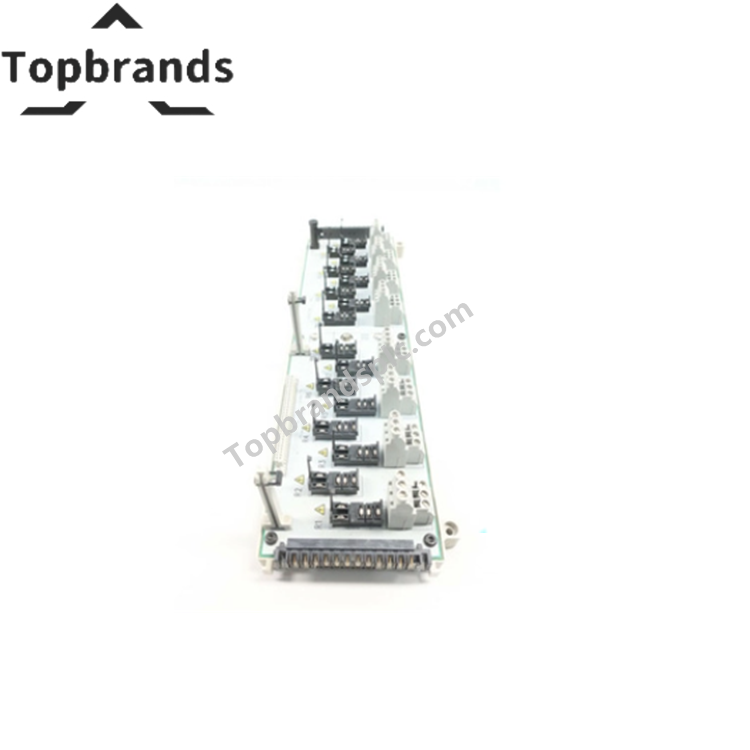

The Emerson 1C31223G01, also cataloged as the 1C31223G01 Relay Output Base Assembly, operates as a dedicated hardware component for 16-channel discrete signal switching and field termination execution within Emerson Ovation Distributed Control System platforms.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

While operating primarily as an electromechanical relay output termination board, integration within Emerson Ovation architectures requires strict channel-to-channel isolation and loop integrity verification. The assembly features robust 2500 VAC coil-to-contact galvanic isolation to mitigate ground loops and high-voltage transients from field actuators. When interfacing with complex distributed control loops, terminal block configurations support direct field device terminations while maintaining low-latency response profiles under 15 ms for turn-on operations.

Frequently Asked Questions

Q: Does the 1C31223G01 base assembly support live hot-swapping of the electronics module?

A: Yes, the mechanical baseboard design allows removal and insertion of the mating 16-channel relay electronics module while system power is active, provided that loop power is isolated to prevent inductive arcing at the terminal blocks.

Q: What is the maximum continuous thermal dissipation limit per channel?

A: Each channel is rated for 10 A resistive loads at 250 VAC or 125 VDC; however, simultaneous full-load operation across all 16 channels requires adequate cabinet ventilation to maintain operating ambient temperatures within the -40 deg C to +85 deg C threshold.

Field Installation Guidelines

• Mount the assembly securely onto a standard DIN-rail within the designated Emerson Ovation system cabinet, ensuring proper mechanical locking to withstand plant vibration profiles.

• Terminate incoming field wiring directly into the built-in terminal blocks, maintaining strict segregation between high-voltage switching circuits and internal low-voltage logic control wiring.

• Verify shield grounding continuity and check insulation resistance across coil-to-contact isolation barriers prior to energizing the 24 VDC nominal coil supply.
