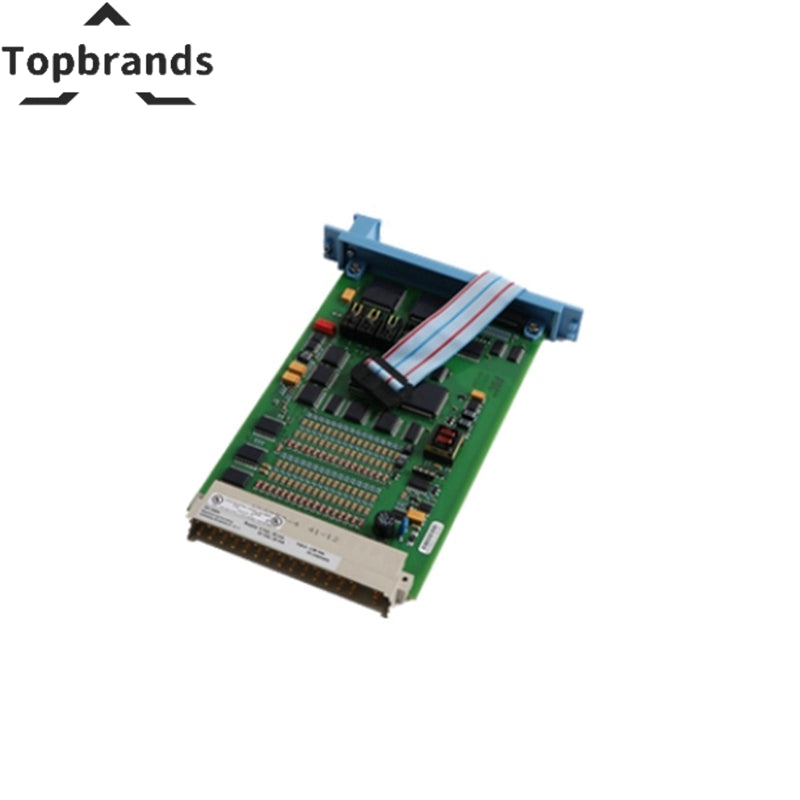

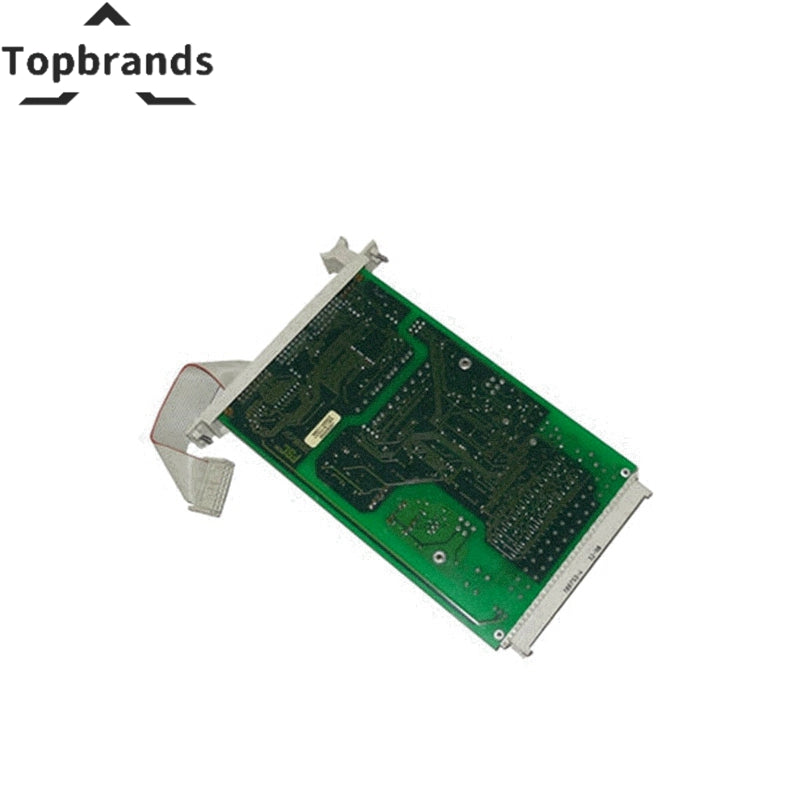

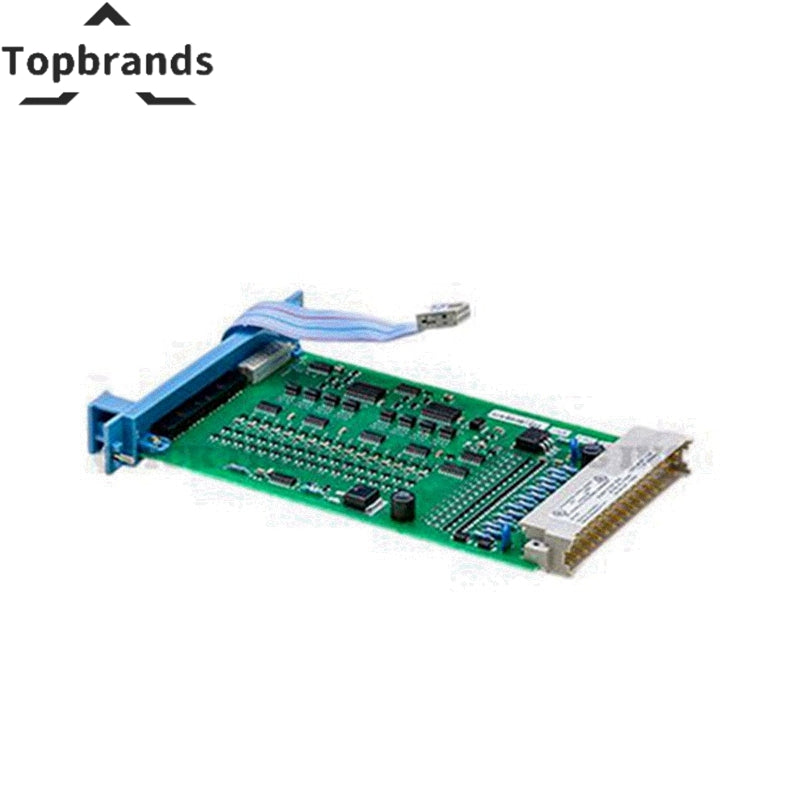

FC-SDIL-1608 | Honeywell | Safe Digital Input Module Line Monitoring

Manufacturer: Honeywell
Product Number: FC-SDIL-1608
Product Type: Safe Digital Input Module Line Monitoring
Approvals: CE, TUV, UL, CSA, FM
Space Requirements: 4 TE (Technical Units), 3 HE (Height Units) (equivalent to 4 HP, 3U)

Power Requirements:

• 5 Vdc, 160 mA
• 24 Vdc, 110 mA

Number of Input Channels: 16
Input Type: According to DIN 19234 (NAMUR)
Switch Level: 1.4—1.9 mA
Hysteresis: 0.2 mA ± 0.05 mA
Input Filter: First order, low pass at 100 Hz
Field Wire Resistance: Maximum 50 Ω

8 V Loop Supply:

• Output Voltage: 7.9—8.7 V
• Output Current: 170 mA (short-circuit proof)

Key Information:

• Approvals: The module is certified by CE, TUV, UL, CSA, and FM, indicating compliance with safety and regulatory standards across different regions.
• Space Requirements: It occupies 4 TE in width and 3 HE in height, which is equivalent to 4 HP (horizontal pitch) and 3U (rack units), standard dimensions used in rack-mounted equipment.
• Power Requirements: The module operates on both 5 Vdc and 24 Vdc power supplies, with specific current consumption requirements for each voltage level.
• Input Channels: It features 16 input channels, designed for safe digital inputs suitable for critical applications.
• Input Type: Conforms to DIN 19234 (NAMUR), which is a standard for electrical connections and interfaces in industrial control systems.
• Switch Level and Hysteresis: Specifies the electrical characteristics of the input signals, ensuring reliable operation within defined current ranges.
• Input Filter: Utilizes a first-order low-pass filter at 100 Hz to filter out high-frequency noise from the input signals.
• Field Wire Resistance: Specifies the maximum resistance allowed for the field wiring to ensure proper signal integrity.
• 8 V Loop Supply: Provides specific details on the output voltage range and current capability of the loop supply, crucial for powering connected sensors or devices.
