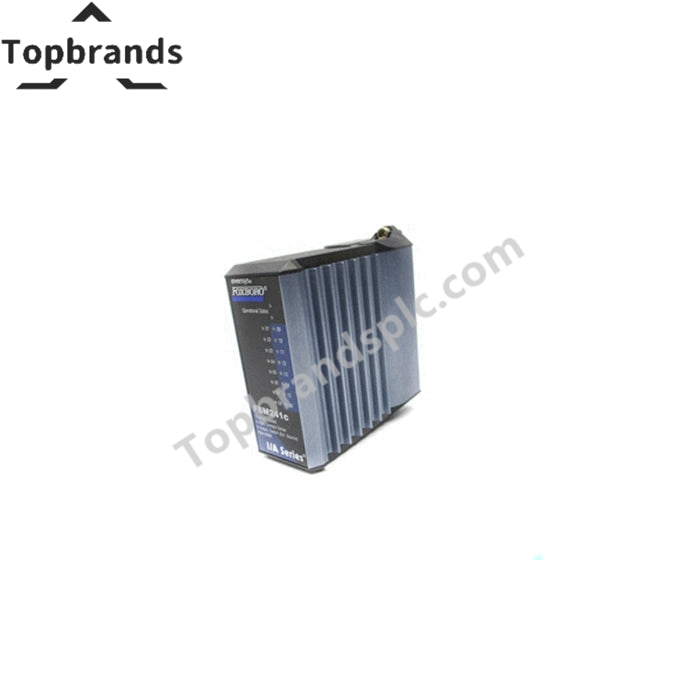

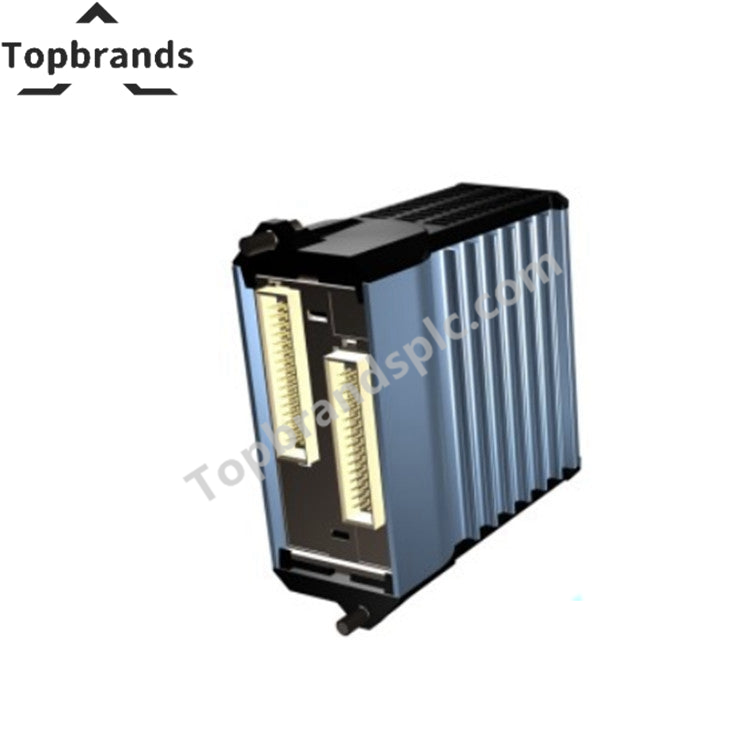

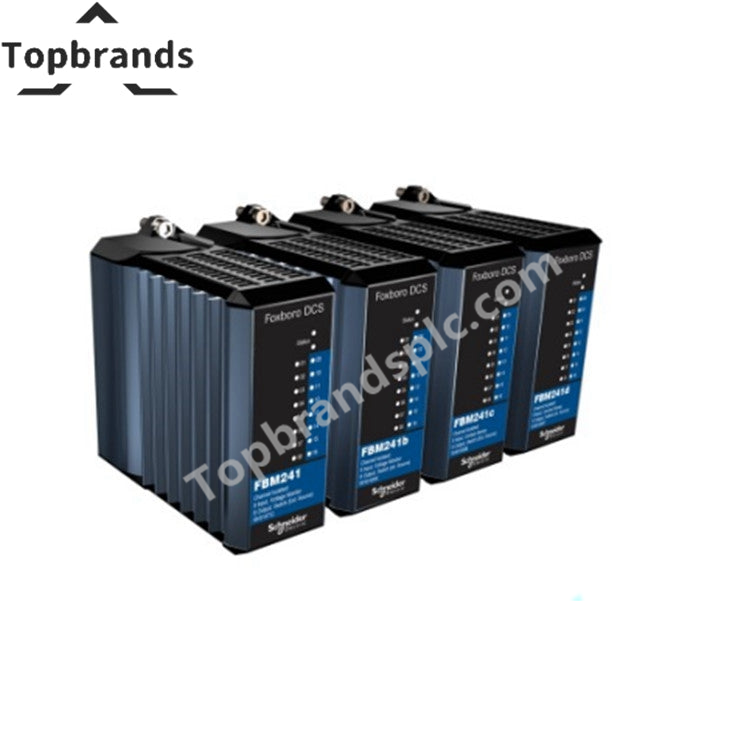

Foxboro FBM241 P0914TG Voltage Monitor I/O Module

Description

The Foxboro FBM241 P0914TG is a channel-isolated voltage monitoring I/O module from the I/A Series, engineered for reliable signal interfacing and control in demanding industrial environments. It features eight discrete inputs and eight discrete outputs, each galvanically isolated to ensure safe and accurate operation across a wide voltage range.

Specifications

• Model: FBM241 P0914TG

• Series: Foxboro I/A Series

• Input Channels: 8 discrete voltage inputs

• Output Channels: 8 discrete voltage outputs

• Input Voltage Range: 15–60 V DC, 125 V DC, 120 V AC, 240 V AC

• Output Voltage Range:

  • 15–60 V DC @ 2 A

  • 30 V DC @ 5 A

  • 125 V DC @ 0.5 A

  • 120/240 V AC @ 5 A

• Isolation: Galvanic isolation per channel and to ground

• Field Power: Externally sourced for output channels

• Mounting: DIN rail modular baseplate

• Communication: Redundant 2 Mbps Fieldbus (Path A or B)

• Operating Temperature: 0°C to +60°C

• Enclosure: Class G3 compliant (ISA S71.04) for corrosive environments
