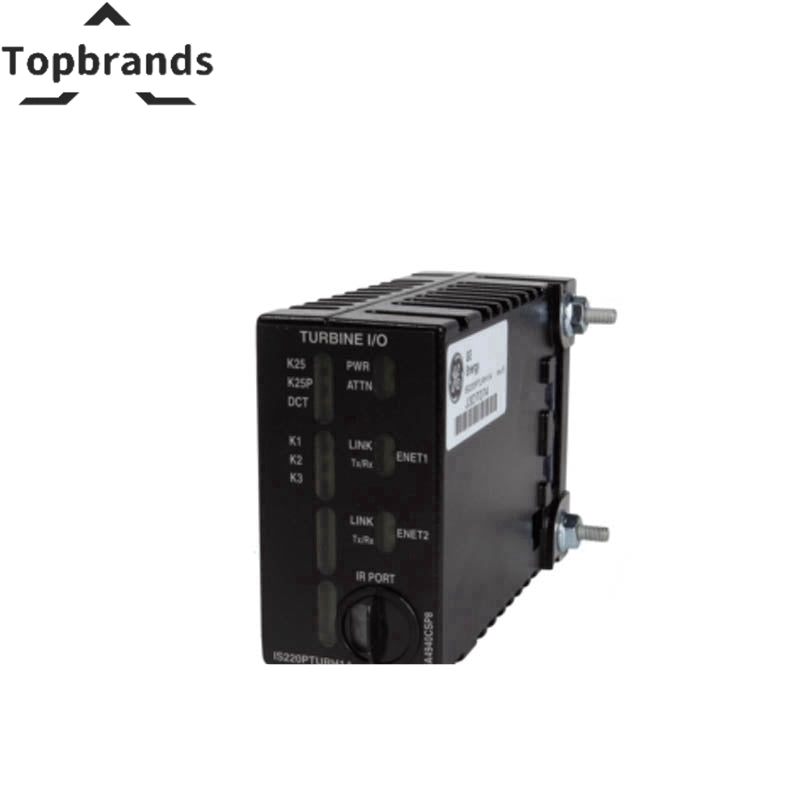

GE IS220PTURH1B Turbine-Specific Primary I/O Trip Pack

GE IS220PTURH1B PTUR Turbine Control I/O Pack

Configured for turbine synchronization and protection tasks in Mark VIe distributed control networks, the GE IS220PTURH1B (IS220PTURH1B I/O pack) provides direct electrical execution of PT signal acquisition, speed sensing, breaker command output, and Ethernet‑based control integration.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Flash Compatibility

Within GE Mark VIe architectures, the IS220PTURH1B participates in deterministic Ethernet‑based I/O communication. Dual 10/100 ports support redundant network paths without altering backplane timing. Firmware flash compatibility ensures that the processor board synchronizes with acquisition and terminal boards using board ID validation. I/O density scaling is achieved through TTURH1C or TRPAH1A termination, allowing multiple PTUR packs to operate in simplex or TMR configurations without timing drift.

Frequently Asked Questions

Q: Can the IS220PTURH1B be hot‑swapped? A: Yes. The pack includes a soft‑start circuit that limits inrush current, allowing insertion under power.

Q: Does the module require both Ethernet ports for operation? A: No. Either port can be used. Standard practice is to connect ENET1 to the R controller network.

Q: Does the pack support bus and generator voltage inputs when used with TRPAH1A? A: No. TRPAH1A supports speed inputs only; voltage, shaft signals, flame sensors, and breaker outputs are not supported.

Field Installation Guidelines

• Mount the terminal board securely before inserting the pack.
• Ensure the DC‑62 connector is aligned to avoid right‑angle stress.

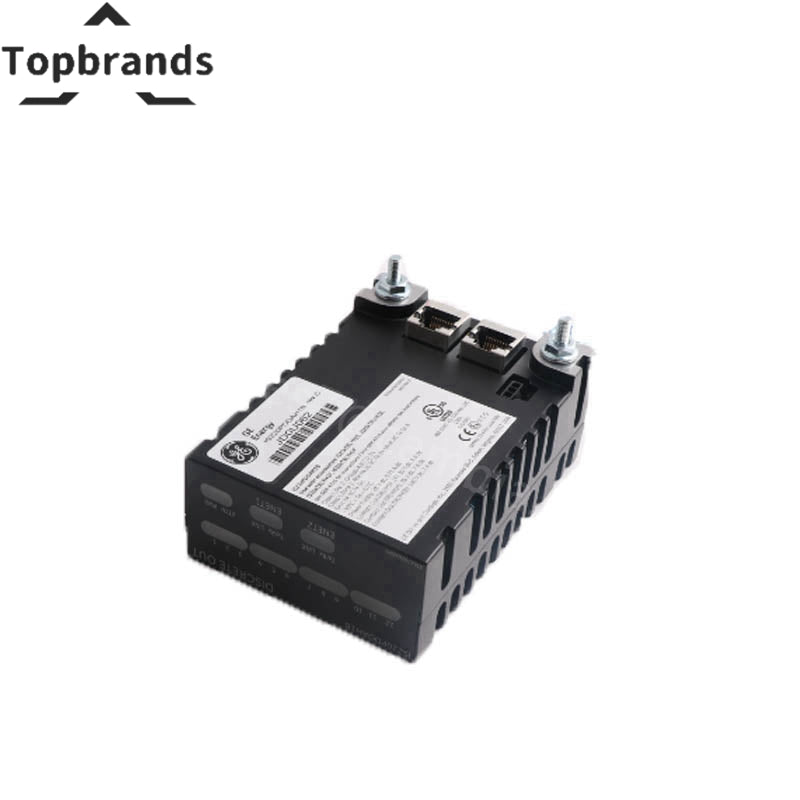

• Use threaded studs near the Ethernet ports to secure the pack.
• Route PT and speed sensor wiring separately from high‑energy conductors.
• Maintain shield bonding at a single point to avoid circulating currents.
• Connect power last; soft‑start circuitry manages inrush automatically.
