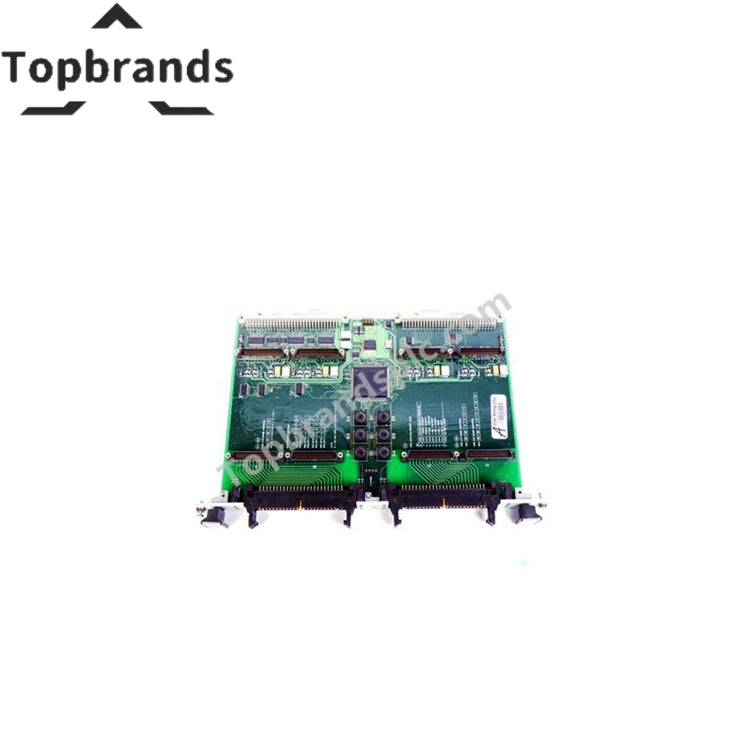

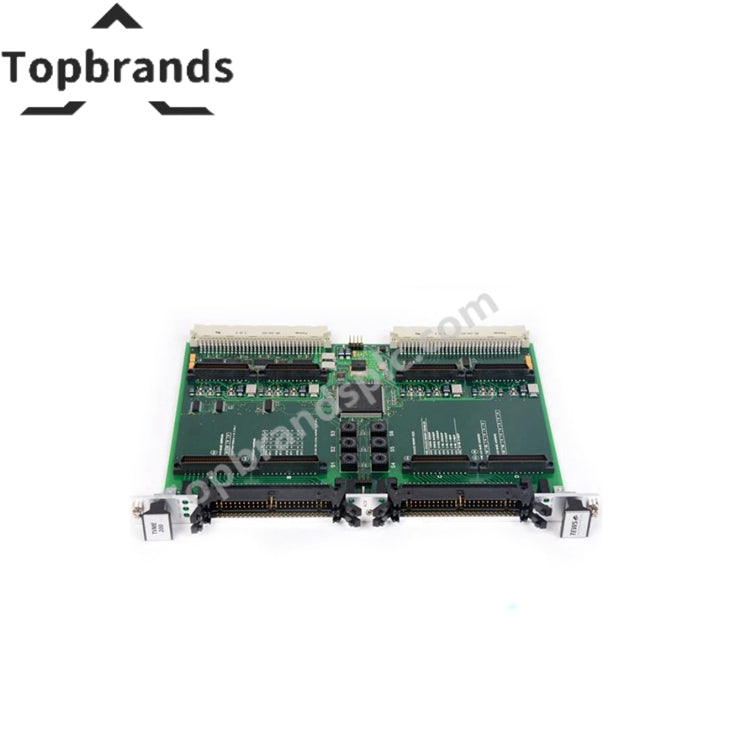

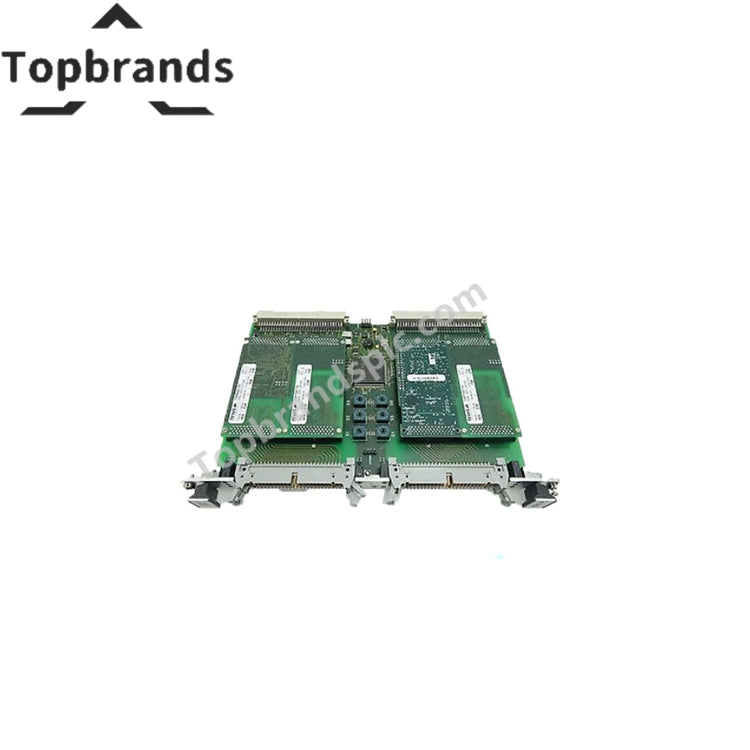

GE TVME200-10 VMEbus Carrier Board

Description

The TVME200-10 is a 6U VMEbus carrier board that supports up to four IndustryPack (IP) modules. It is ideal for applications in process control, medical systems, telecommunications, and traffic control. The board provides a robust platform for integrating modular I/O solutions.

Specifications

• Form Factor: 6U VMEbus board

• Interface:

  • VMEbus Slave Interface

  • Short I/O: A16, D08/16, size: 1 Kbyte

  • Standard Memory: A24, D08/16, size: 32 Kbytes to 2 Mbytes per IP

  • Extended Memory: A32, D08/16, size: 8 Mbytes per IP

• IndustryPack Slots:

  • Four single-size or two double-size slots

  • Front panel I/O access

• Interrupts: Programmable routing of IP interrupt levels to VME IRQ1-7

• Operating Temperature: -40°C to +85°C

• Power Supply: Self-healing fuses and RF-filtering on all IP power lines

• Status Indicators: LEDs for IP access, +5V, and ±12V power

Features

• Modular Design: Supports up to four IndustryPack modules for flexible I/O configurations.

• Programmable Interrupts: Allows software-based or predefined interrupt routing.

• Durable Construction: Built to withstand harsh industrial environments.

• Wide Temperature Range: Operates reliably in extreme conditions.

• Ease of Use: Rotary switches for easy configuration of VME addresses and interrupt routing.
