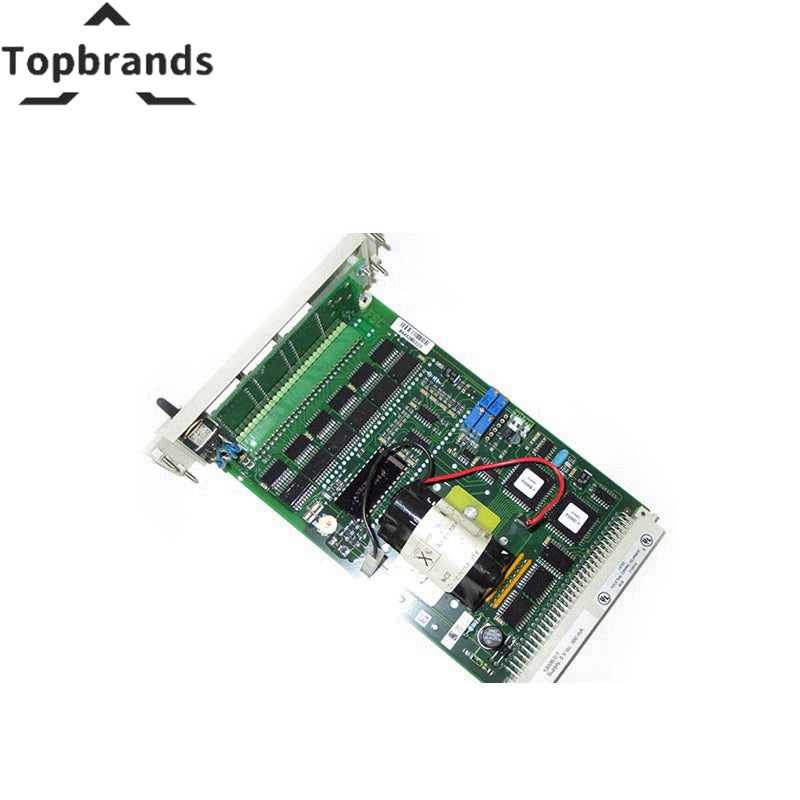

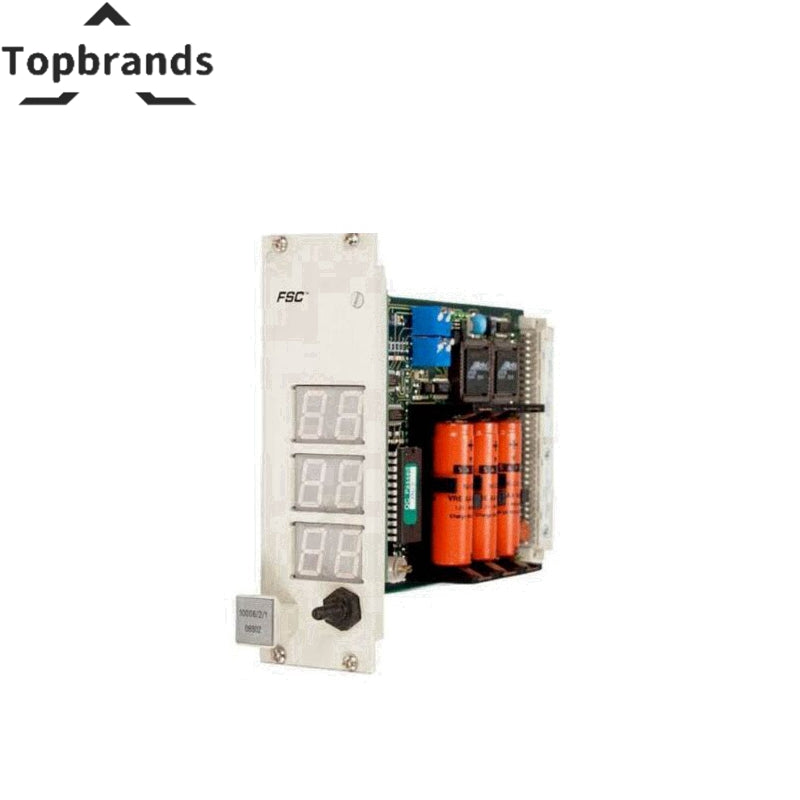

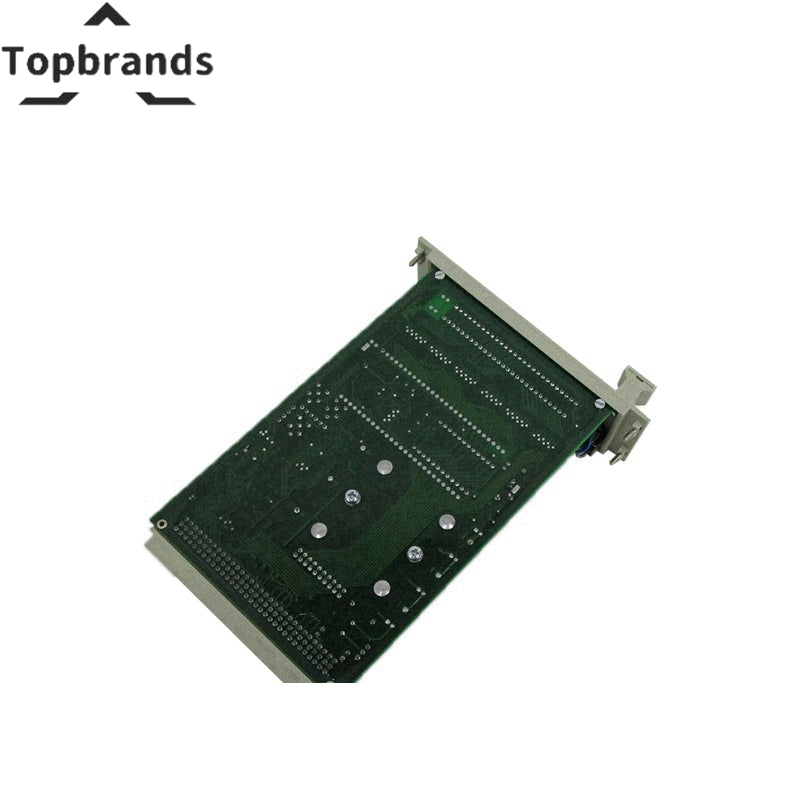

Honeywell 10005/1/1 Watch Dog Module Genuine and brand new

Description

Honeywell 10005/1/1 is a watchdog module designed for Fail Safe Controller (FSC) systems. It monitors system execution and triggers safe shutdowns in case of faults or hang-ups, ensuring high-integrity control in critical applications.

Specifications

• Model Number: 10005/1/1

• Function: Watchdog monitoring for FSC

• Power Supply: 5 VDC, 175 mA (excluding WDGOUT output)

• Input Signals:

  • ESD1: 24 VDC, 5 mA

  • Reset: 24 VDC, 10 mA

  • ESD2: 5 VDC, 10 mA

• Max Output Current: 900 mA (5 VDC, protected by 1 A fuse)

• Communication Interface: S-BUS (Honeywell proprietary)

• Protection Rating: IP20

• Dimensions: 4 TE × 3 HE (approx. 120 × 100 × 50 mm)

• Weight: 3 kg

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Mounting: Cabinet-mounted, connects to 10005/O/1 or S-BUS

Features

• 2oo3 Voting Logic: Ensures fault tolerance and safe decision-making

• Real-Time Monitoring: Detects execution delays or system hang-ups

• Failsafe Output: De-energizes outputs during emergency shutdown (ESD) events

• S-BUS Integration: Seamless communication with FSC architecture

• Robust Design: Built for high-risk environments like oil & gas, chemical, and power sectors

• Compact Footprint: Space-efficient for dense cabinet installations

• Global Compliance: Meets international safety and EMC standards
