Honeywell | 10018/E/1 | FSC Ethernet Module | Brand New | In Stock

SKU 10018/E/1

  • Part Number:

    10018/E/1

  • Manufacturer:

    Honeywell

  • Condition:

    Brand New & in Stock

  • Product Type:

    FSC Ethernet Module

  • Origin:

    USA

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Frequently inquire Together

100% Genuine Stock, 24/7 Service

Inquiry

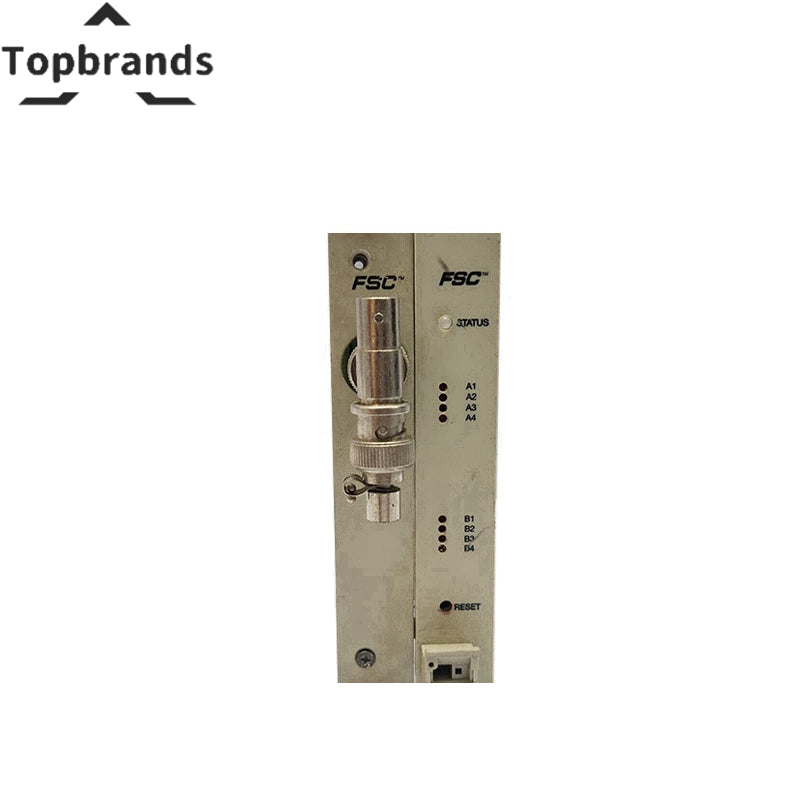

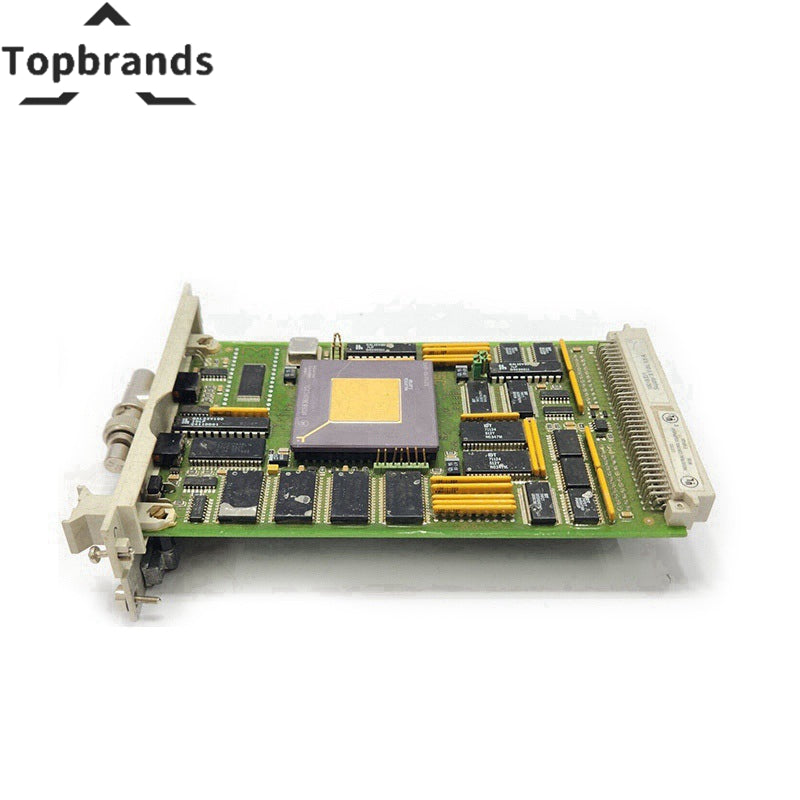

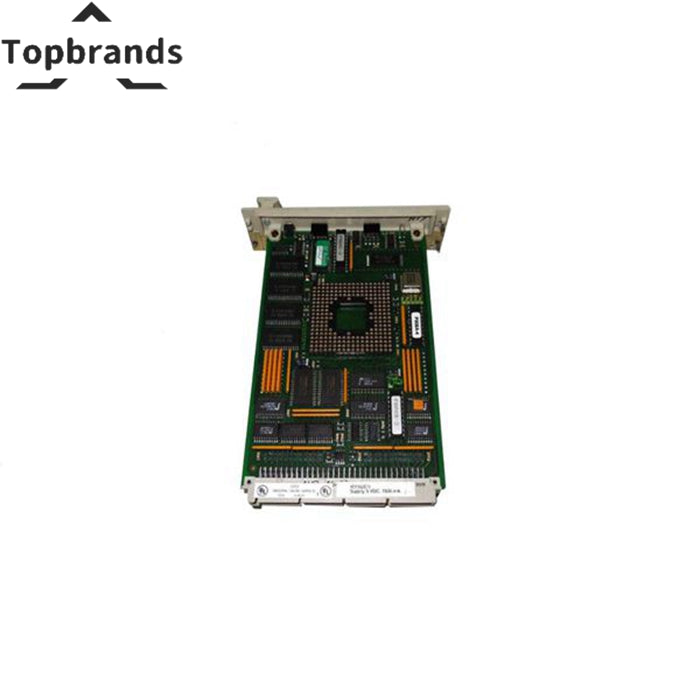

Honeywell 10018/E/1 FSC Ethernet Module

The Honeywell 10018/E/1 FSC Ethernet Module, also cataloged as the 10018/E communication card, operates as a dedicated hardware component for Ethernet-based connectivity between the Fail Safe Controller (FSC) central part and PlantScape SCADA servers.

Hardware Specifications

Parameter Specification
Model 10018/E/1
Brand Honeywell
Origin USA
Weight ~0.28 kg (net)
Dimensions 4 TE, 3 HE (Eurocard 4 HP, 3U rack format)
Operating Temp 0 deg C to +60 deg C
Storage Temp -40 deg C to +85 deg C
Relative Humidity 5% to 95% RH, non-condensing
Power Consumption <5 W
Module Type FSC Ethernet communication module
Interfaces 1 × isolated Ethernet serial interface
Data Rate 10/100 Mbps, auto-negotiation, full/half duplex
Protocols TCP/IP, Modbus TCP, UDP, HTTP, FTP
Isolation 1500 V RMS isolation between Ethernet port and internal system
Power Supply 24 VDC or 5 VDC @ 1.5 A
Ripple Content <50 mV p-p
Signal Inputs ESD1: 24 VDC @ 5 mA; ESD2: 5 VDC @ 10 mA; Reset: 24 VDC @ 10 mA
Connections RJ45 port for Ethernet; terminal blocks for power
Indicators LEDs for Power, Link, Activity, Status

4-20 mA HART Loop Protocol and Channel Isolation

Although primarily an Ethernet communication card, the 10018/E/1 integrates into FSC architectures where mixed analog and digital signals coexist. Channel-to-channel isolation is maintained through the isolated Ethernet interface, preventing electrical noise from propagating into adjacent control loops. This ensures deterministic communication with PlantScape servers while preserving the integrity of parallel 24 VDC control signals.

Frequently Asked Questions (FAQ)

Q: Can the 10018/E/1 module be hot-swapped during FSC operation? A: No. Power must be removed from the rack before insertion or removal to avoid backplane disruption.

Q: What is the difference between 10018/E/1 and 10018/E/E? A: The 10018/E/1 provides a single Ethernet interface, while the 10018/E/E variant provides two interfaces.

Q: How is isolation achieved on the Ethernet interface? A: The module uses 1500 V RMS isolation between the Ethernet port and the internal system.

Field Installation Guidelines

  • Install the module in designated FSC rack slots with full connector engagement.
  • Ensure Ethernet cabling is shielded and routed separately from high-voltage conductors.
  • Verify interface type (single or dual) before commissioning.
  • Ground chassis to cabinet earth to reduce induced noise.
  • Confirm environmental conditions meet specified operating and storage ranges.
  • Check LED indicators for link and activity status during commissioning.
