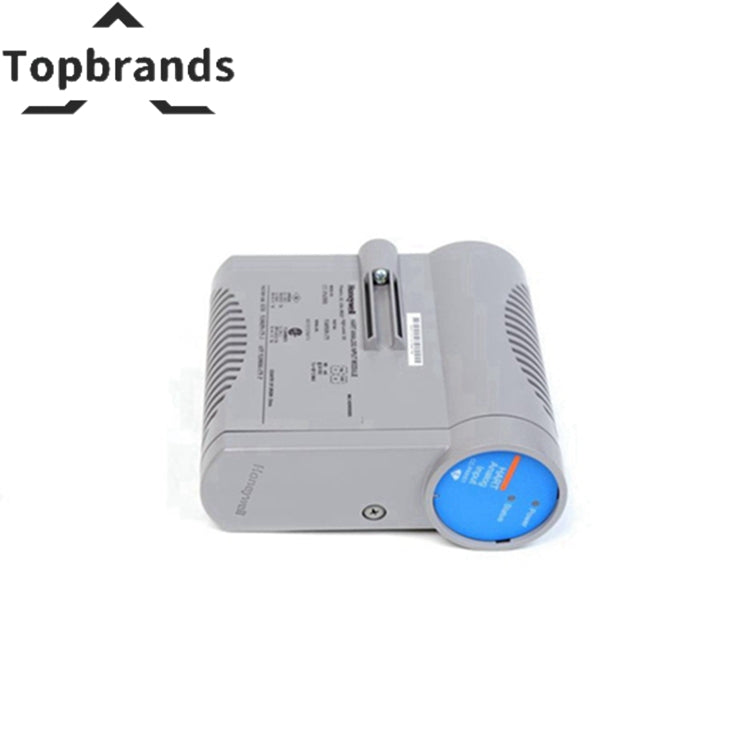

Honeywell CC-PAOH01 HART Analog Output Module

Product Information

• Manufacturer: Honeywell


• Product Type: Analog Output (AO) Module with HART


• Model: CC-PAOH01

FAILOPT Function:

Each channel can be configured to:

• Hold Last Value – maintains last output state

• Shed to Safe Value – outputs zero current (safe state) if device electronics fail

Model Variants:

• CC-TAOX01: Non-Redundant (6”)

• CC-TAOX11: Redundant (12”)

• CC-GAOX11: Redundant (12”)

• CC-GAOX21: Non-Redundant (6”)

Technical Specifications:

• Output Type: 4–20 mA

• Output Channels: 16

• Output Ripple: <100 mV peak-to-peak (across 250 Ω load)

• Output Temperature Drift: 0.005% of Full Scale/°C

• Output Readback Accuracy: ±4% of Full Scale

• Output Current Linearity: ±0.05% of Full Scale (nominal)

• Resolution: ±0.05% of Full Scale

• Calibrated Accuracy: ±0.35% of Full Scale at 25°C (including linearity)

• Settable Output Range: 0 mA, 2.9 mA–21.1 mA

• Maximum Resistive Load: 800 Ω (with 24 V supply = 22–28 VDC)

• Maximum Output Compliant Voltage: 16 V

• Maximum Open Circuit Voltage: 22 V

• Response Time: ≤80 ms (settles within 1% of final value)

• Redundant Switchover Gap: ≤10 ms (at 0 mA output)

Features:

• Extensive self-diagnostics

• Optional redundancy (IOTA models)

• HART-capable, supports multivariable instruments

• Multiple modems for rapid control data collection

• ConfigurableFAILOPT behaviors per channel (HOLD LAST VALUE or SAFE VALUE)

• Output read-back with alarm on discrepancy

• Non-incendive output design

• Open-wire detection with channel soft failure indication
