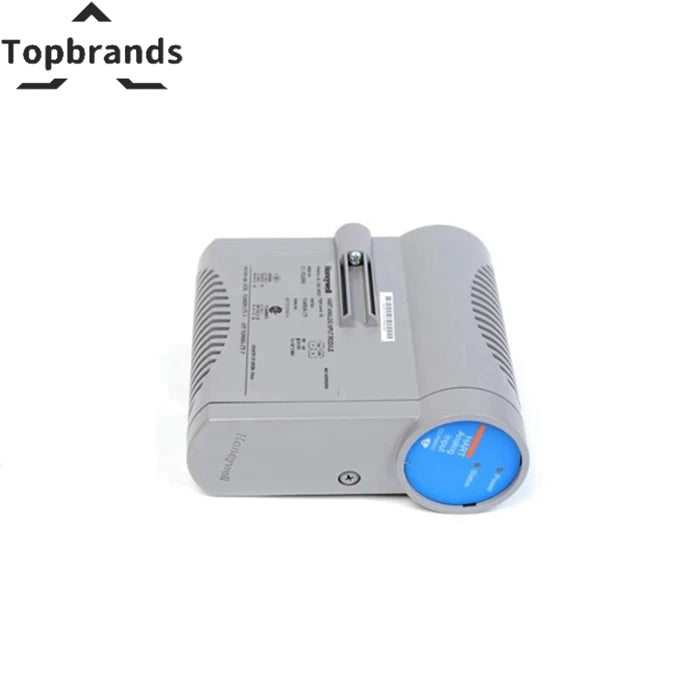

Honeywell CC-PUIO01 Universal Input Output Module in Stock

The detailed specifications for the Analog Input with HART:

• Input Type: Current (2, 3, or 4 wire devices)
• Input Channels: Up to 32 per module (with or without open wire detect)
• A/D Converter Resolution: 16 bit
• Input Range: 0-20 mA or 4-20 mA
• Normal Mode Rejection Ratio (at 60 Hz): 12 dB
• Normal Mode Filter Response: Single pole, -3 dB @ 16 Hz
• Crosstalk (channel-to-channel): 60 dB (dc to 60 Hz)
• Input Impedance: 250 Ω nominal
• Maximum Input Voltage: +36 VDC to -1.1 VDC
• Input Scan Rate: 50 ms
• Hardware Accuracy: 0.1% of full-scale (23.5 ± 2°C), 0.17% of full-scale (-40 to +70°C)
• Transmitter Field Power Conditioning: Current limited to 24 mA
• Input Filter: First-order low-pass 16 Hz (Channels 15, 16, 17, 18)
• Frequency Range: 0-10 kHz
• Minimum Pulse Width: 50 µs
• Output Type: 4-20 mA current loop
• Output Channels: Up to 32 per module (with or without open wire detect)
• Output Ripple: < 125 mV peak-to-peak at power line frequency, across 250 Ω load
• Output Temperature Drift: 0.001% of Full Scale/°C
• Output Readback Accuracy: 0.25% of full scale
• Output Current Linearity: ± 0.05% of Full Scale nominal
• Resolution: 12 bit
• Calibrated Accuracy: < 0.5% of Full Scale (25°C) including linearity
• Directly Settable Output Current Range: 0 mA to 23 mA
• Maximum Resistive Load: 700 ohms (24 V supply = 22 VDC through 28 VDC)
• Maximum Output Compliant Voltage: 14 VDC (24 V supply = 22 VDC through 28 VDC)
• Maximum Open Circuit Voltage: 24 VDC
• Response Time: 2 ms (DAC input code to output)
