Honeywell

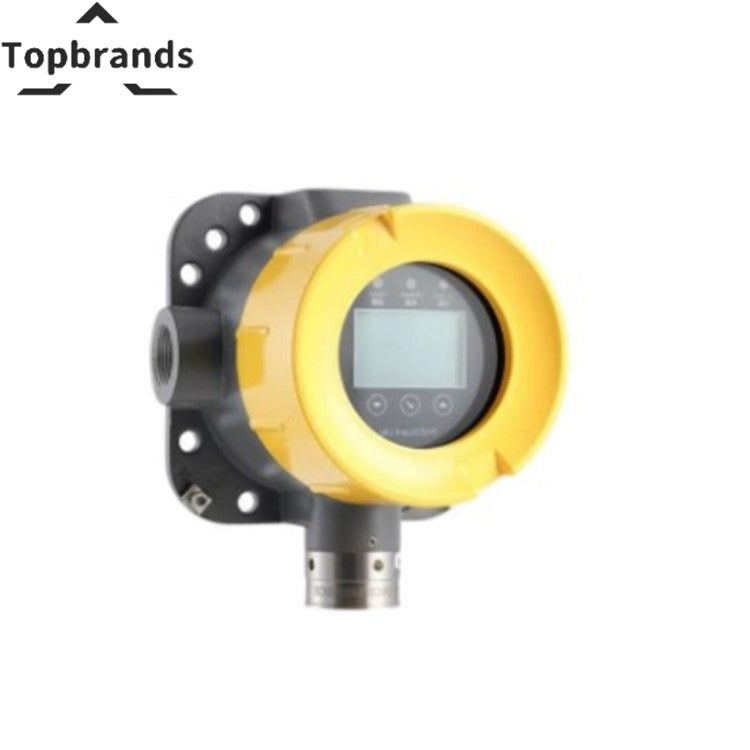

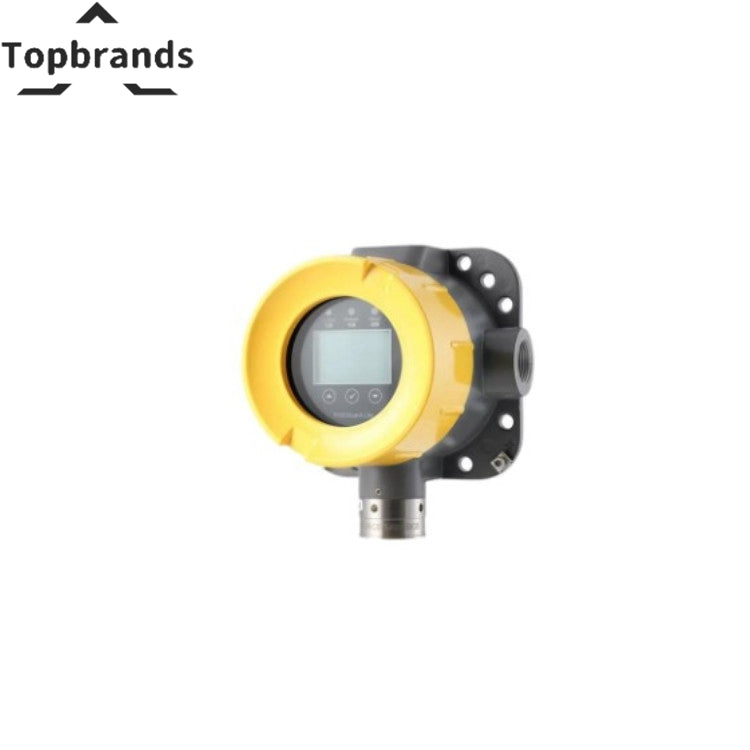

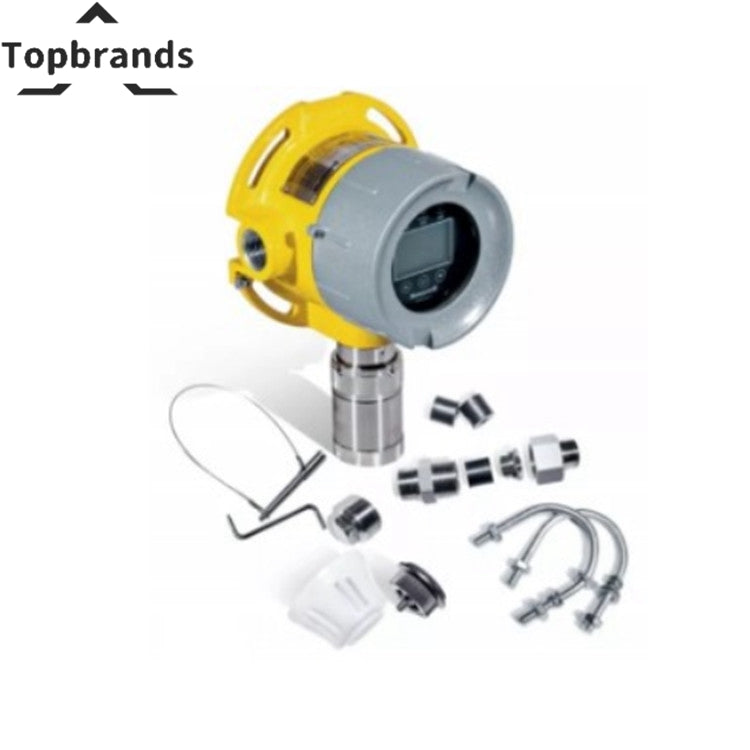

Honeywell FGM-6300S Fixed Gas Detector 100% Brand New

SKU FGM-6300S

  • Part Number:

    FGM-6300S

  • Manufacturer:

    Honeywell

  • Condition:

    Brand New & in Stock

  • Product Type:

    Fixed Gas Detector

  • Origin:

    USA

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Frequently inquire Together

100% Genuine Stock, 24/7 Service

Inquiry

Honeywell RAEGuard Lite Series Gas Detection System

The RAEGuard Lite series embodies Honeywell's advanced fixed product design principles, meticulously crafted to offer customers a safe and reliable choice for gas detection intelligence. This gas detector adopts an intelligent modular design, comprising transmitters and optional combustible gas, toxic gas, and oxygen sensors. It can be applied in indoor and outdoor hazardous environments, monitoring the level of harmful gases in real-time, and swiftly and effectively protecting installation sites and production personnel.

Technical Parameters:

  • Detection Principle: Catalytic Combustion/Electrochemical
  • Sampling Method: Diffusion
  • Operating Power: 24VDC (Normal Operating Voltage Range: 16-32VDC)
  • Typical Power: Electrochemical <1W; Catalytic Combustion 2W (Max 5W)
  • Output Signal: Standard fully configurable 4-20mA (source type), optional HART® 7.2 protocol
  • Load Impedance: 600Ω
  • Other Outputs: RS485, Modbus RTU, optional 3 relays (30VDC 5A), optional Bluetooth, Hart
  • Protection Level: IP66
  • Connectors: 2 3/4"NPT field wiring terminals, 1 M25 sensor connector
  • Terminal Blocks: 5 terminal blocks (models with relay outputs have 11); Wire diameter: 0.5mm²(20AWG) to 2.5mm²(13AWG)
  • Mounting: Wall or Pipe Mounting
  • Display: Large dot matrix LCD display
  • LEDs: 3 LED status, function indicator lights
  • Operating Temperature: -40°C to +70°C
  • Operating Humidity: LEL: 0-95%RH (non-condensing); Toxic gas and oxygen: 15%-95%RH (non-condensing)
  • Operating Pressure: 90-110kPa
  • Dimensions: 176mm x 157mm x 118.5mm (H x W x D)
  • Transmitter Material: Aluminum Alloy
  • Sensor Material: 316 Stainless Steel
  • Weight: Aluminum Alloy: Approx. 2.3kg
  • China Explosion-proof Certification: LEL: Ex db IIC T6 Gb Ex tb IIIC T80°C Ex db IIC T5 Gb Ex tb IIIC T90°C EC: Ex db IIC T6 Gb Ex tb IIIC T80°C
  • China Fire Certification: CCCF
  • China Metrology Certification: CPA
  • Lightning Protection Performance: Optional Surge (Lightning Protection Module): Interference Resistance Level 4 Compliant with GB/T17626.5-2008/IEC61000-4-5:2005
