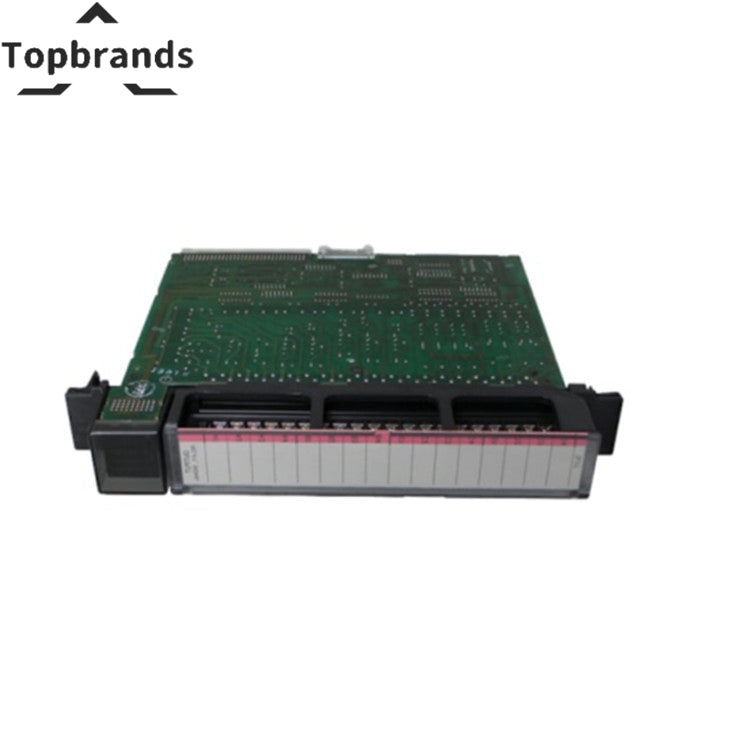

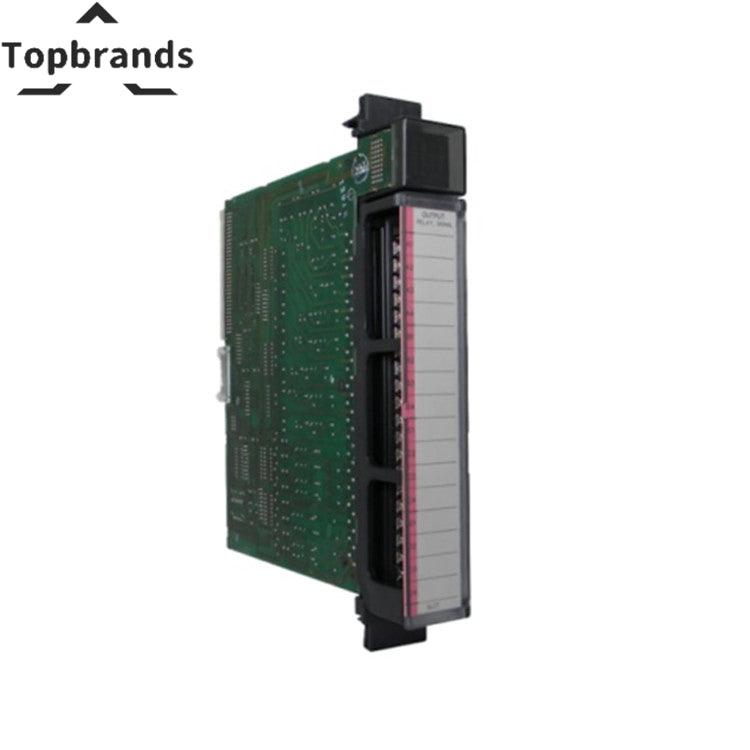

IC697MDL940 | GE Fanuc | Series 90-70 | Discrete Logic Output Module

Key Specifications:

• Rated Voltage:

  • 120/240 VAC or 5/24/125 VDC
  • Supports both AC and DC power configurations, providing flexibility in application.

• Number of Outputs:

  • 16 outputs in total
  • Configuration includes 8 Form C (SPDT) relays and 8 Form A (SPST) relays, offering versatility for different switching requirements.

• Maximum Load Current:

  • 16 amps per module (total across all outputs)
  • 4 amps per group (Form A relays), ensuring proper load distribution and management.

• Current Required:

  • 750 mA, indicating the current draw from the backplane power supply for operation.

• Frequency:

  • 47-63 Hz (AC only), suitable for standard AC power frequency ranges.

• DC Power Support:

  • Capable of operating with DC power sources, expanding its compatibility and application range.

• Mechanical and Electrical Design:

  • Relay Coil Energization: The module supplies power to energize relay coils, essential for switching operations.
  • Individual Fusing: Each output is individually fused, enhancing reliability and protecting against overcurrent conditions.
  • RC Snubber Suppression: RC snubbers are employed for each output, reducing voltage spikes and ensuring smooth operation of connected loads.
  • LED Indicators: Located at the top of the module, LED indicators provide clear ON-OFF status indication for each output point, aiding in diagnostics and troubleshooting.

• Programming and Configuration:

  • Software Compatibility: Configured using MS-DOS or Windows-based programming software compatible with platforms like Windows 95 or Windows NT.
  • Communication Protocol: Configurable over an Ethernet connection using the TCP/IP protocol, facilitating remote programming and monitoring.
  • Compatible Devices: Supports a wide range of programming devices from personal computers (PCs) to older IBM XT and AT systems, as well as PS/2 computers.
