ICS Triplex

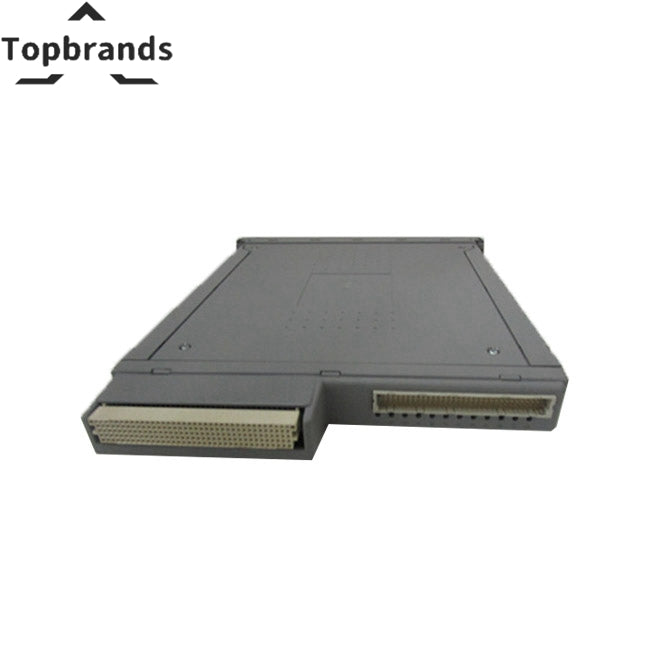

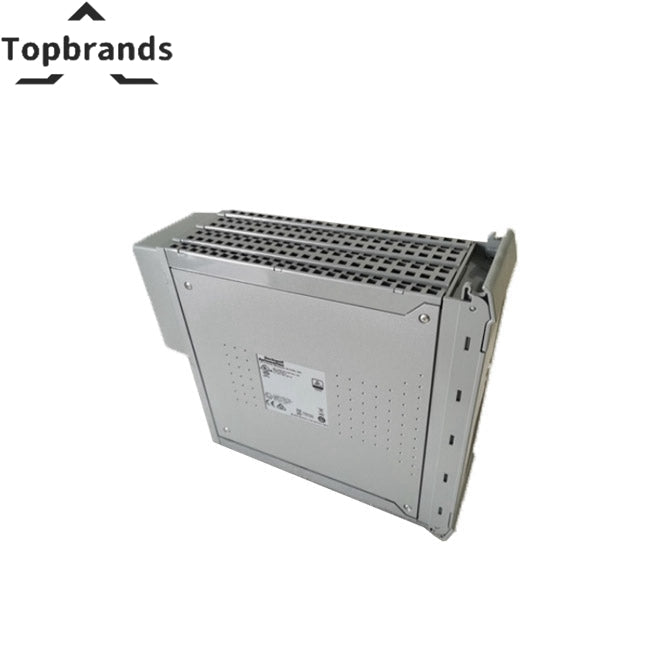

ICS Triplex T8403 Trusted TMR 24 Vdc Digital Input Module

SKU T8403

  • Part Number:

    T8403

  • Manufacturer:

    ICS Triplex

  • Condition:

    Brand New & in Stock

  • Product Type:

    Digital Input Module

  • Origin:

    USA

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Frequently inquire Together

100% Genuine Stock, 24/7 Service

Inquiry

ICS Triplex T8403 Trusted TMR 24 Vdc Digital Input Module

The ICS Triplex T8403, part of the Trusted 8000 Series, is a high‑integrity digital input module engineered for safety‑critical applications. It provides deterministic acquisition of discrete signals with configurable thresholds and robust isolation.

Hardware Specifications

Parameter Specification
Model T8403
Brand ICS Triplex
Module Location T8100, T8300 I/O slot
Inputs 40 digital channels
Backplane Supply 20–32 VDC, 20 W
Max Power Dissipation 29 W
Field Supply N/A
Input Impedance 5 kΩ
Measurement Range –6 to +36 VDC
Thresholds Configurable
Max Withstanding ±50 VDC
Safety Accuracy 0.5 VDC
Intrinsic Safety External barrier required
Event Resolution 1 ms
Timestamp Accuracy ±10 ms
Isolation – Field Common 50 V reinforced, 250 V basic, tested at 2436 VDC for 60 s
Channel Isolation None
Fusing None
Operating Temp 0 °C to +60 °C
Storage Temp –25 °C to +70 °C
Humidity 10–95% non‑condensing
Dimensions 266 × 31 × 303 mm
Weight 1.18 kg

Functional Behavior

  • TMR Architecture: Operates within the Trusted Triple Modular Redundant system, ensuring fault‑tolerant signal acquisition.
  • Configurable Thresholds: Allows tuning of input detection levels for varied field devices.
  • Sequence of Events: Provides 1 ms resolution with ±10 ms timestamp accuracy for event logging.
  • Isolation: Reinforced isolation protects against field common disturbances, though channels are not isolated from each other.
  • Safety Compliance: Requires external barriers for intrinsic safety in hazardous environments.

Frequently Asked Questions

  • Can channels be isolated individually? No, channel‑to‑channel isolation is not provided.
  • Is intrinsic safety built in? No, external barriers are required for hazardous area compliance.
  • What is the event resolution? 1 ms resolution with ±10 ms timestamp accuracy.
