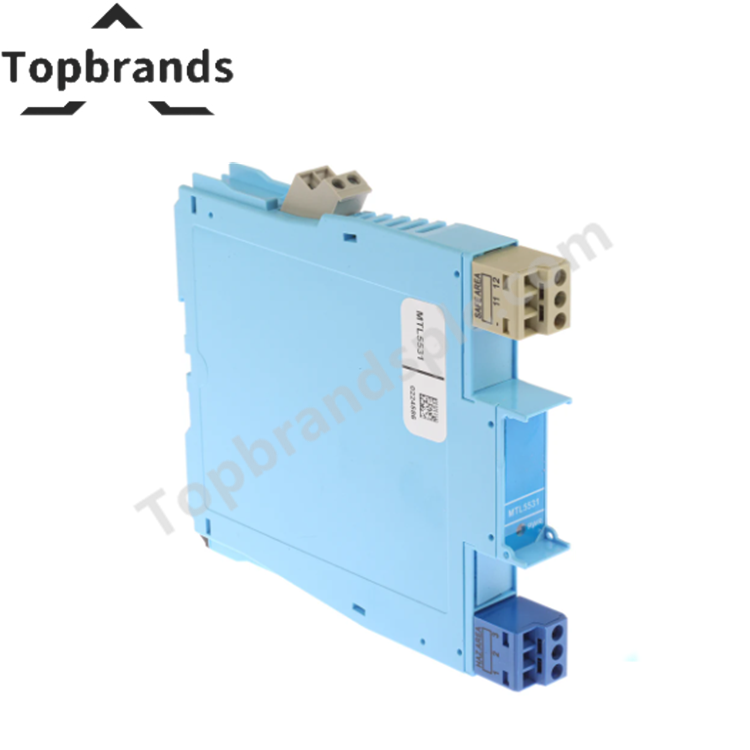

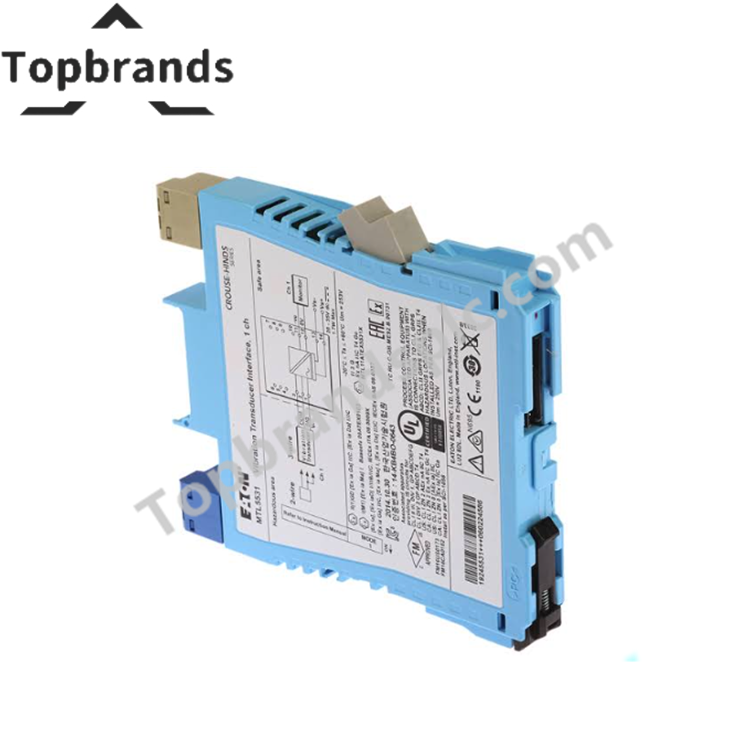

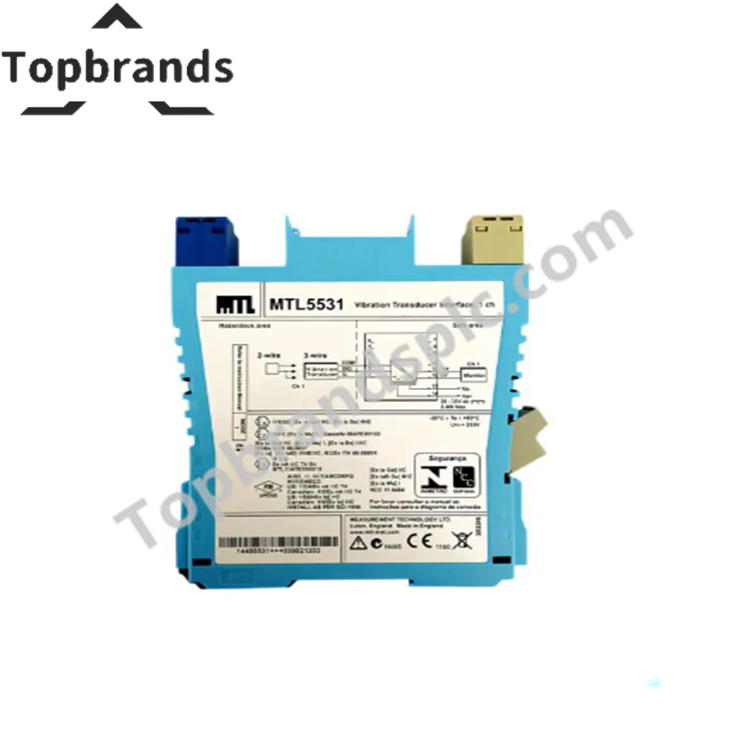

InquiryMTL5531 Vibration Transducer Interface
The MTL5531, also cataloged as the MTL5531 vibration transducer interface, serves as a single‑channel hardware unit for conditioning signals from 2‑ or 3‑wire vibration transducers in hazardous‑area monitoring networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MTL5531 |
| Brand | MTL Instruments |
| Origin | Not specified |
| Weight | 0.11 kg (unit), 2 kg (shipping) |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | 65 mA at 24 V (10 mA transducer load) |
| Channels | 1 |
| Sensor Type | 2‑ or 3‑wire vibration transducer |
| Hazardous Area Input | Zone 0, IIC, T4–6 (Div. 1, Group A) |
| Input Impedance | 10 kΩ (terminals 2 & 3) |
| Transducer Supply Current | 3.3 mA nominal (user selectable) |
| Signal Range | –20 V to –0.5 V |
| DC Transfer Accuracy | < ±50 mV at 20 °C |
| LED Indicator | Green – power |
| Supply Voltage | 20–35 VDC |
| Max Power Dissipation | 1.33 W |
| Product Type | Vibration Transducer Interface |
Eddy‑Current Probe Scaling & Cross‑Talk Suppression
The MTL5531 stabilizes vibration transducer signals through its 10 kΩ input impedance, which minimizes cross‑talk between adjacent hazardous‑area channels. Voltage scaling across the –20 V to –0.5 V range ensures consistent transfer accuracy, while shielded cabling and enclosure integrity suppress electromagnetic interference. This design preserves rotor‑dynamic fidelity in Zone 0 installations where multiple sensors operate in parallel.
Frequently Asked Questions
Q: Can the MTL5531 be replaced while energized? A: Mechanical removal is possible, but hazardous‑area certification requires a safe‑state condition before replacement. Live extraction is not recommended.
Q: How does the selectable transducer supply current affect sensor operation? A: The 3.3 mA nominal supply current supports standard 2‑wire vibration transducers. User selection ensures compatibility with 3‑wire devices without altering input impedance.
Q: Does cable length affect transfer accuracy? A: Excessive cable runs may introduce voltage drop and noise. The module’s input impedance stabilizes scaling, but shielded routing and compliance with certified lengths are recommended.
Field Installation Guidelines
Install the interface in certified enclosures suitable for Zone 0 or Div. 1 environments. Route sensor wiring separately from high‑voltage conductors to minimize induced noise. Maintain shield grounding at a single point to prevent circulating currents. Verify LED power indication before commissioning. Confirm input voltage scaling using a calibrated vibration transducer simulator. Observe hazardous‑area installation standards for connector sealing and cable armor integrity.
-
