Proximity Probe | Bently Nevada | 330103-00-09-10-02-00 | Brand New

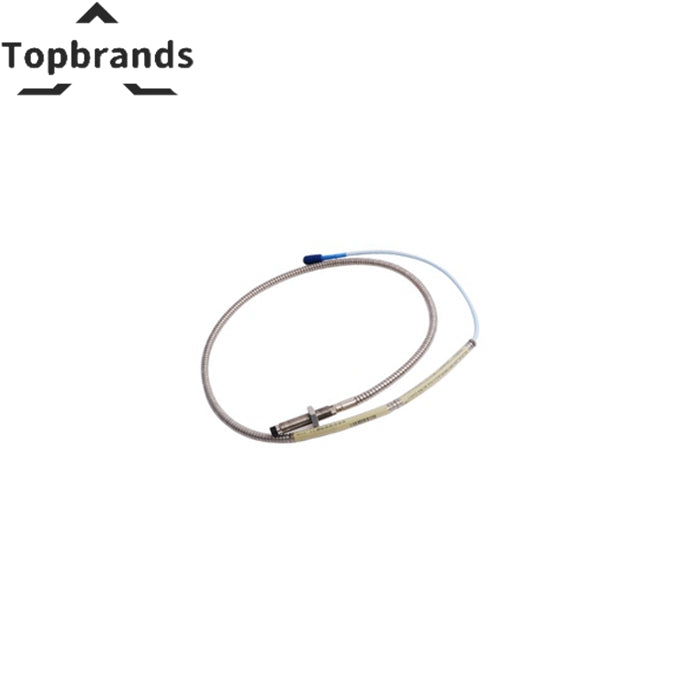

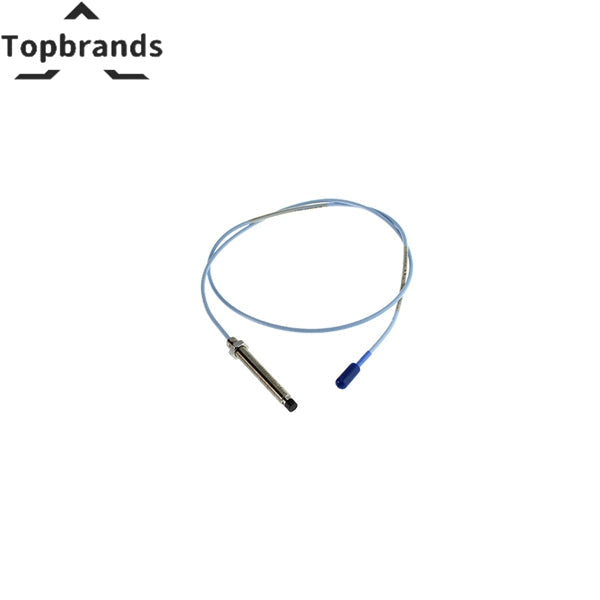

Bently Nevada 330103-00-09-10-02-00 Proximity Probe

• Model: 330103 - Proximity Probes
• Unthreaded Length Option: 00 - 0 mm
• Overall Case Length Option: 09 - 90 mm
• Total Length Option: 10 - 1.0 meter (3.3 feet)
• Connector and Cable Type Option: 02 - Miniature coaxial ClickLoc connector, standard cable
• Agency Approval Option: 00 - Not required
• Estimated Lead Time: 8 - 10 Weeks

Output: The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It can measure both static (position) and dynamic (vibration) values.

Applications: The primary applications of the system include vibration and position measurements on fluid-film bearing machines, Keyphasor reference, and speed measurements.

Improvements:

• The 3300 XL Proximitor Sensor incorporates various improvements over previous designs. Its physical packaging allows for high-density DIN-rail installations or traditional panel mount configurations.
• The 3300 XL probe and extension cable feature enhancements such as a patented TipLoc molding method for a more robust bond between the probe tip and body.
• The probe's cable includes a patented CableLoc design providing a secure attachment with 330 N (75 lbf) pull strength.
