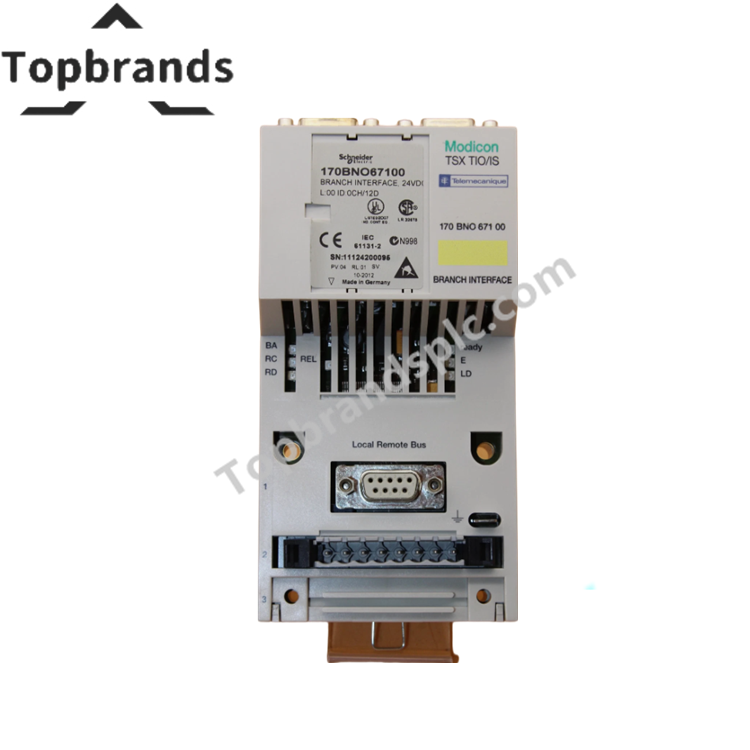

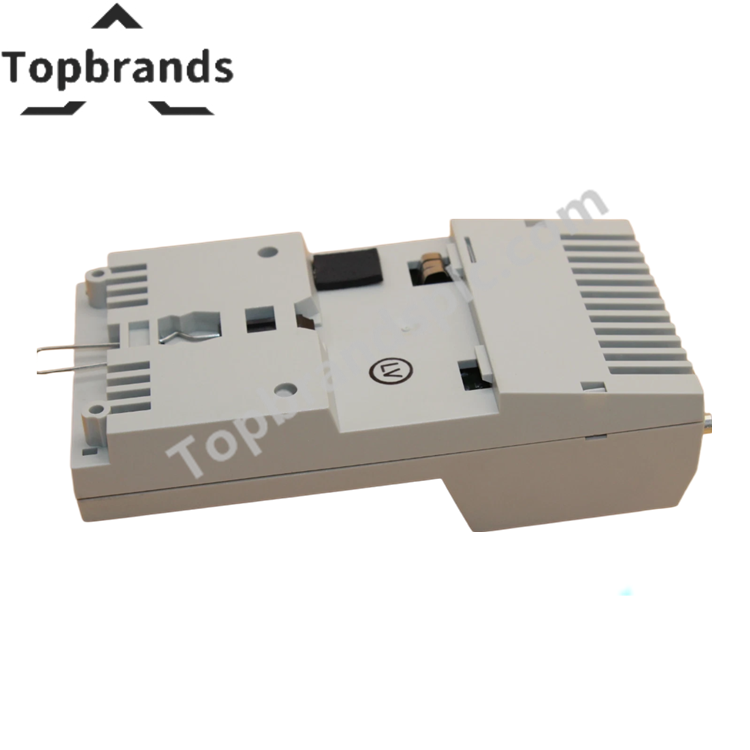

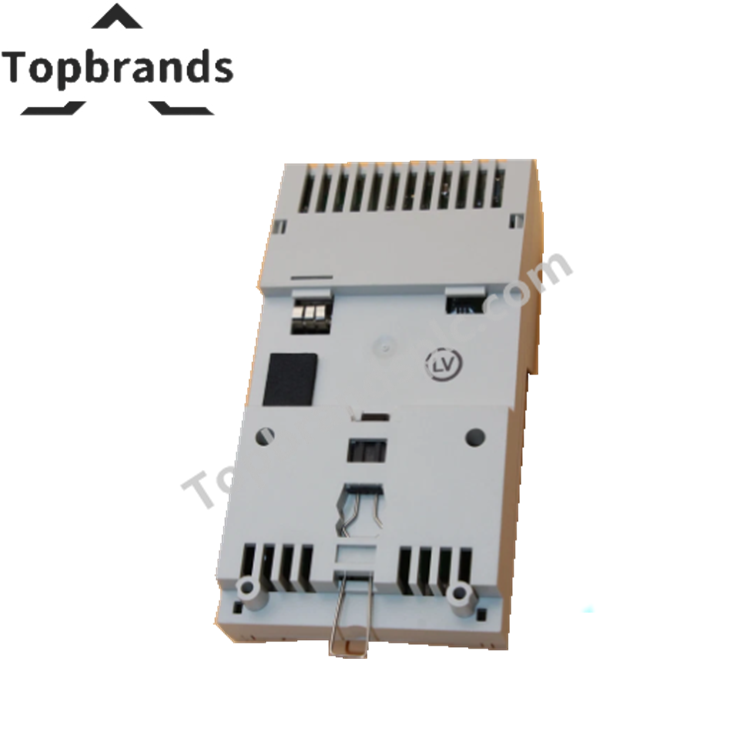

Schneider 170BNO67100 Branch Interface

Product Information

• Range of Product: Modicon Momentum automation platform

• Accessory / Separate Part Designation: Branch interface

• Accessory / Separate Part Type: Interface

• Accessory / Separate Part Category: Connection accessories

• Accessory / Separate Part Destination: Interbus communication adaptor

• Communication Port Protocol: Interbus generation SUPI 2

Complementary

• Rated Supply Voltage [Us]: 24 V DC

• Output Current Limits: 0.2–2 A

• Power Dissipation: 2.5 W

• Current Consumption: 100 mA

• Electrical Connection:

• 1 × RS485 connector RJ45 for incoming remote bus

• 1 × RS485 connector RJ45 for outgoing remote bus

• 1 × terminal block 8

• Local Signalling:

• 1 LED (green) remote bus check (RC)

• 1 LED (green) bus active (BA)

• 1 LED (green) local remote bus branch disabled (LD)

• 1 LED (green) ready for operation (Ready)

• 1 LED (green) relay output (REL)

• 1 LED (red) remote bus branch error (E)

• 1 LED (red) remote bus disabled (RD)

• Net Weight: 0.033 lb (0.015 kg)

Environment

• Standards: DIN 19258

Ordering and Shipping Details

• Category: 18206 – Momentum processors, I/O bases, connectors

• Discount Schedule: PC31

• GTIN: 3595862089319

• Returnability: No

• Country of Origin: DE
