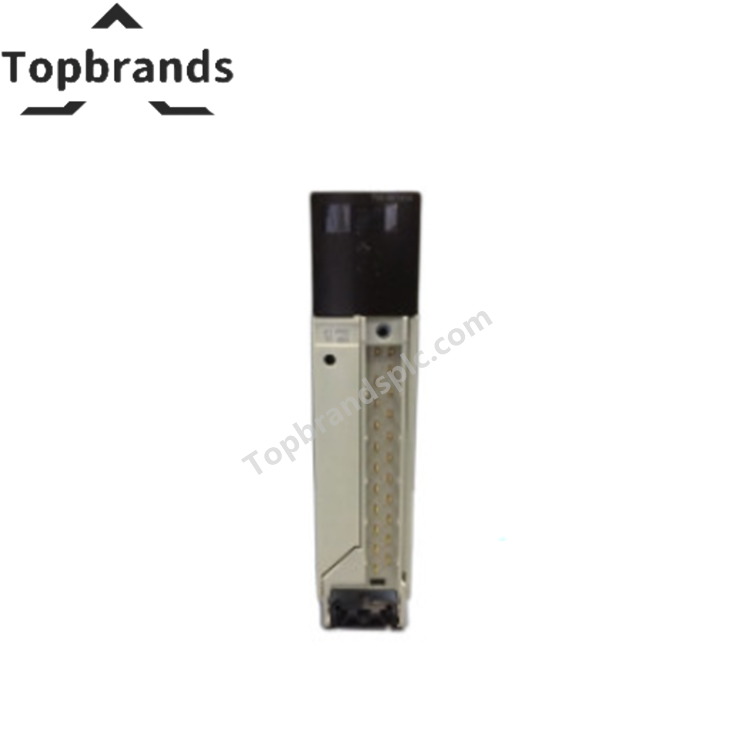

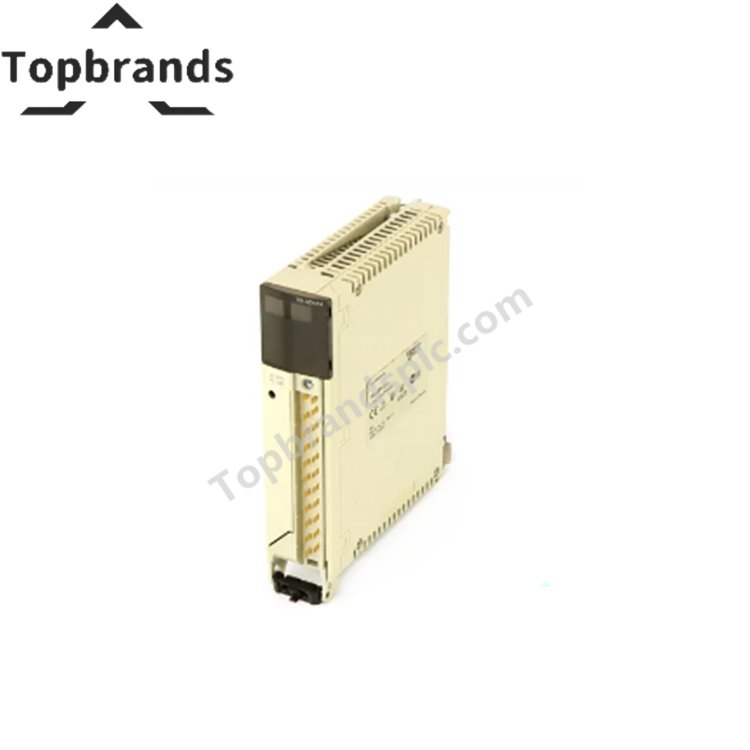

Schneider TSXAEY414 Analog Input Module

Main

• Range of Product: Modicon Premium Automation Platform
• Product Type: Analog Input Module
• Input Level: Low Level
• Number of Analog Inputs: 4
• Analog Input Types:
  • Current: 4...20 mA
  • Voltage: ±10 V, 0...10 V, 0...5 V, 1...5 V, -13...63 mV, ±5 V
  • Thermocouple: B, E, J, K, L, N, R, S, T, U
  • Resistor: 0...3850 Ω, 0...400 Ω
  • Temperature Probe: Ni 1000 (2-wire, 4-wire), Pt 100 (2-wire, 4-wire), Pt 1000 (2-wire, 4-wire)
• Analog/Digital Conversion: 16 bits

Complementary

• Nominal Read Cycle Time: 550 ms
• Measurement Error (at 25°C):
  • Voltage:
    • ±0.16% (0...10 V)
    • ±0.19% (-13...63 mV)
    • ±0.22% (0...5 V)
    • ±0.27% (±10 V, ±5 V, 1...5 V)
  • Current:
    • ±0.45% (4...20 mA)
  • Resistor:
    • ±0.13% (0...400 Ω)
    • ±0.22% (0...3850 Ω)
  • Temperature Probes & Thermocouples: Various accuracy levels from 1.0°C to 12.0°C
• Isolation Voltage:
  • 1780 Vrms (Between Channels & Bus)
  • 1780 Vrms (Between Channels & Ground)
  • 2830 Vrms (Between Channels)
• Common Mode Voltage:
  • 415 V AC / 200 V DC (Between Channels)
  • 240 V AC / 110 V DC (Between Channels & Earth)
• Input Overvoltage Protection:
  • -15…15 V at State 0 (250 Ω)
  • -30…30 V at State 1 (250 Ω)
• Overcurrent Protection: -30…30 mA at State 1 (250 kΩ)
• Electrical Connection: Screw Terminal Block
• Current Consumption: 660 mA at 5 V DC
• Module Format: Standard
• Marking: CE
• Product Weight: 0.71 lb (0.32 kg)

Environmental Specifications

• Standards Compliance: DIN 43760, IEC 584, IEC 751, DIN 43710, NFC 42-330, IEC 1131
• Certifications: DNV, BV, ABS, RMRS, RINA, GL, LR
• Operating Temperature: 0…60°C (32…140°F)
• Storage Temperature: -25…70°C (-13…158°F)
• Relative Humidity:
  • 10…95% (Operation, Non-Condensing)
  • 5…95% (Storage, Non-Condensing)
• Operating Altitude: 0...2000 m (0...6561.68 ft)
• Protective Treatment: TC
• IP Rating: IP20
• Pollution Degree: 2

Ordering & Shipping Details

• Category: 22558-TSX PREMIUM, ATRIUM & PL7 PRO
• Discount Schedule: PC22
• GTIN: 3389110756951
• Returnability: No
• Country of Origin: France (FR)
