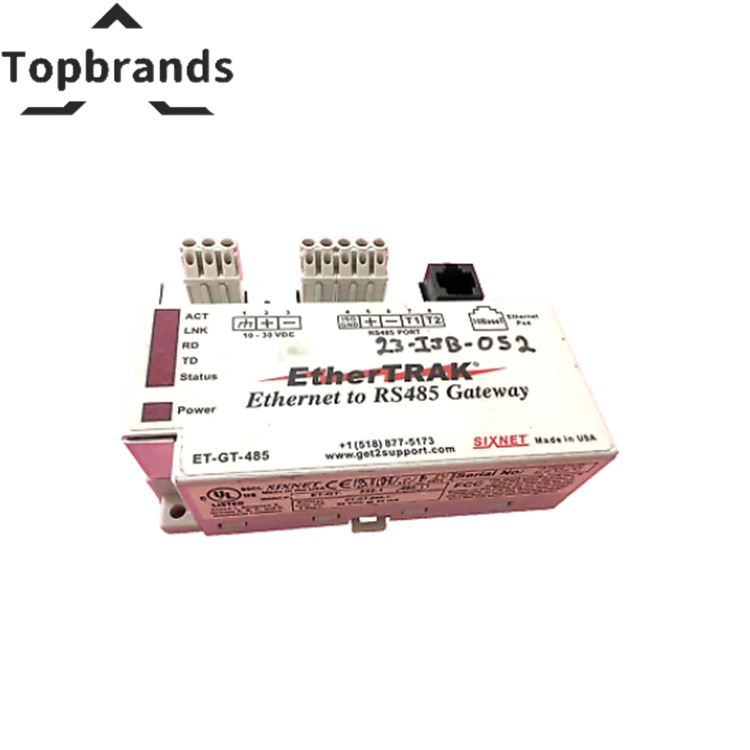

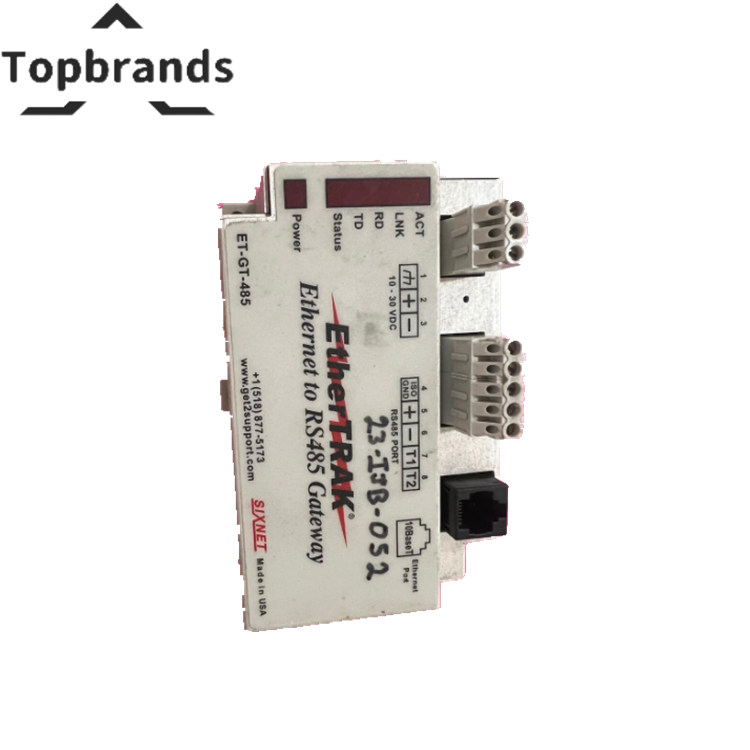

SIXNET ET-GT-485-1 Industrial Modbus Gateways

TROUBLE-FREE OPERATION

• Ultra-rugged and reliable: Designed for harsh environments with a wide operating temperature range from -30°C to +70°C, no fans required.
• Certifications: UL/CSA (CUL), CE, and HazLoc (Zone 2) rated for enhanced safety in hazardous areas.

ETHERNET PERFORMANCE

• Unmanaged, store & forward, wire-speed Ethernet performance.
• Ethernet Port: 10BaseT at 10Mbps.
• Protocols: TCP/IP or UDP.
• Ethernet Isolation: 1500 VRMS for 1 minute.
• IEEE 802.3: Complies with 10Mbps Ethernet standards.

SERIAL PERFORMANCE

• Protocols: Supports Sixnet, Modbus ASCII, Modbus RTU, and others.
• RS232 Port: Includes TD, RD, RTS, CTS, DTR, and GND connections.
• RS485 Port: 2-wire (TD, RD, GND).
• Max Baud Rate: 115,200 for ET-GT-232, 57,600 for ET-GT-485.
• Max. Number of RS-485 Devices: Up to 32 devices.
• RS485 Cable Distance:
  • 1 km with 24 AWG wire at 57,600 baud.
  • 2 km with 24 AWG wire at 38,400 baud.
  • 3.5 km with 18 AWG wire at 19,200 baud.
• RS485 Isolation: 1200 VRMS for 1 minute.

POWER INPUT

• Required Supply Voltage: 10-30 VDC.
• Input Power: 0.5 watt typical.

ENVIRONMENTAL

• Operating Temperature: -30 to +70°C (cold startup at -30°C).
• Storage Temperature: -40 to +85°C.
• Humidity: 5 to 95% RH (non-condensing).
• Vibration and Shock Compliance: Meets IEC60068-2-6, -27, -32 standards.

STANDARDS COMPLIANCE

• Electrical Safety: UL508 / CSA C22.2/14.
• EMC Compliance: FCC part 15, ICES-003.
• Hazardous Locations: UL1604 / CSA C22.2/213 (Class I, Div. 2).

PHYSICAL

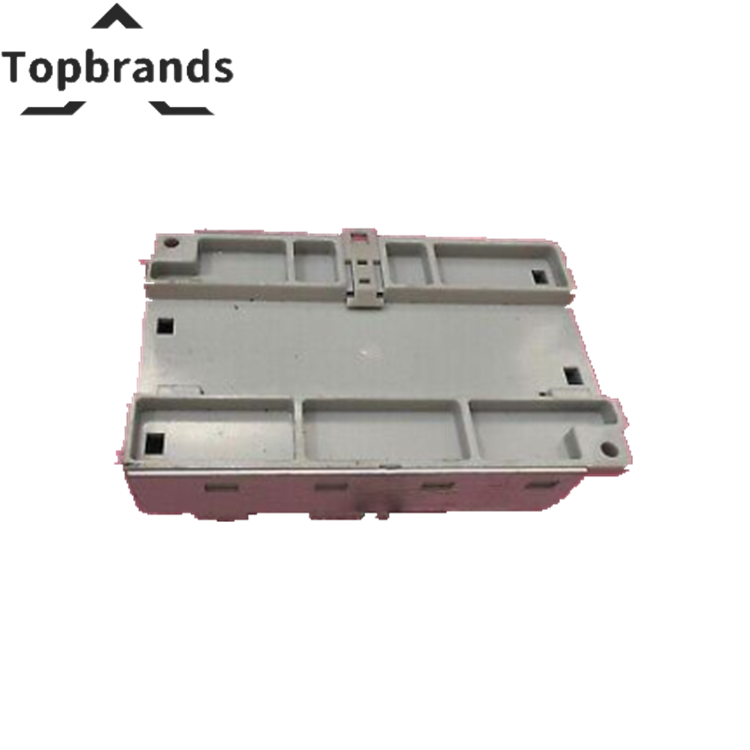

• Mounting Options: DIN rail or direct mounting.
• Case Material: Aluminum and Lexan.
• Ingress Protection: IP30.
• Weight: 10 oz (0.28 kg).
