Yokogawa ATB5D-00 Dual Pressure Clamp Terminal Board

SKU ATB5D-00

  • Part Number:

    ATB5D-00

  • Manufacturer:

    Yokogawa

  • Condition:

    Brand New & in Stock

  • Product Type:

    Pressure Clamp Terminal Block

  • Origin:

    Japan

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Frequently inquire Together

100% Genuine Stock, 24/7 Service

Inquiry

Yokogawa ATB5D-00 Dual Pressure Clamp Terminal Board

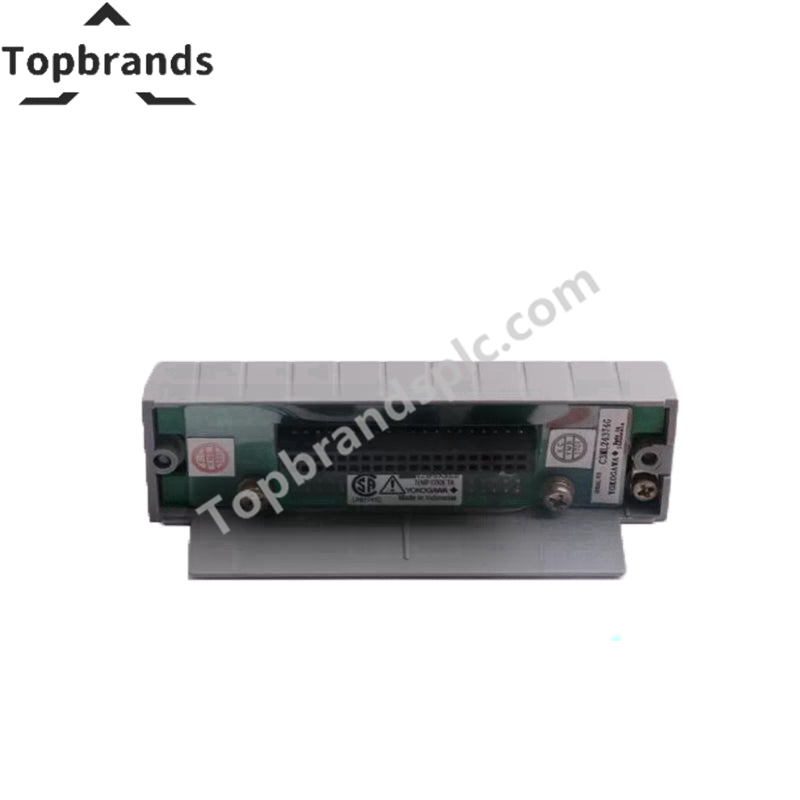

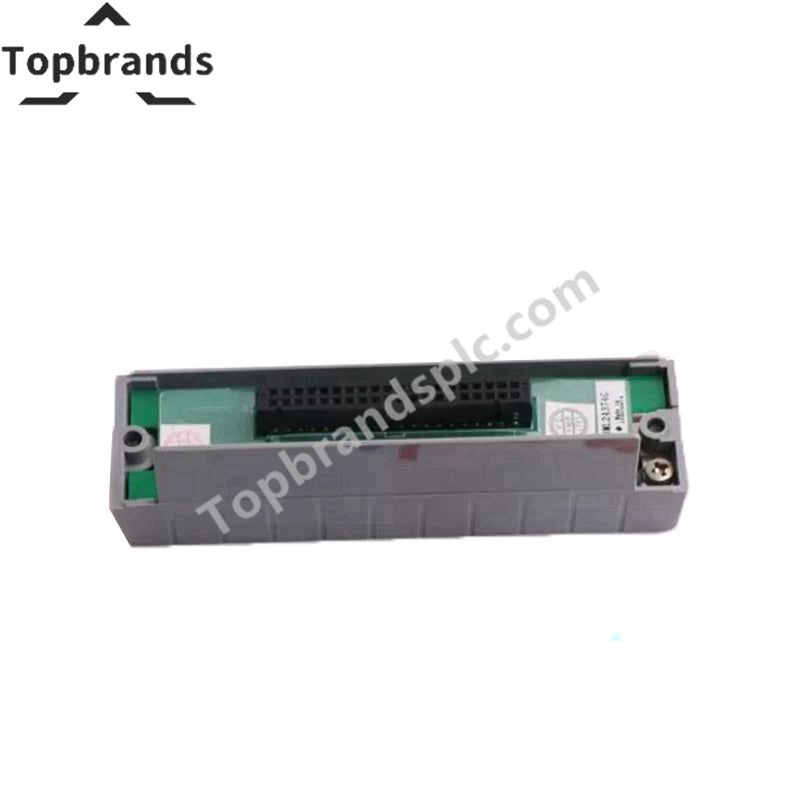

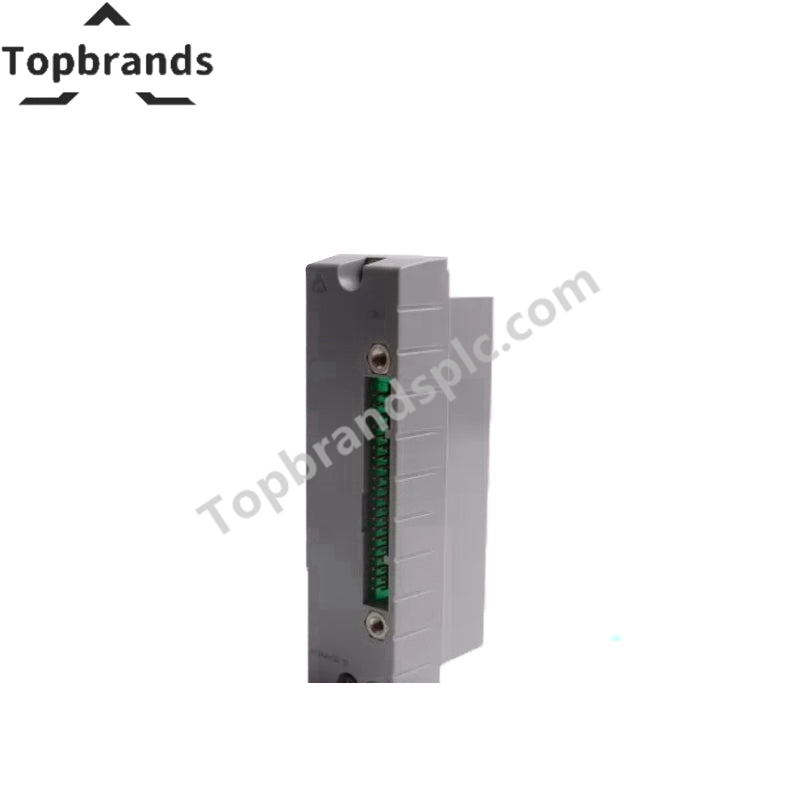

The Yokogawa ATB5D-00 is a dual pressure clamp terminal board designed for secure and reliable digital signal termination in Yokogawa control systems.

Hardware Specifications

Parameter Specification
Model Code ATB5D-00
Brand Yokogawa
Type Dual Pressure Clamp Terminal Board
Channels 32 channels
Compatible Modules Digital Input Modules (e.g., ADV151)
Connection Method Dual pressure clamp mechanism for reliable signal splitting or parallel connections
Cable Connection Dedicated KS cable (e.g., KS1)
Mounting Type DIN rail mounting
Withstanding Voltage 500 VAC for 1 minute (between terminals and ground)
Insulation Resistance ≥10 MΩ at 500 VDC
Operating Temp 0 °C to 60 °C (32 °F to 140 °F)
Operating Humidity 10% to 90% RH, non-condensing
Storage Temp -20 °C to 80 °C (-4 °F to 176 °F)

Functional Highlights

  • Dual pressure clamp ensures secure conductor retention without screw torque requirements.
  • 32-channel capacity supports high-density digital input wiring.
  • ADV151 compatibility allows direct integration with Yokogawa digital input modules.
  • DIN rail mounting provides quick installation and alignment in control panels.
  • KS cable interface ensures deterministic connectivity to I/O modules.

Field Installation Guidelines

  • Mount the board securely on DIN rails to ensure proper alignment with adjacent I/O modules.
  • Insert conductors fully into the dual pressure clamp terminals before engaging the mechanism.
  • Use KS-series cables for module connectivity, ensuring proper strain relief.
  • Maintain insulation resistance by inspecting terminals for contamination or oxidation.
  • Verify grounding continuity between terminal groups and system ground.
  • Keep ambient conditions within specified operating temperature and humidity ranges.
