Choosing the Right PLC System: Sizes, Features, and Industrial Applications

Key Factors in Selecting a PLC for Industrial Automation

Selecting a programmable logic controller (PLC) requires evaluating several technical and operational criteria. These include:

• PLC size and I/O capacity

• Memory and processing speed

• Scan time and system responsiveness

• Cost and scalability

Each factor influences how well the PLC integrates into factory automation, DCS, or control systems. Therefore, engineers must assess both current and future requirements before finalizing a selection.

Understanding PLC Sizes and I/O Capabilities

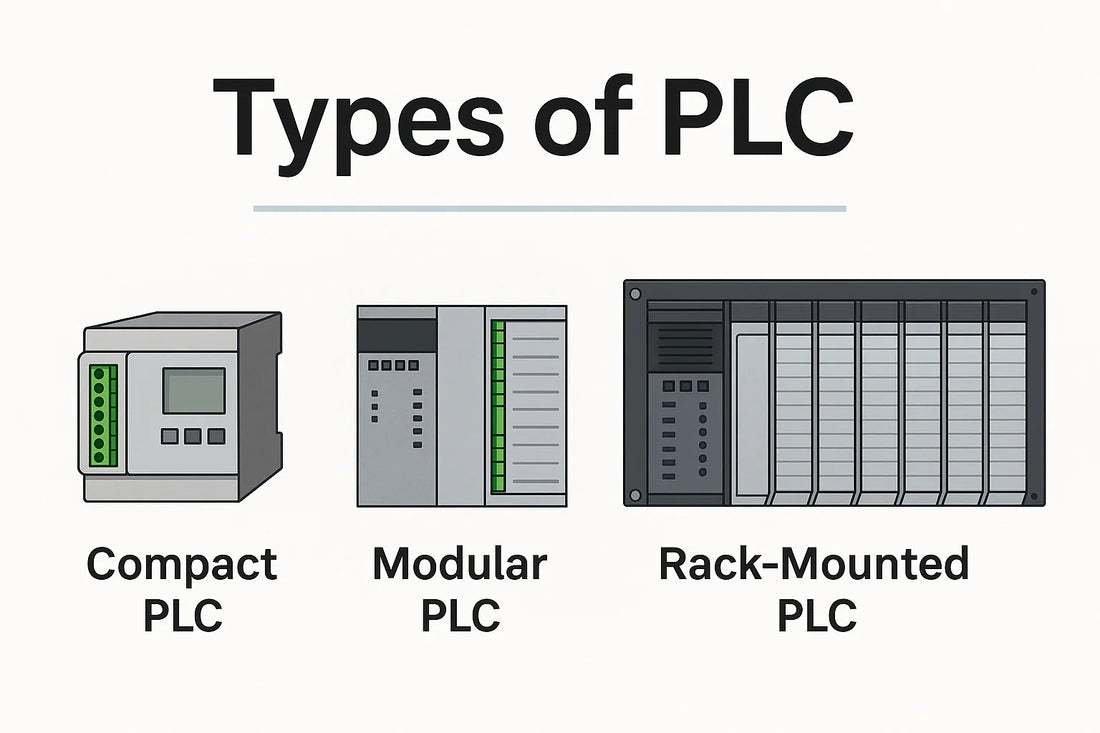

The size of a PLC is primarily defined by its input/output (I/O) capacity. PLCs are categorized as follows:

Compact PLCs often support expansion via ribbon cables. Modular PLCs allow additional I/O modules to be added as needed, offering greater flexibility for industrial automation systems.

Memory and Processing Considerations in PLC Systems

PLC memory stores control programs, I/O addresses, coil data, and instruction libraries. Memory size is measured in words, where:

• 1 word = 2 bytes = 16 bits

• 6K memory = 6 × 1024 words

For example, an 8‑bit PLC with 6K memory holds 49,152 bits, while a 32‑bit PLC stores 196,608 bits. The number of rungs and I/O points in the program directly affects memory usage. Therefore, engineers must size memory based on application complexity.

Standalone PLC Applications in Factory Automation

Standalone PLCs control single processes with one controller managing all I/O interactions. These systems are ideal for small‑scale automation tasks such as:

• Packaging machines

• HVAC control

• Basic conveyor systems

They offer simplicity and cost efficiency but limited scalability.

Multi‑Task PLC Systems for Distributed Control

Multi‑task PLC applications involve multiple controllers managing different tasks simultaneously. This setup improves performance and fault isolation. Common use cases include:

• Assembly line coordination

• Material handling systems

• Multi‑zone temperature control

Moreover, modular PLCs enable easy expansion as operational needs evolve.

Control Management Using Large‑Scale PLC and DCS Systems

Control management applications require high‑capacity PLCs or DCS platforms. These systems connect multiple PLCs via Ethernet, TCP/IP, or serial communication. A master PLC coordinates updates and responses across the network.

Industries using this architecture include:

• Oil and gas refineries

• Power generation plants

• Water treatment facilities

These systems demand robust memory, fast scan times, and high I/O density to maintain operational integrity.

Expert Commentary: Trends in PLC Deployment

In my experience, modular PLCs dominate industrial automation due to their scalability and integration flexibility. As factories adopt smart manufacturing and IIoT strategies, PLCs must support real‑time diagnostics, remote access, and seamless expansion.

Moreover, memory and I/O planning remain critical. Undersized PLCs lead to performance bottlenecks, while oversizing increases cost. Engineers should anticipate future growth and select PLCs that balance capacity with efficiency.

Solution Scenarios for PLC Selection

Here are practical examples of PLC deployment based on system size:

• Nano PLC: Used in vending machines and small motor control

• Micro PLC: Ideal for compact packaging lines

• Small PLC: Supports mid‑range process control in food and beverage plants

• Medium PLC: Manages multi‑zone HVAC and lighting systems

• Large PLC: Controls refinery subsystems and power plant auxiliaries

• Very Large PLC/DCS: Centralized control in petrochemical and utility sectors
