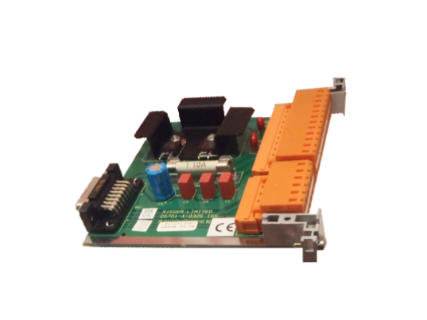

Honeywell 05701-A-0325 Input Card: Unlocking High-Density Signal Processing

Why Reliability Matters in Industrial Automation

In the world of Distributed Control Systems (DCS), reliability is not just a design goal—it is the foundation of safe and efficient plant operations. Every component, from controllers to operator stations, must withstand harsh industrial conditions. Among these, I/O modules play a critical role because they directly capture signals from thousands of field sensors. The Honeywell 05701-A-0325 input card is engineered to meet this challenge, offering a compact yet powerful solution for high-density signal acquisition.

Understanding the 05701-A-0325 Input Card

The Honeywell 05701-A-0325 is a high-density analog input module designed for legacy and classic Honeywell DCS platforms. Unlike processor modules, it focuses exclusively on front-end signal acquisition. With support for 16 or 32 analog channels, it processes signals such as 4–20 mA loops, thermocouples, and RTDs, converting them into digital data for the controller. This design reduces cabinet space requirements and simplifies wiring, making it ideal for large-scale automation projects.

Solving the Challenge of High-Density Signals

Traditional low-density input cards often lead to oversized cabinets, complex wiring, and higher costs. The 05701-A-0325 addresses these issues by integrating more channels per card. As a result:

• Cabinet space is minimized with fewer modules required.

• Installation costs are reduced due to simplified wiring.

• System reliability improves because fewer components mean fewer potential failure points.

• Integration becomes easier, supporting scalable expansion in complex plants.

Key Technical Features

Honeywell designed the 05701-A-0325 with advanced features to ensure accuracy and durability:

• High channel integration: Independent conditioning circuits and A/D converters for each channel.

• Onboard intelligence: A microprocessor handles preliminary data processing, easing the controller’s workload.

• Robust isolation: Optical or magnetic isolation prevents grounding loops and protects against EMI.

• Diagnostics and hot-swap support: Enables fault detection and, in some systems, replacement without shutdown.

• Industrial-grade durability: Built to withstand extreme temperatures, humidity, and vibration.

Application Areas

This input card is widely used in industries where large-scale signal acquisition is essential:

• Petrochemical plants: Monitoring temperature, pressure, and flow in refining and cracking processes.

• Power generation: Supervising turbines, boilers, and auxiliary systems.

• Pharmaceuticals and food production: Ensuring strict process control and compliance with quality standards.

• Metallurgy, papermaking, and water treatment: Managing continuous process signals with precision.

Benefits for Industrial Automation

• Space and cost efficiency: Fewer cards reduce cabinet footprint and installation expenses.

• Improved reliability: Isolation and diagnostics minimize downtime risks.

• Simplified engineering: Modular design supports easy configuration and expansion.

• Data integrity: High precision ensures accurate control and decision-making.

Spare Parts Strategy and Lifecycle Management

For critical modules like the 05701-A-0325, spare parts management is essential. Maintaining a strategic inventory ensures quick replacement during failures, reducing Mean Time To Repair (MTTR). Users should also monitor Honeywell’s lifecycle updates, plan timely procurement, and prepare for system upgrades or migrations. Regular testing of spare modules further ensures readiness and reliability.

Practical Scenarios

• Oil & Gas: Reliable acquisition of thousands of process signals.

• Energy: Continuous monitoring of critical power plant systems.

• Pharma/Food: Compliance with strict quality and safety standards.

• Process Industries: Optimized control in large-scale production environments.
