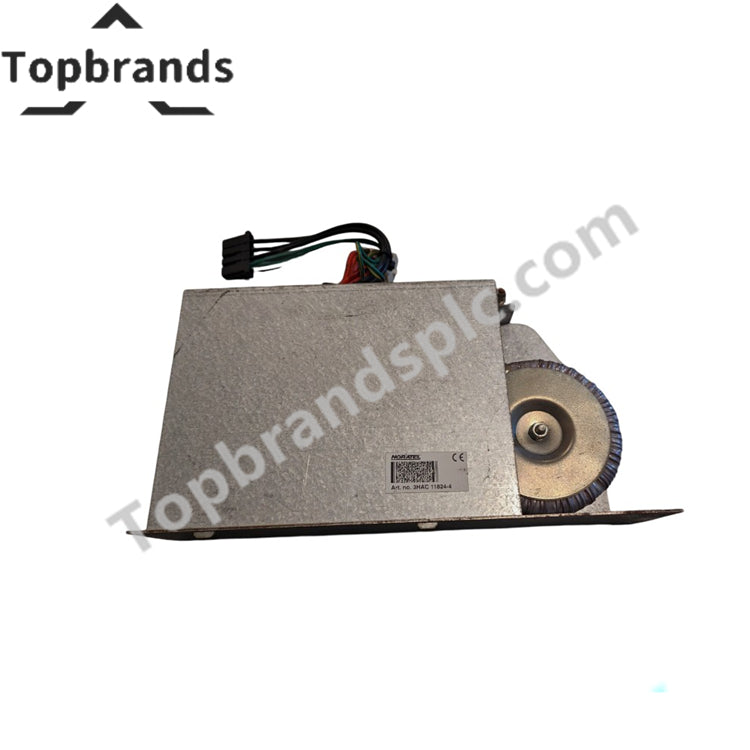

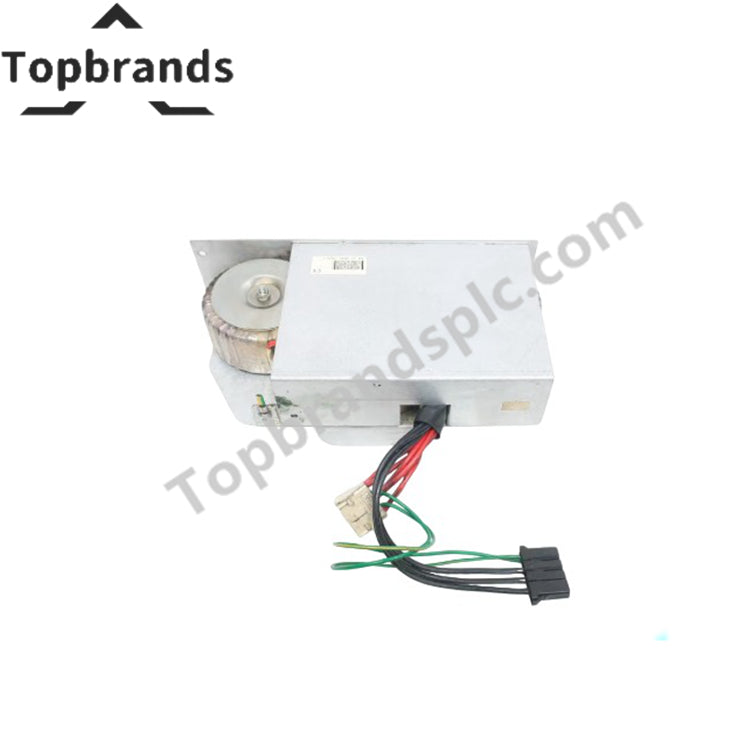

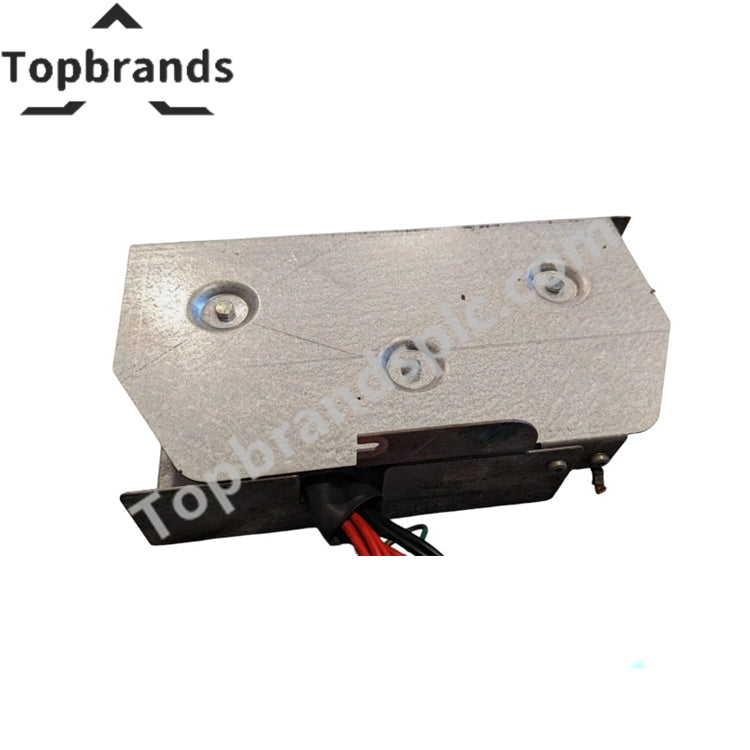

InquiryABB 3HAC11824-4 Choke Filter
The ABB 3HAC11824-4, also cataloged as the 3HAC11824-4 choke filter, operates as a dedicated inductor-based filter for suppressing high-frequency EMI/RFI interference within ABB S4C+ robotic control cabinets.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3HAC11824-4 |
| Brand | ABB |
| Origin | Sweden |
| Weight | ~9.0 kg |
| Dimensions | Heavy-duty inductor form factor |
| Operating Temp | Not specified |
| Power Consumption | Passive component (not applicable) |
| Device Type | Choke filter / inductor filter |
| System Compatibility | ABB S4C+ robot control cabinet |
| Function | Suppression of EMI/RFI, harmonic current reduction, power stabilization |
I/O Density Scaling
The 3HAC11824-4 choke filter integrates into ABB robotic control systems to stabilize power supply and reduce harmonic distortion. Its heavy iron-core design provides sufficient inductance to handle high working currents. By suppressing cross-talk and stabilizing bus communication, the filter ensures deterministic operation of drives and control modules. This contributes to improved I/O density scaling within compact robotic control architectures.
Frequently Asked Questions
Q: Can the choke filter be hot-swapped during operation? A: No, the filter must be installed or replaced with system power isolated to prevent transient surges.
Q: How does the filter reduce harmonic distortion? A: The inductive core attenuates high-frequency currents, limiting harmonic propagation into the control system.
Q: Is firmware or configuration required? A: No, the choke filter is a passive hardware component with fixed inductive properties.
Field Installation Guidelines
- Secure the filter mechanically within the S4C+ cabinet to support its 9 kg weight.
- Ensure proper grounding of the filter housing to minimize EMI leakage.
- Maintain clearance around the iron-core assembly for heat dissipation.
- Route cabling through the filter according to ABB wiring diagrams.
- Isolate system power before installation or replacement.
-
