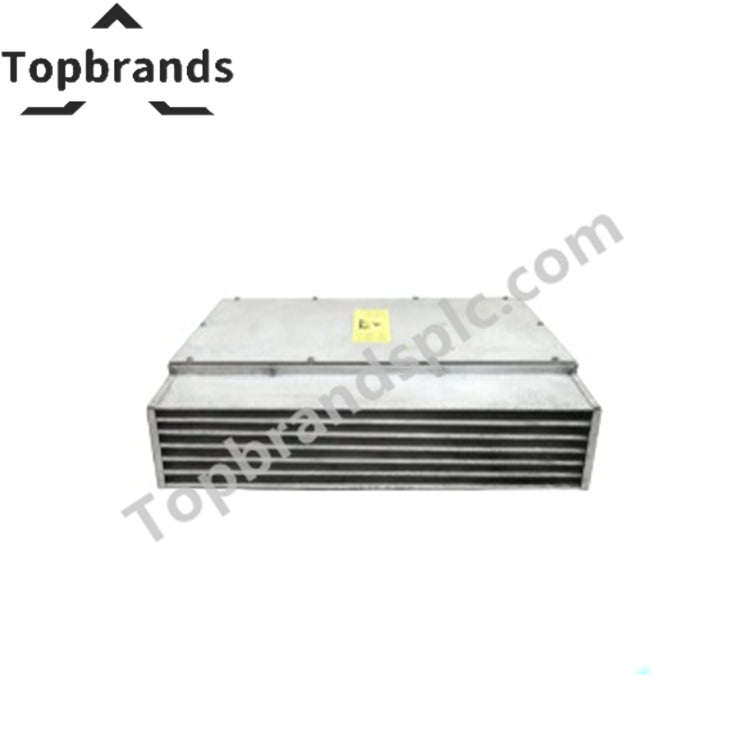

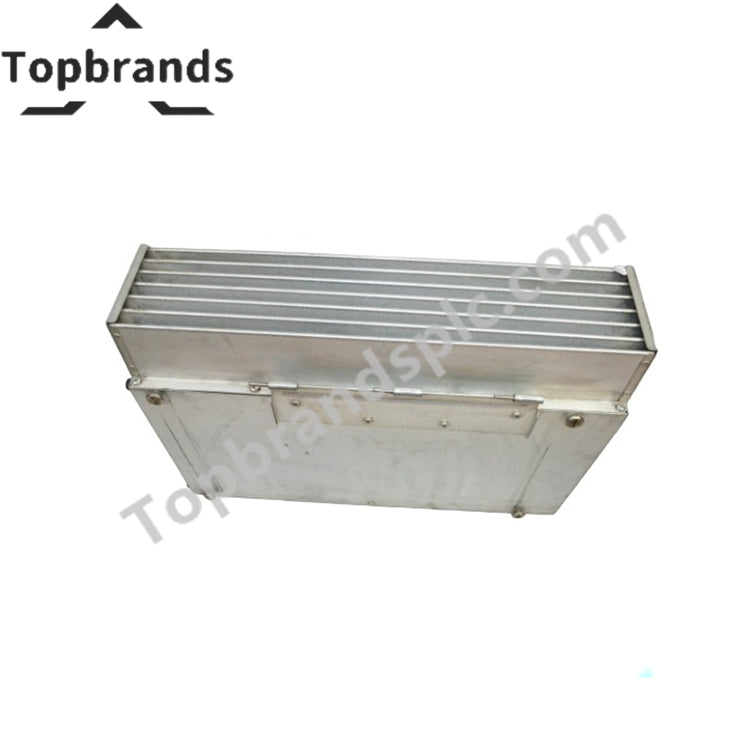

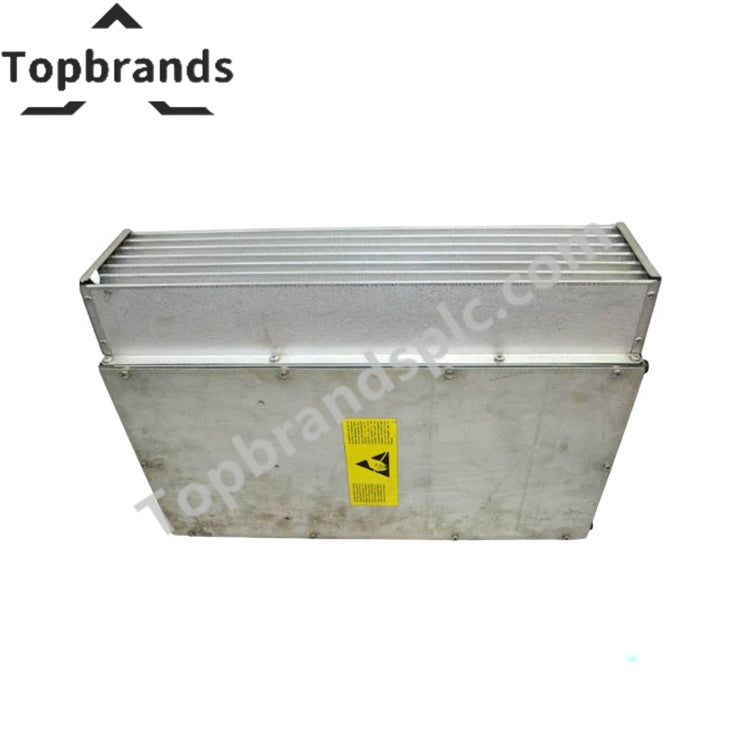

InquiryABB 3HAC9710-1 Heat Exchanger Unit
The ABB 3HAC9710-1, also cataloged as the 3HAC97101 heat exchanger unit, operates as a closed-loop radiator assembly for thermal management in ABB S4C+ and early IRC5 robot controller cabinets.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3HAC9710-1 / 3HAC97101 |
| Brand | ABB |
| Origin | Sweden |
| Weight | ~2.54–2.56 kg (5.6 lbs) |
| Dimensions | Length ~54.6 cm (21.5 in) |
| Operating Temp | Not specified |
| Device Type | Heat exchanger unit / radiator assembly |
| System Compatibility | ABB S4C+ and early IRC5 controller cabinets |
| Material Composition | Stainless steel/aluminum alloy fins |
| Cooling Method | Closed-loop air exchange with integrated fan |
I/O Density Scaling
The 3HAC9710-1 integrates a compact multi-channel heat exchange grid with a continuous-duty cooling fan. This design isolates cabinet internals from ambient dust and moisture while maintaining stable thermal conditions. By reducing thermal stress, the unit supports higher I/O density scaling and ensures deterministic operation of robotic controllers. Corrosion-resistant fin alloys provide durability in machining, welding, and high-ambient shop floor environments.
Frequently Asked Questions
Q: Can the heat exchanger be replaced while the cabinet is energized? A: No, power should be isolated before replacement to prevent airflow disruption and electrical hazard.
Q: How does the exchanger interact with cabinet sensors? A: It complements internal thermal sensors, allowing the controller to monitor heat dissipation and trigger alarms if cooling performance degrades.
Q: Is firmware or configuration required? A: No, the unit is a passive mechanical/electrical assembly with fixed cooling characteristics.
Field Installation Guidelines
- Mount the exchanger securely within the controller cabinet to ensure airflow alignment.
- Verify fan orientation to maintain closed-loop circulation.
- Ensure clearance around fin surfaces for unobstructed heat transfer.
- Ground the housing to reduce EMI coupling.
- Isolate system power before installation or replacement.
-
