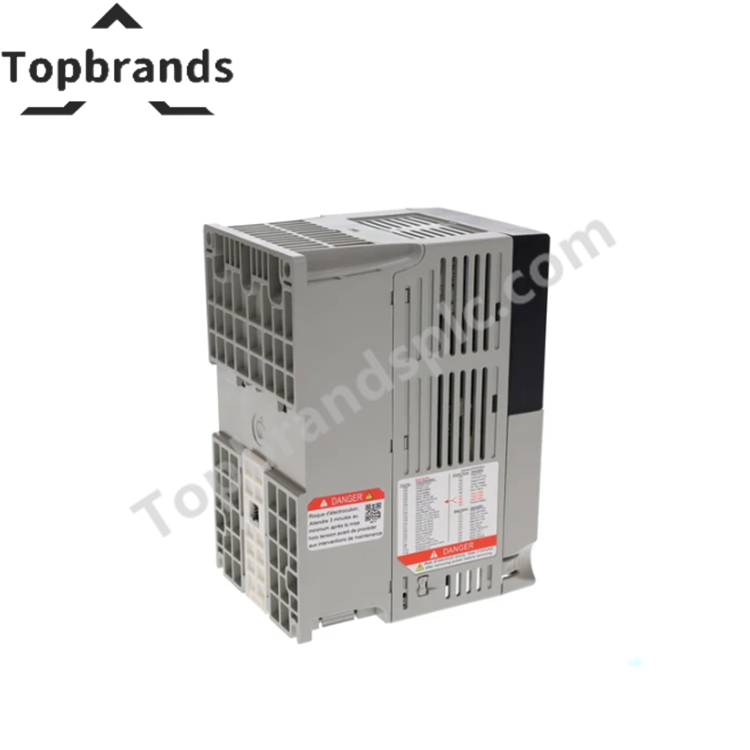

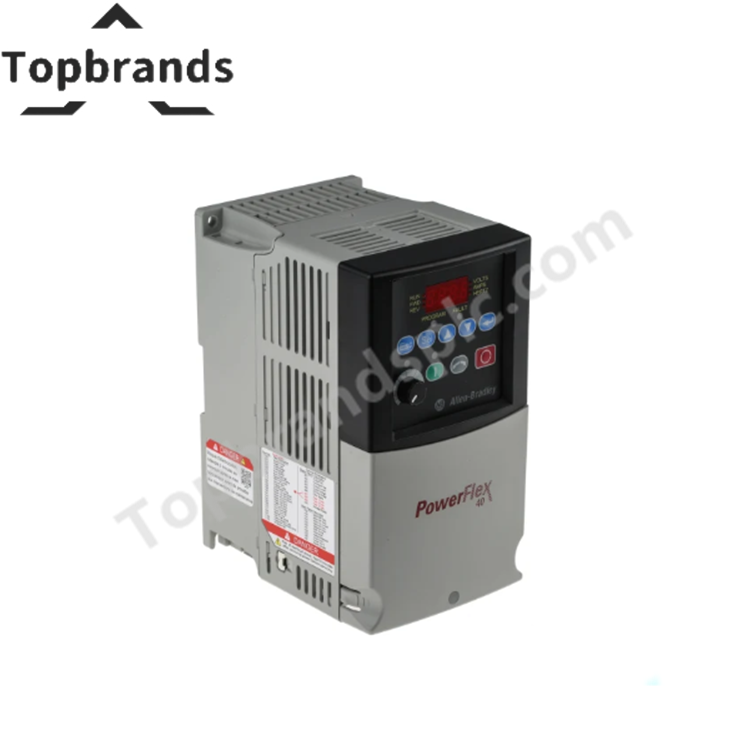

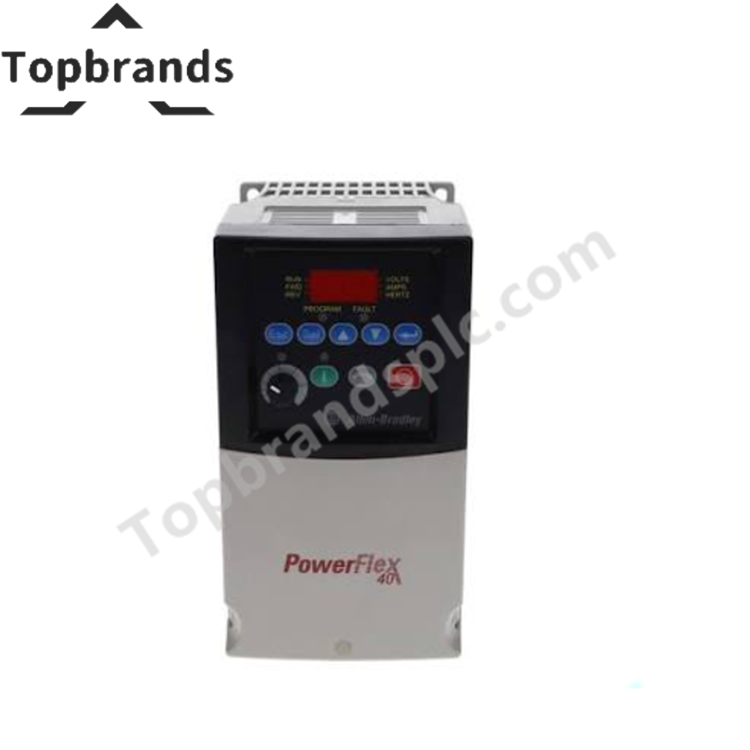

Allen-Bradley 22B-D2P3N104 PowerFlex 40 AC Drive

The Allen-Bradley 22B-D2P3N104, also cataloged as the 22B-D2P3N104 AC Drive, operates as a dedicated hardware component for variable frequency speed control and sensorless vector motor execution within PowerFlex 40 automation networks.

Hardware Specifications

Deterministic Backplane & I/O Density Scaling

The PowerFlex 40 architecture combines high-density Sensorless Vector Control (SVC) and Volts per Hertz (V/Hz) motor regulation with deterministic speed scanning capabilities across 100:1 speed ranges. Backplane communication velocity supports rapid pulse width modulation update cycles, delivering 150% starting torque at 1.0 Hz. High-density terminal execution ensures dynamic response for localized acceleration profiles while housing integrated braking IGBT circuitry for high-duty cycling without increasing physical enclosure footprint.

Frequently Asked Questions

Q: Does the 22B-D2P3N104 unit include an integrated dynamic braking resistor circuit?

A: The drive contains an internal dynamic braking transistor (IGBT) denoted by the '4' suffix, but requires an external braking resistor connected across the DB terminals to dissipate excess regenerative energy.

Q: What are the primary motor control algorithms supported by this drive configuration?

A: The drive natively supports Volts per Hertz (V/Hz) control and Sensorless Vector Control (SVC), providing torque production up to 150% at 1.0 Hz low-frequency operation.

Q: How is thermal regulation managed within the Frame Size B IP20 chassis?

A: Heat dissipation is maintained via an internal forced-air cooling fan, requiring standard panel installation with vertical airflow clearances to operate reliably up to 50 deg C ambient temperatures.

Field Installation Guidelines

• Mount the drive vertically inside a protected NEMA/IP rated enclosure on standard 35 mm DIN rail or mounting plate, preserving a minimum top/bottom clearance of 120 mm (4.7 in) for optimal forced-air circulation.

• Run 3-phase 380-480 VAC supply lines directly to input terminals U, V, W using copper conductors rated for 75 deg C, maintaining physical separation between mains input power and motor output wires.

• Connect motor leads to output terminals T1, T2, T3 using shielded four-conductor motor cable, grounding the cable shield mesh at the drive ground bus terminal to suppress high-frequency electromagnetic interference.

• Attach a heavy-gauge copper grounding wire directly from the chassis grounding terminal to the main panel enclosure earth bar to maintain surge immunity and full compliance with industrial noise rejection standards.
